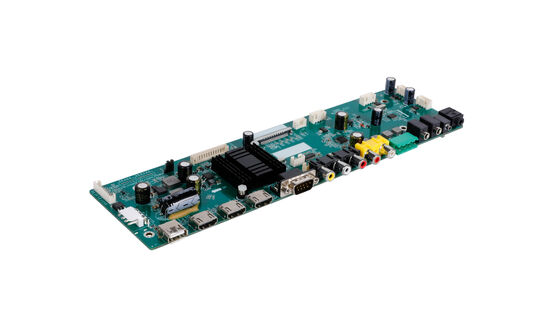

6 Layer 1.6 mm FR TG150 HASL Electronic PCBA Television Main Board

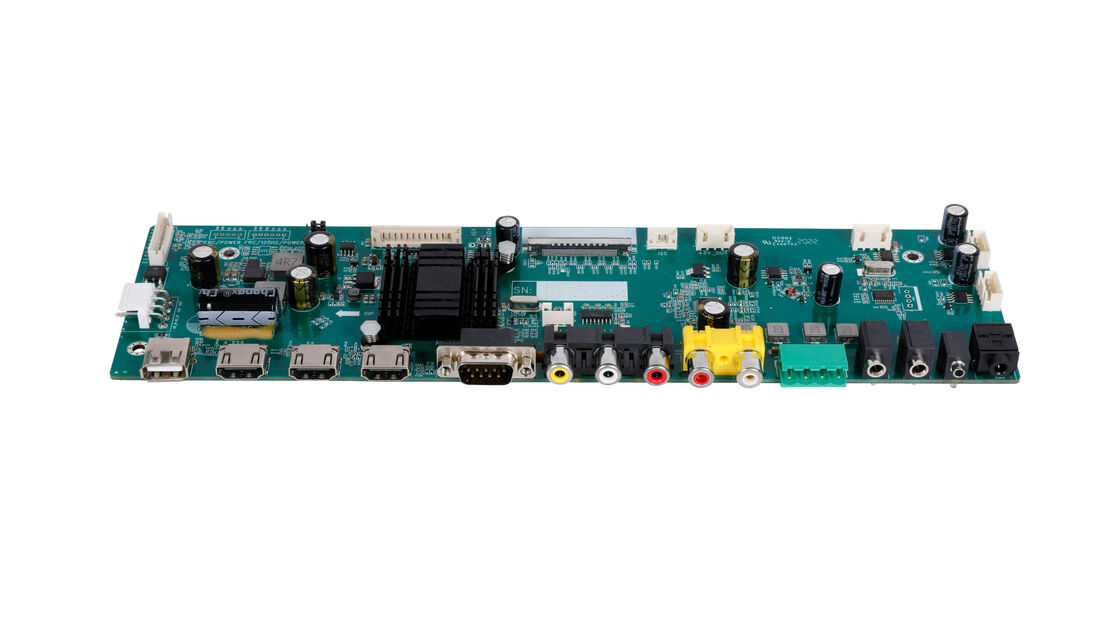

6 Layer 1.6 mm FR TG150 HASL Electronic PCBA Television Main Board

MOQ:	1
Price:	Inquiry Us
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

6 Layer

Base Material:

FR4

Min. Component Size:

0201

PCB Thickness:

1.5mm

Pin Space:

0.1mm

Surface Finish:

Immersion Gold

Testing Method:

Flying Probe, ICT, Functional Test,AOI

Application:

Television Main Board

Highlight:

6 layer FR4 PCBA board

1.6mm TG150 television main board

HASL electronic PCBA with warranty

Product Description

6 Layer 1.6mm FR TG150 HASL Electronic PCBA Television Main Board

This assembled printed-circuit board (PCBA) is manufactured using Hot-Air Solder Leveling (HASL) surface finish technology, designed specifically for television main board applications.

Understanding HASL Electronic PCBA

"HASL Electronic PCBA" refers to an assembled printed-circuit board where the bare PCB substrate features a Hot-Air Solder Leveling (HASL) surface finish applied before component placement and soldering. This designation indicates the specific copper finishing process used rather than describing a new assembly methodology.

DQS PCB Assembly Capabilities

SMT Assembly Specifications

Parameter	Normal Range	Special Capability
PCB Dimensions (L*W)	Min: L≥3mm, W≥3mm Max: L≤800mm, W≤460mm	L＜2mm L＞1200mm, W＞500mm
PCB Thickness (T)	Thinnest: 0.2mm Thickest: 4mm	T＜0.1mm T＞4.5mm
SMT Components	Min size: 0201 (0.6mm0.3mm) Max size: 200125 Thickness: T≤15mm	01005 (0.3mm0.2mm) 200125 6.5mm＜T≤15mm
QFP, SOP, SOJ	Min pin space: 0.4mm	0.3mm≤Pitch＜0.4mm
CSP/BGA	Min ball space: 0.5mm	0.3mm≤Pitch＜0.5mm

DIP Assembly Specifications

Parameter	Normal Range	Special Capability
PCB Dimensions (L*W)	Min: L≥50mm, W≥30mm Max: L≤1200mm, W≤450mm	L＜50mm L≥1200mm, W≥500mm
PCB Thickness (T)	Thinnest: 0.8mm Thickest: 3.5mm	T＜0.8mm T＞2mm

Comprehensive Electronic Manufacturing Services

PCB Prototype Quick Turn PCB Single-Sided PCB Double-Sided PCB Multilayer PCB Rigid PCB Flexible PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB Thick Copper PCB HDI PCB BGA PCB High TG PCB PCB Stencil Impedance Control PCB PCB Assembly High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB Antenna PCB

DQS PCB Assembly Core Competencies

SMT Assembly

13 automatic high-speed SMT lines
5 million points per day capacity
FPC/Double sided mounting
Automatic conformal coating

DIP Assembly

4 dedicated DIP production lines
700,000 post-soldering points per day
Professional DIP plug-in team

SMT Technology

Minimum package: 01005
Minimum pin spacing: 0.3mm
Minimum BGA pitch: 0.3mm

PCBA OEM Services

Full turnkey PCB assembly
Partial turnkey PCB assembly
