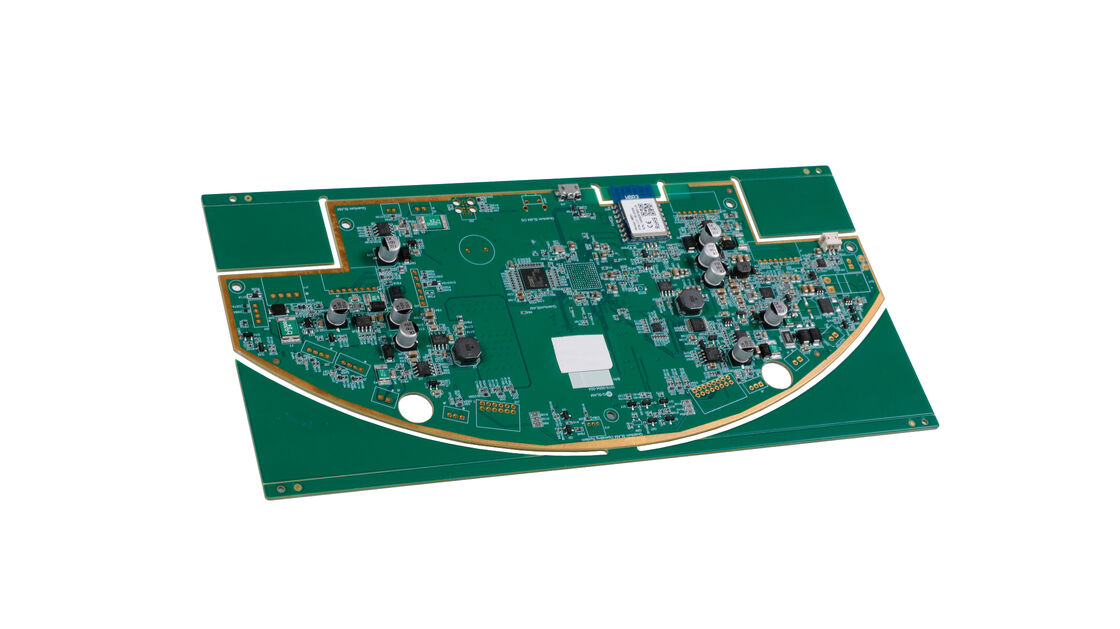

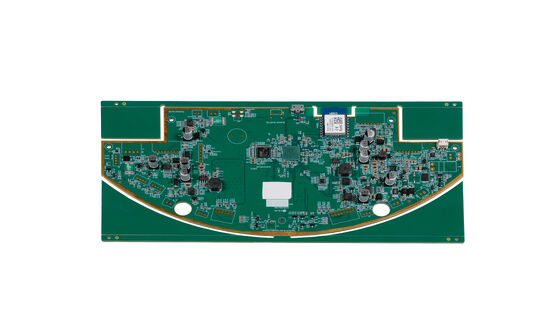

ENIG PCBA refers to a printed-circuit board assembly where the bare board is finished with ENIG (Electroless Nickel Immersion Gold) surface treatment. This process applies a two-layer metallic coating:
Due to its exceptional planarity and corrosion resistance, ENIG PCBA is widely used in high-reliability applications including smartphones, aerospace systems, medical equipment, and telecommunications devices.
| Specification | Normal | Special |
|---|---|---|
| PCB Dimensions (L×W) | Min: L≥3mm, W≥3mm Max: L≤800mm, W≤460mm |
L<2mm L>1200mm, W>500mm |
| PCB Thickness (T) | Thinnest: 0.2mm Thickest: 4mm |
T<0.1mm T>4.5mm |
| SMT Components | Min: 0201 (0.6mm×0.3mm) Max: 200×125 Thickness: T≤15mm |
01005 (0.3mm×0.2mm) 200×125 6.5mm<T≤15mm |
| QFP/SOP/SOJ Pin Spacing | Minimum: 0.4mm | 0.3mm≤Pitch<0.4mm |
| CSP/BGA Ball Spacing | Minimum: 0.5mm | 0.3mm≤Pitch<0.5mm |
| Specification | Normal | Special |
|---|---|---|
| PCB Dimensions (L×W) | Min: L≥50mm, W≥30mm Max: L≤1200mm, W≤450mm |
L<50mm L≥1200mm, W≥500mm |
| PCB Thickness (T) | Thinnest: 0.8mm Thickest: 3.5mm |
T<0.8mm T>2mm |
