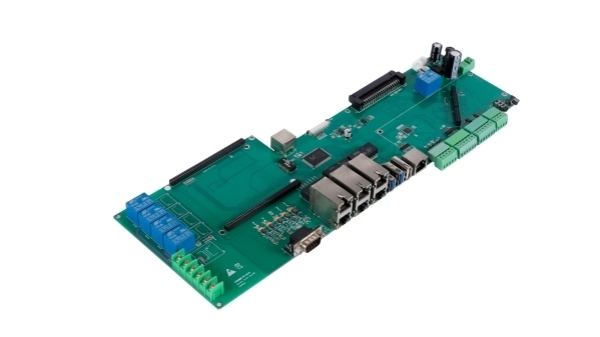

Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance

Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Detail Information
Layer:
8 Layer
Base Material:
FR4
Min. Component Size:
0201
PCB Thickness:
1.5mm
Pin Space:
0.1mm
Surface Finish:
Immersion Gold
Testing Method:
Flying Probe, ICT, Functional Test,AOI
Application:
Home Appliance
Highlight:

Gerber files PCB design

,

PCBA fabrication home appliance

,

Printed circuit board PCBA

Product Description

Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance


What is PCB design?


PCB design, short for Printed Circuit Board design, is the process of creating the physical layout and electrical connections for a circuit board that electronically supports and connects components in electronic devices. It involves both schematic design (the logical representation of the circuit) and layout design (the physical placement of components and routing of electrical traces).


Key Steps in PCB Design:

  1. Schematic Capture
    • Engineers create a schematic diagram using EDA (Electronic Design Automation) tools like Altium, KiCad, or Eagle.
    • This diagram shows how components (resistors, capacitors, ICs, etc.) are electrically connected.
  2. Component Selection
    • Choose real-world parts that match the schematic symbols and meet electrical, thermal, and mechanical requirements.
  3. PCB Layout
    • Place components on the board.
    • Route copper traces to connect pins according to the schematic.
    • Consider signal integrity, power delivery, electromagnetic interference (EMI), and thermal management.
  4. Design Rule Check (DRC)
    • Automated checks ensure the design meets manufacturing and electrical rules (e.g., trace width, spacing, via sizes).
  5. Gerber File Generation
    • Once the design is finalized, Gerber files (industry-standard PCB fabrication files) are generated and sent to a manufacturer.
  6. Prototyping and Testing
    • The fabricated PCB is assembled and tested. Iterations may be needed to fix issues.



♦ DQS's PCB Assembly Capability




Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm




♦ One-Stop Electronic Manufacturing Including


 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB



Core Competencies of DQS PCB Assembly


SMT

Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance 0

DIP

Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance 2 SMT Technology Gerber Files Printed Circuit Board PCBA Design and Fabrication for Home Appliance 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm


  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
