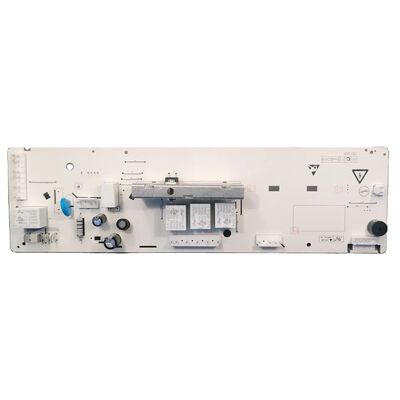

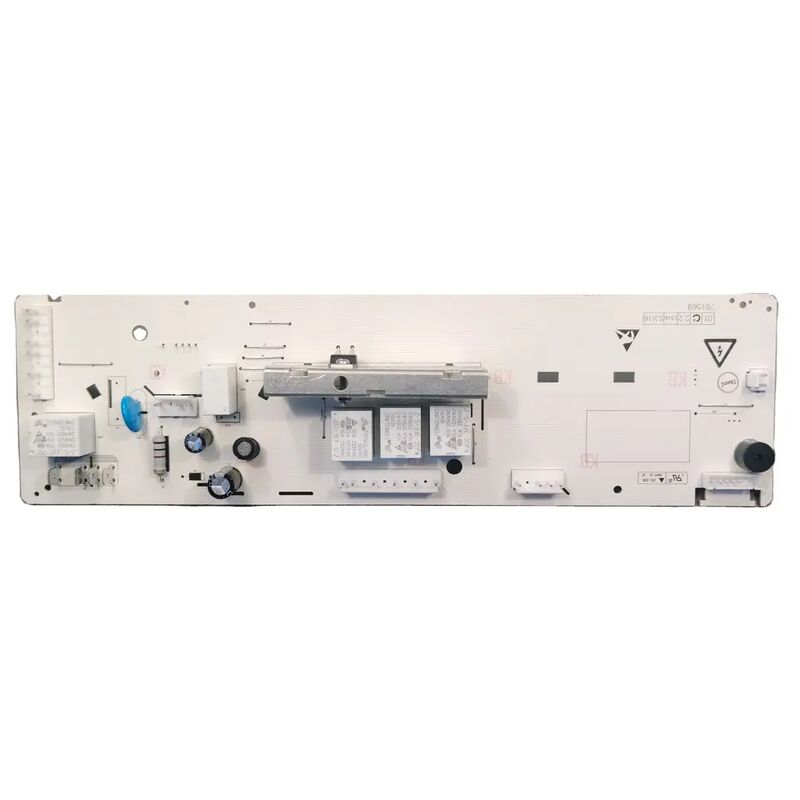

IATF16949 Factory Customized Washing Machine PCB Board Assembly

MOQ:	1
Payment Terms:	T/T
Supply Ability:	Post-soldering 700,000 points/day

Detail Information

Product Description

Detail Information

Certification:

ISO, UL, IPC, Reach

Layer:

8 Layer

Material:

FR4

Board Thickness:

0.2-10mm

Surface Finish:

Immersion Gold

Pin Space:

0.2mm

Application:

Washing Machine

Supply Ability:

Post-soldering 700,000 points/day

Highlight:

IATF16949 washing machine PCB board

customized washing machine PCB assembly

washing machine PCB board with warranty

Product Description

IATF16949 Factory Customized Washing Machine PCB Board Assembly

DQS Electronic Group is one of the leading EMS companies in China, providing comprehensive PCB design, manufacturing, assembly services, and testing. We welcome your Gerber files for free quotation.

PCB Assembly Services

Turnkey PCB Assembly: Complete service including PCB fabrication, component sourcing, and assembly
Partial (Consignment) Assembly: Customer provides components; we handle soldering and assembly
Prototype Assembly: Low-volume assembly for design testing and validation
High-Volume Production: Mass production for commercial devices and large-scale manufacturing

Technical Parameters

PCB Assembly Capability	Normal	Special
SMT Assembly
PCB Specification - Length and Width (L*W)	Minimum: L≥3mm, W≥3mm Maximum: L≤800mm, W≤460mm	L＜2mm L＞1200mm, W＞500mm
Thickness (T)	Thinnest: 0.2mm Thickest: 4mm	T＜0.1mm T＞4.5mm
SMT Components Specification - Outline Dimension	Min size: 0201(0.6mm0.3mm) Max size: 200125	01005(0.3mm0.2mm) 200125
Component Thickness	T≤15mm	6.5mm＜T≤15mm
QFP, SOP, SOJ (multi pins) - Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
CSP/BGA - Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly
PCB Specification - Length and Width (L*W)	Minimum: L≥50mm, W≥30mm Maximum: L≤1200mm, W≤450mm	L＜50mm L≥1200mm, W≥500mm
Thickness (T)	Thinnest: 0.8mm Thickest: 3.5mm	T＜0.8mm T＞2mm
