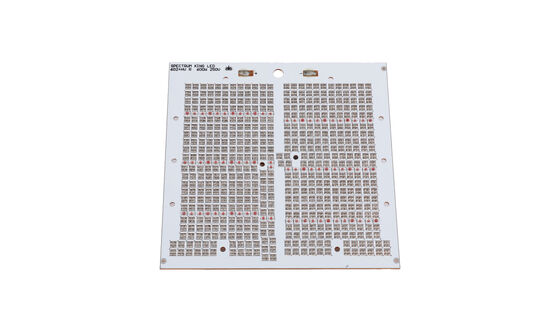

2.0mm Single Sided Aluminum PCBA for Film Light/Stage Light

2.0mm Single Sided Aluminum PCBA for Film Light/Stage Light

MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

1 L

Material:

Board Thickness:

2.0mm

Surface Finish:

OSP

Pin Space:

0.25mm

Application:

LED Lighting

Highlight:

2.0mm aluminum PCBA

single sided stage light PCB

film light aluminum circuit board

Product Description

2.0mm Single Sided Aluminum PCBA for Film Light/Stage Light

What is Lighting PCB Assembly?

Lighting PCB Assembly is a specialized electronic assembly that integrates circuit boards with lighting components (such as LEDs and drivers) and control systems. It serves as the core functional unit in diverse lighting applications, combining electrical connectivity, thermal management, and intelligent control to enable efficient, durable, and feature-rich lighting solutions.

Features of Lighting PCBA

Intelligent control: Supports intelligent sensing (automatic switching when a person approaches) and remote dimming, timing, scene presets, and other functions. Can achieve intelligent linkage through mobile phones or voice control.
Dimming and speed regulation: Uses advanced dimming and speed regulation technology, allowing precise adjustment of light intensity and equipment operation speed for optimal comfort.
High sensitivity and accuracy: Designed with careful research and development to ensure high sensitivity and accurate detection of human body movements.
Elegant appearance design: Harmonizes with surrounding environments and complements interior decoration aesthetics.

Applications of Lighting PCBA

Home Lighting: Various household lamps including chandeliers, wall lamps, and table lamps equipped with intelligent control capabilities.
Commercial Lighting: Widely used in shopping malls, hotels, office buildings, and other commercial spaces with scene and time-based lighting control.
Public Lighting: Lighting facilities in streets, parks, squares, and other public areas with centralized control and intelligent management for improved efficiency and energy savings.

Technical Parameters

PCB Assembly Capability

Item	Normal	Special
SMT Assembly	PCB Specification
	Length and Width (L*W)
	Minimum	L≥3mm, W≥3mm	L＜2mm
	Maximum	L≤800mm, W≤460mm	L＞1200mm, W＞500mm
	Thickness (T)
	Thinnest	0.2mm	T＜0.1mm
Thickest	4mm	T＞4.5mm
SMT Components Specification	Outline Dimension
	Min size	0201 (0.6mm*0.3mm)	01005 (0.3mm*0.2mm)
	Max size	200*125	200*125
	Component thickness	T≤15mm	6.5mm＜T≤15mm
	QFP,SOP,SOJ (multi pins)
Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
CSP/BGA
Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly	PCB Specification
	Length and Width (L*W)
	Minimum	L≥50mm, W≥30mm	L＜50mm
	Maximum	L≤1200mm, W≤450mm	L≥1200mm, W≥500mm
	Thickness (T)
Thinnest	0.8mm	T＜0.8mm
Thickest	3.5mm	T＞2mm
