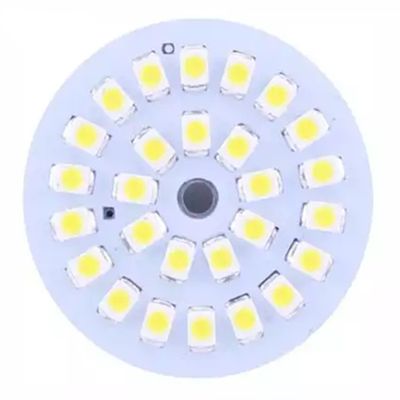

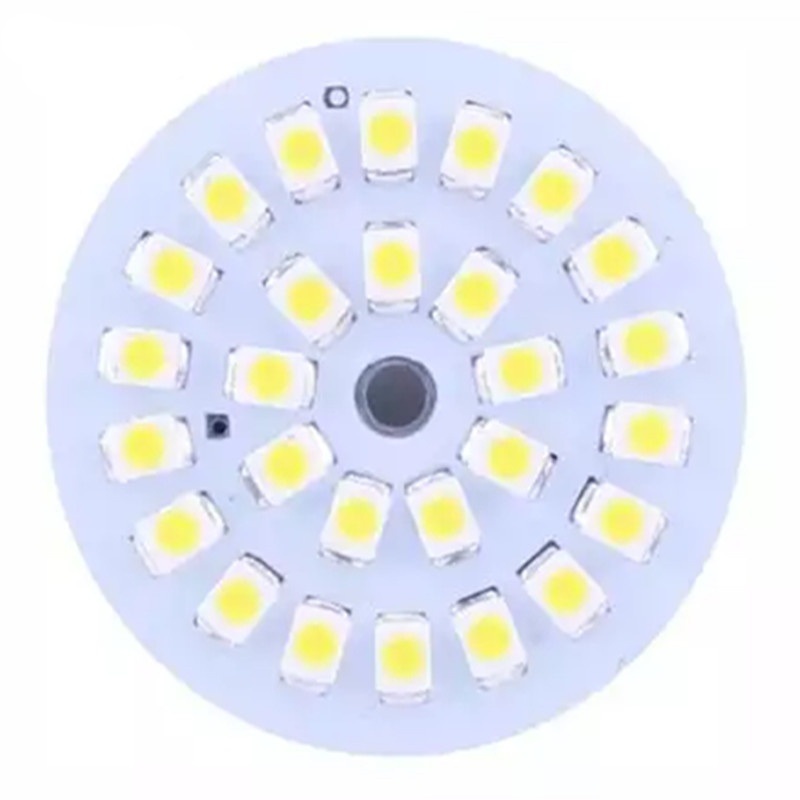

LED PCB Assembly refers to the process of mounting, soldering and electrically connecting light-emitting-diode (LED) packages and their driver/control components onto a printed circuit board (PCB) that has been specially designed for high heat dissipation, so that the finished module can be powered and emit light immediately. Unlike conventional PCBA, LED PCB Assembly focuses on opto-thermal-electrical co-design:
| PCB Assembly Capability | Normal | Special |
|---|---|---|
| SMT Assembly PCB(used for SMT) specification |
||
| Length and Width (L*W) | Minimum: L≥3mm, W≥3mm Maximum: L≤800mm, W≤460mm |
L<2mm L>1200mm, W>500mm |
| Thickness (T) | Thinnest: 0.2mm Thickest: 4mm |
T<0.1mm T>4.5mm |
| SMT components specification | ||
| Outline Dimension | Min size: 0201(0.6mm*0.3mm) Max size: 200*125 |
01005(0.3mm*0.2mm) 200*125 |
| Component thickness | T≤15mm | 6.5mm<T≤15mm |
| QFP,SOP,SOJ (multi pins) | Min pin space: 0.4mm | 0.3mm≤Pitch<0.4mm |
| CSP/BGA | Min ball space: 0.5mm | 0.3mm≤Pitch<0.5mm |
| DIP Assembly PCB specification |
||
| Length and Width (L*W) | Minimum: L≥50mm, W≥30mm Maximum: L≤1200mm, W≤450mm |
L<50mm L≥1200mm, W≥500mm |
| Thickness (T) | Thinnest: 0.8mm Thickest: 3.5mm |
T<0.8mm T>2mm |
