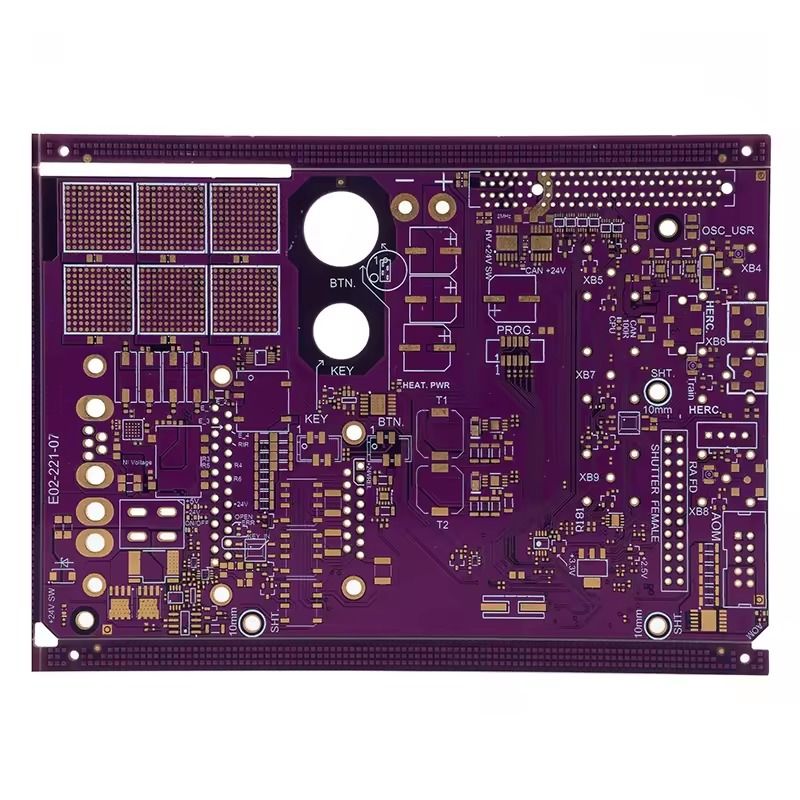

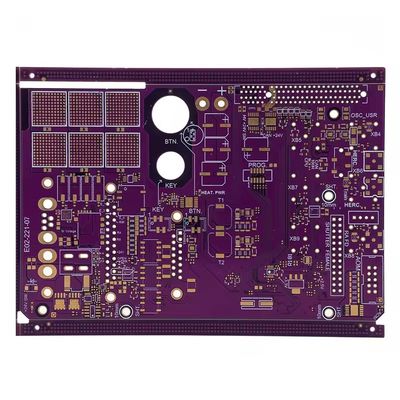

Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias

Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias

MOQ: 1
Price: Contact Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
10 Layers
Material:
Fr4
Thickness:
2.0 Mm
Construction:
2+N+2
Min. Line Width/Space:
0.1/0.1mm
Surface Treatment:
Immersion Gold
Type:
Customizable
Application:
Medical Device
Standard:
UL&IPC Standard &ISO
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Half Plating Vias interconnect pcb

,

0.4mm interconnect pcb

,

custom pcb boards HDI

Product Description



10 Layer Multilayer HDI Circuit Board 0.4mm Half Plating Vias PCB





♦ What ​​is Blind Hole in PCBs?



Half Plating Vias​​ (also called ​​Partial Plating Vias​​ or ​​Non-Through Plating Vias​​) are a type of via structure used in printed circuit board (PCB) design where the conductive plating does not fully extend through the entire via hole.



​​Key Characteristics:​​

    1. ​​Partial Copper Plating​​:

      • Unlike standard ​​fully plated through-hole vias​​, half-plated vias have copper plating only on one side or a portion of the via wall, leaving the other side unplated or partially plated.
    2. ​​Controlled Depth Plating​​:

      • The plating may stop at a certain depth, either by laser drilling, controlled electroplating, or plugging material (e.g., resin).
    3. ​​Common Applications​​:

      • ​​Blind/Buried Vias​​: Used in HDI (High-Density Interconnect) PCBs to connect inner layers without passing through the entire board.
      • ​​Via-in-Pad Designs​​: Helps prevent solder wicking into the via during assembly.
      • ​​RF/Microwave PCBs​​: Reduces parasitic capacitance and improves signal integrity.
      • ​​Thermal Management​​: Used in thermal vias to control heat dissipation.

Manufacturing Methods:​

    • ​​Laser Drilling + Plating​​: Laser creates a cavity, followed by selective plating.
    • ​​Plugging & Partial Plating​​: Filling part of the via with dielectric material before plating.
    • ​​Sequential Lamination​​: Used in HDI PCBs to create buried or blind half-plated vias.







Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 0 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 1 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 2









♦ ​​​​Comparison with Other Via Types?​



​Via Type​ ​Plating Coverage​ ​Usage​
​Through-Hole Via​ Fully plated (entire hole) Standard PCBs
​Blind Via​ Plated from surface to inner layer HDI PCBs
​Buried Via​ Plated between inner layers Multilayer PCBs
​Half Plating Via​ Partially plated (one side or depth-controlled) Specialized designs







♦ ​​Conclusion

Half plating vias are an advanced PCB design technique used to optimize space, signal performance, and manufacturability in complex multilayer boards, especially in high-frequency and miniaturized electronics.







Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

士0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm







One-Stop PCBs Solution



Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 3 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 4 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 5 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 7 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 8 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 9 Custom Multilayer HDI Interconnect PCB Circuit Board 0.4mm Half Plating Vias 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
