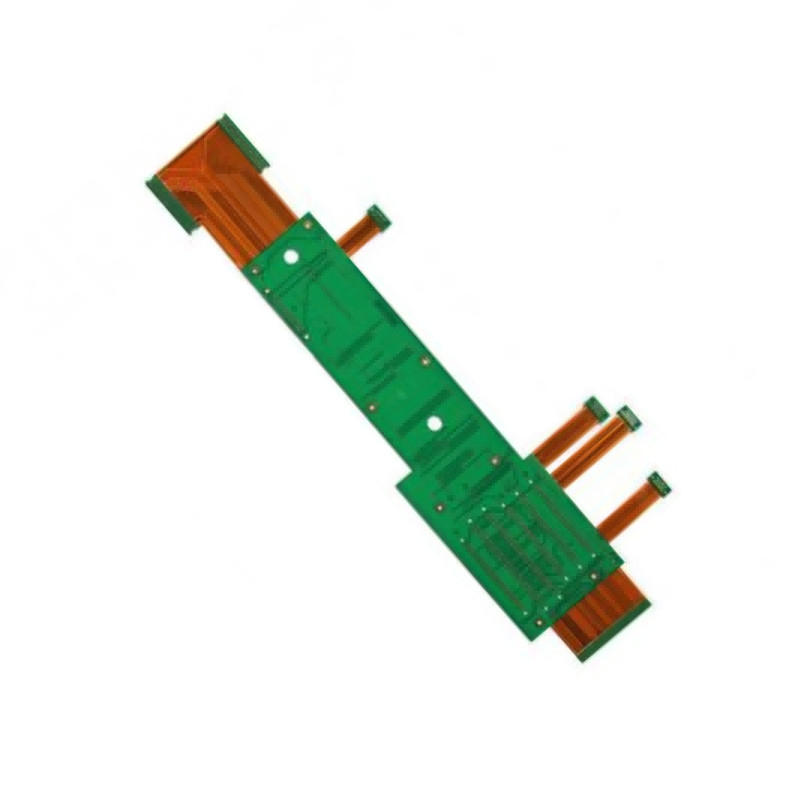

FR4 Material Rigid Flex PCB Board For Industrial Electronic Cigarette RoHS certified

rigid flex board electronic cigarette rigid flex PCB Industrial rigid flex pcb

What is a Rigid Flex PCB?

Space Saving
Often, the designs that call for a rigid flex PCB is one where space is a luxury. For example, handheld thermal scanners can benefit from a rigid flex PCB design as there isn’t much space to fit in wire harnesses and high profile connectors. Instead, with the interconnecting circuit built-in on the flexible substrate, you’ll have more space to route the traces around.

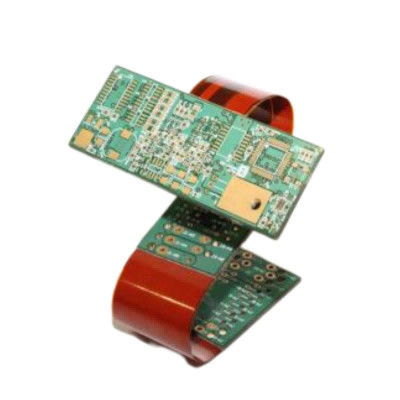

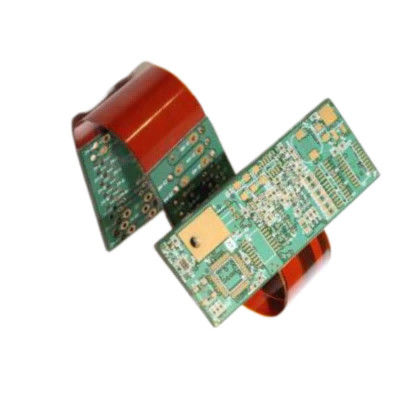

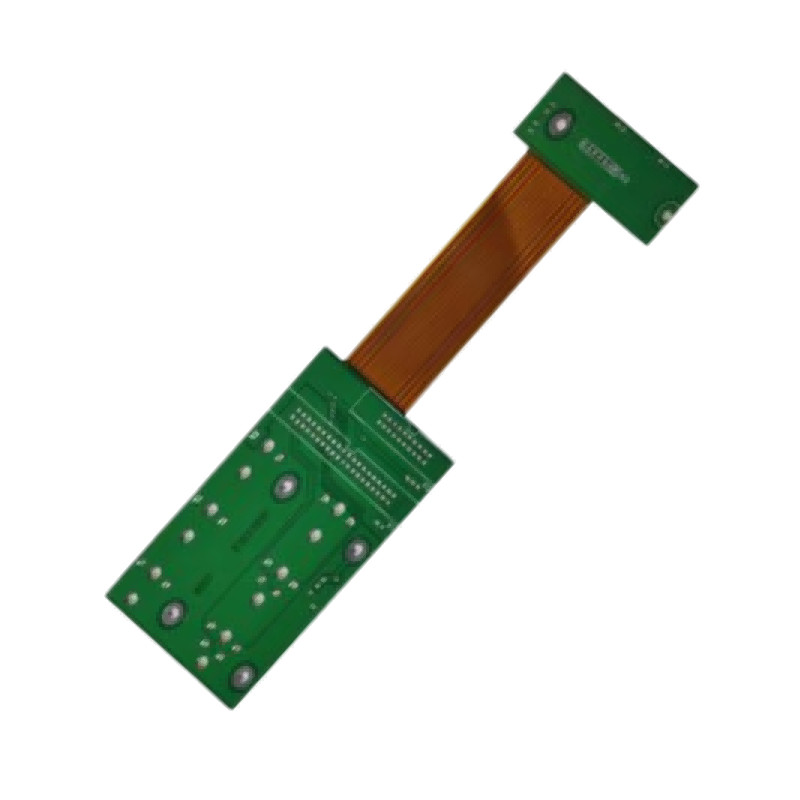

Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application.

Parameters

Layers: 6L rigid flex pcb

Board Thinkness:0.69mm+/-0.1mm

PCB thickness in flex section:0.5mm+/-0.05mm

Base Material:PI+FR4pp

Min laser Holes:0.075mm(3mil)

Min mechanical Holes:0.15mm

Minimum Line Width/Clearance:0.046mm/0.046mm( 1.8mil/1.8mil)

Minimum Clearance between Inner Layer PTH and Line: 0.175mm

Size:160.92mm×145mm

Aspect Ratio:4.6 : 1

Surface treatment:ENIG

Speciality: rigid flex pcb multilayer fpc HDI Any-Layer PCBs stacked vias, Fine circuit 1.8mil, High Density Interconnect PCB 1.8mil/1.8mil,Laser via copper plated shut

Differential impedance 100+7/-8Ω

Applications: Medical stimulator

YS Rigid Flex PCB manufacturing capabilities overview

FQA

1. Do you offer double-layer flexible PCB?
Yes, we make single layer flexible PCB, double sided flexible PCB, multi-layer flexible PCB, and Rigid-Flex PCBs.

2. Do you provide stiffeners and cover films?
Yes, we provide black PI stiffeners, yellow PI cover films, transparent polyimide films, white overlay, and brown PI copper clad laminates.

3. Do you use adhesive free copper foil base material?
Yes. We have four manufacturing methods for adhesive-free copper foil base materials. We use spray plating, curtain coating, electroless deposition/electrolytic plating, and laminating.

4. What are the minimum and maximum thickness of your adhesive flex PCBs?
Minimum thickness is 2 µm and the maximum is 200 µm.
We ensure high chemical durability and processing compatibility for flexible printed circuits and do not sacrifice its original electrical property, heat-resistant property, and mechanical property.

5. Which IPC standards do you follow?
IPC Standards for Rigid and Flexible PCBs
The list of IPC standards below applies to rigid PCBs and flex circuits. Take note that this list is not exhaustive, and additional IPC standards may need to be considered.
You should consult the ipc.org website for a full list of available IPC standards.
