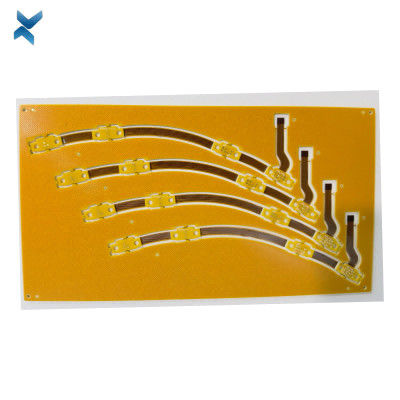

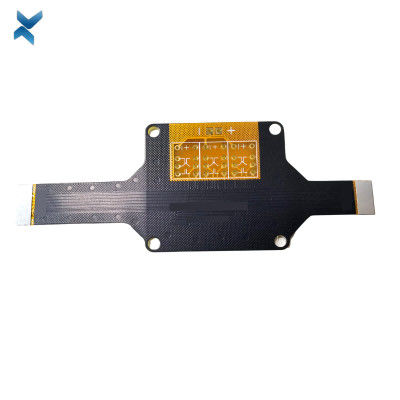

FR-4 Material 8 Layer Rigid Flex PCB Board For Mobile Phone Camera
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | YScircuit |
| Certification | ISO9001,UL,REACH, RoHS |
| Model Number | YS-0032 |
| Minimum Order Quantity | 1 piece |
| Price | 0.03-6$/piece |
| Packaging Details | Foam cotton + carton + strap |
| Delivery Time | 2-8 days |
| Payment Terms | T/T，PayPal, Alibaba pay |
| Supply Ability | 251,000 square meter/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR4 | Size | According To Customer Request |
|---|---|---|---|
| Process | Immersion Gold | Surface Finishing | HASL/HASL-LF/ENIG |
| Min. Line Width | 3mi | Base Material | FR-4 |
| Min. Line Spacing | 0.1mm | Board Thickness | 1.6mm |
| High Light | 8 Layer Rigid Flex PCB Board,FR-4 Rigid Flex PCB Board,Rigid Flex fr4 pcb board |
||
Product Description
flex circuit board rigid flex PCB for mobile phone camera fpc manufacturer
What is a Rigid Flex PCB?
The flexible part of the rigid flex PCB usually features a multilayer built with padded through holes securing the interconnectivity between layers. Rigid flex PCB has grown from merely using the flexible substrate as a replacement for wire harnesses, to having actual subcircuits built on the flexible area itself.
Parameters
Layers: 8L rigid flex pcb
Board Thinkness:0.69mm+/-0.1mm
PCB thickness in flex section:0.5mm+/-0.05mm
Base Material:PI+FR4pp
Min laser Holes:0.075mm(3mil)
Min mechanical Holes:0.15mm
Minimum Line Width/Clearance:0.046mm/0.046mm( 1.8mil/1.8mil)
Minimum Clearance between Inner Layer PTH and Line: 0.175mm
Size:160.92mm×145mm
Aspect Ratio:4.6 : 1
Surface treatment:ENIG
Speciality: rigid flex pcb multilayer fpc HDI Any-Layer PCBs stacked vias, Fine circuit 1.8mil, High Density Interconnect PCB 1.8mil/1.8mil,Laser via copper plated shut
Differential impedance 100+7/-8Ω
Applications: Medical stimulator
YS Rigid Flex PCB manufacturing capabilities overview
| Feature | capabilities | |
| Layer Count | 2-20L | |
| Rigid-Flex Thickness | 0.3mm-5.0mm | |
| PCB thickness in flex section | 0.08-0.8mm | |
| copper Thickness | 1/4OZ-10OZ | |
| Minimum line Width and Space | 0.05mm/0.05mm(2mil/2mil) | |
| Stiffeners | Stainless steel,PI, FR4 etc. | |
| Material | Polyimide Flex+FR4,RA copper, HTE copper, polyimide, adhesive,Bondply | |
| Min mechanical Drilled Size | 0.15mm(6mil) | |
| Min laser Holes Size: | 0.075mm(3mil) | |
| Surface Finish | Suitable Microwave/RF PCB urface finishes: Electroless Nickel, Immersion Gold, ENEPIG, Lead free HASL,Immersion Silver.etc. | |
| Solder Mask | Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc. | |
| Covrelay (Flex Part) | Yellow Coverlay, WhiteCoverlay,Black Coverlay | |
| layer/m² | S＜1㎡ | S＜3㎡ | S＜6㎡ | S＜10㎡ | S＜13㎡ | S＜16㎡ | S＜20㎡ | S＜30㎡ | S＜40㎡ | S＜50㎡ | S＜65㎡ | S＜85㎡ | S＜100㎡ |
| 1L | 4wds | 6wds | 7wds | 7wds | 9wds | 9wds | 10wds | 10wds | 10wds | 12wds | 14wds | 15wds | 16wds |
| 2L | 4wds | 6wds | 9wds | 9wds | 11wds | 12wds | 13wds | 13wds | 15wds | 15wds | 15wds | 15wds | 18wds |
| 4L | 6wds | 8wds | 12wds | 12wds | 14wds | 14wds | 14wds | 14wds | 15wds | 20wds | 25wds | 25wds | 28wds |
| 6L | 7wds | 9wds | 13wds | 13wds | 17wds | 18wds | 20wds | 22wds | 24wds | 25wds | 26wds | 28wds | 30wds |
| 8L | 9wds | 12wds | 15wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 10L | 10wds | 13wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 12L | 10wds | 15wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 14L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 16L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds |
|
FQA
1. Do you offer double-layer flexible PCB?
Yes, we make single layer flexible PCB, double sided flexible PCB, multi-layer flexible PCB, and Rigid-Flex PCBs.
2. Do you provide stiffeners and cover films?
Yes, we provide black PI stiffeners, yellow PI cover films, transparent polyimide films, white overlay, and brown PI copper clad laminates.
3. Do you use adhesive free copper foil base material?
Yes. We have four manufacturing methods for adhesive-free copper foil base materials. We use spray plating, curtain coating, electroless deposition/electrolytic plating, and laminating.
4. What are the minimum and maximum thickness of your adhesive flex PCBs?
Minimum thickness is 2 µm and the maximum is 200 µm.
We ensure high chemical durability and processing compatibility for flexible printed circuits and do not sacrifice its original electrical property, heat-resistant property, and mechanical property.
5. Which IPC standards do you follow?
IPC Standards for Rigid and Flexible PCBs
The list of IPC standards below applies to rigid PCBs and flex circuits. Take note that this list is not exhaustive, and additional IPC standards may need to be considered.
You should consult the ipc.org website for a full list of available IPC standards.
