E Vehicle High Density Interconnect PCB HDI Printed Circuit Boards
Place of Origin | Shenzhen |
---|---|
Brand Name | YScircuit |
Certification | ISO9001,UL,REACH, RoHS |
Model Number | YS-HDI-0015 |
Minimum Order Quantity | 1 piece |
Price | 0.07-5$/piece |
Packaging Details | Foam cotton + carton + strap |
Delivery Time | 2-8 days |
Payment Terms | T/T,PayPal, Alibaba pay |
Supply Ability | 251,000 square meter/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | FR4 | Size | 25*15cm |
---|---|---|---|
Process | Immersion Gold | Surface Finishing | HASL/HASL-LF/ENIG/OSP |
Copper Thickness | 3oz | Application | Engine Control Units |
Color | 0.25mm(10mil) | TG | 175 |
High Light | E Vehicle High Density Interconnect PCB,3oz High Density Interconnect PCB,FR4 HDI Printed Circuit Boards |

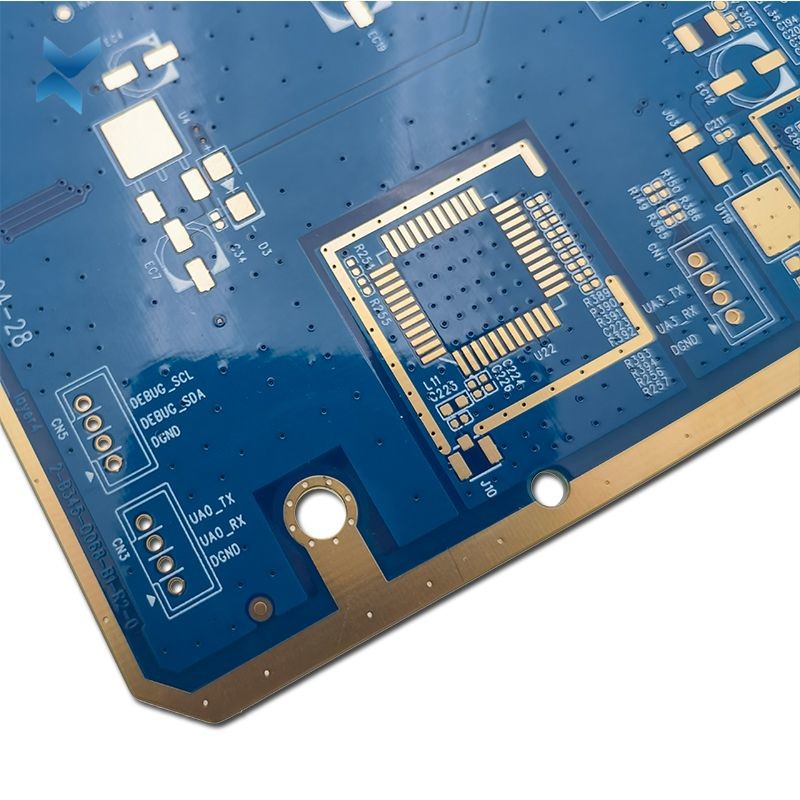

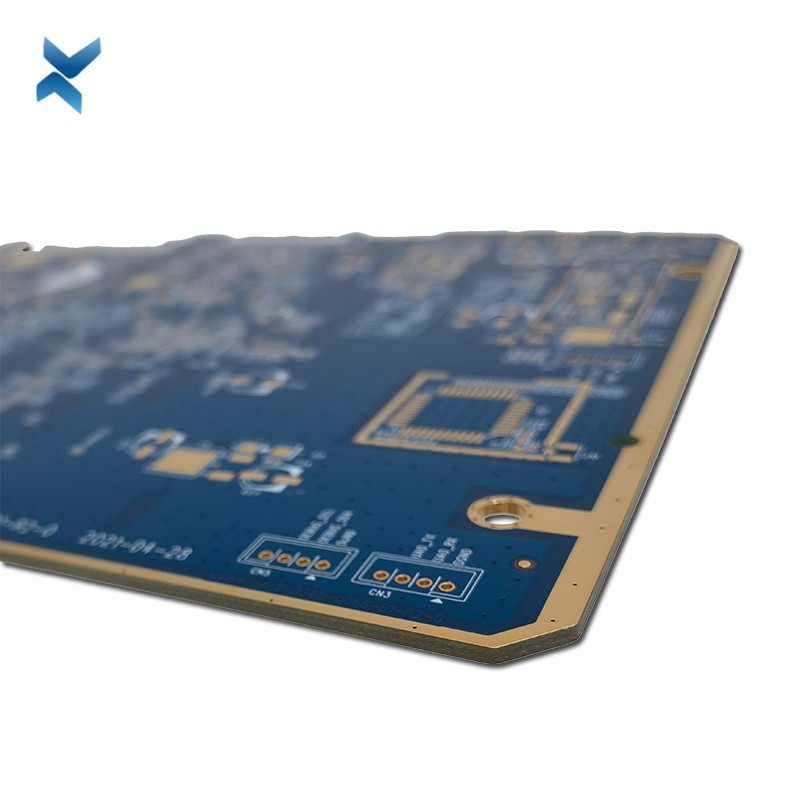

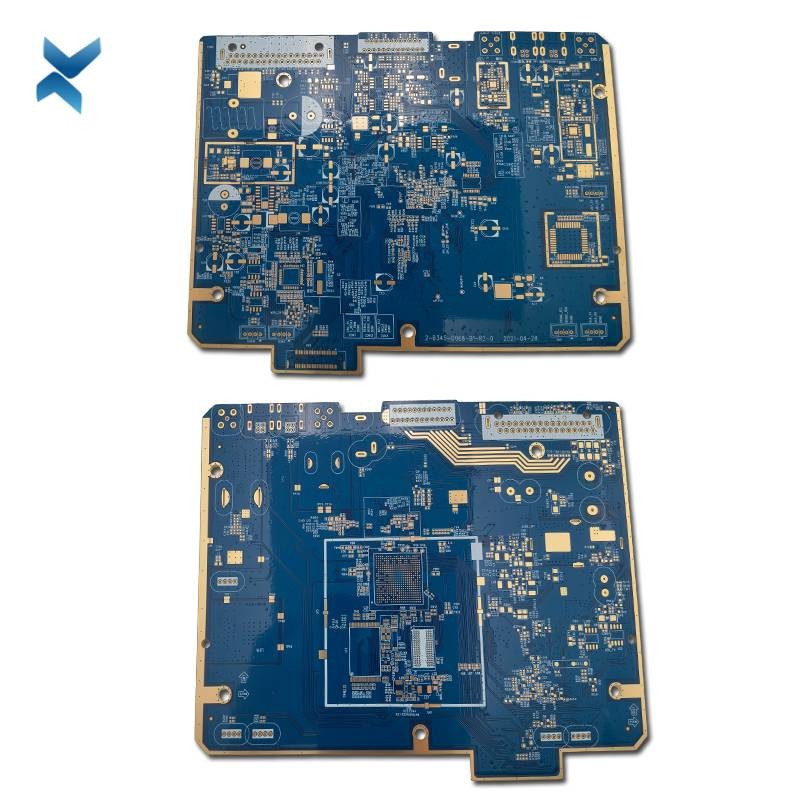

E Vehicle PCB High Density Interconnect PCB HDI Printed Circuit Boards
High Density Interconnect(HDI) PCBs
HDI PCBs are printed circuit boards with a much higher wiring and pad connection density than a traditional PCB. HDI PCBs are characterized by finer lines, closer spaces, smaller capture pads, and Micro-Vias. HDI PCB manufacturing is a growing area since market demand for lightweight and thinner PCBs that can handle High Speed Signals with low signal loss has steadily increased as consumer electronics end-products are produced in smaller form factors.
Our manufacturing facilities have the following HDI PCB manufacturing capabilities:
Buried and Blind Vias, including Micro Vias
NCVF
Copper Fill
Sequential Lamination
3/3 Traces/Space
5% Controlled Impedance tolerance
At the present time, YScircuit can produce sequential lamination boards of up to 40 layers. Our facilities have been fitted with the most advanced Laser Drilling Machines, which are capable of laser drilling holes as small as 0.002 inch (2 mil). With the latest HDI technology, we can produce inner and outer layers with as little as a 3/3 Trace/Space featuring excellent registration.
HDI PCB Matrix:
YScircuit HDI PCB manufacturing capabilities overview |
|
Feature |
capabilities |
Layer Count |
4-60L |
Available HDI PCB Technology |
1+N+1 |
2+N+2 |
|
3+N+3 |
|
4+N+4 |
|
5+N+5 |
|
Any layer |
|
Thickness |
0.3mm-6mm |
Minimum line Width and Space |
0.05mm/0.05mm(2mil/2mil) |
BGA PITCH |
0.35mm |
Min laser Drilled Size |
0.075mm(3nil) |
Min mechanical Drilled Size |
0.15mm(6mil) |
Aspect Ratio for laser hole |
0.9:1 |
Aspect Ratio for through hole |
16:1 |
Surface Finish |
HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective OSP,ENEPIG.etc. |
Via Fill Option |
The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over |
Copper filled, silver filled |
|
Laser via copper plated shut |
|
Registration |
±4mil |
Solder Mask |
Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc. |
layer/m² |
S<1㎡ |
S<3㎡ |
S<6㎡ |
S<10㎡ |
S<13㎡ |
S<16㎡ |
S<20㎡ |
S<30㎡ |
S<40㎡ |
S<50㎡ |
S<65㎡ |
S<85㎡ |
S<100㎡ |
1L |
4wds |
6wds |
7wds |
7wds |
9wds |
9wds |
10wds |
10wds |
10wds |
12wds |
14wds |
15wds |
16wds |
2L |
4wds |
6wds |
9wds |
9wds |
11wds |
12wds |
13wds |
13wds |
15wds |
15wds |
15wds |
15wds |
18wds |
4L |
6wds |
8wds |
12wds |
12wds |
14wds |
14wds |
14wds |
14wds |
15wds |
20wds |
25wds |
25wds |
28wds |
6L |
7wds |
9wds |
13wds |
13wds |
17wds |
18wds |
20wds |
22wds |
24wds |
25wds |
26wds |
28wds |
30wds |
8L |
9wds |
12wds |
15wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
10L |
10wds |
13wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
12L |
10wds |
15wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
14L |
10wds |
16wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
16L |
10wds |
16wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
