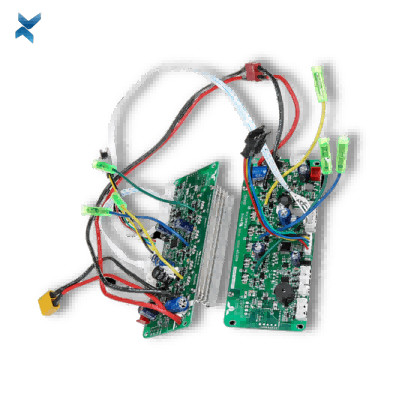

FR4 PCBA Printed Circuit Board Assembly For Electronic Control Module

FR4 PCBA Printed Circuit Board Assembly For Electronic Control Module

OEM Electronic PCBA Printed Circuit Board Assembly For Electronic Control Module

What is PCBA?

PCBA stands for Printed Circuit Board Assembly, it refers to circuit boards assembled with electronic components such as diode, transmitter, capacitors, resistors, and ICs with SMT, DIP, and soldering assembly technology.
All electronic devices have PCBA, and electronic devices are everywhere.
They range from smartphones to microwave ovens and from laptops to cars.

Two Common PCBA Technologies

Surface-Mount Technology(SMT)
It is a technology that mounts electronic components on the surface of a PCB directly.
SMT is suitable for assembling tiny and sensitive components such as transistors onto the circuit board.
This technology helps to save more space as there is no need to make drilling that also benefits to speed up the production progress. In addition, by applying surface-mount tech, the electronic components can be assembled on the surface closely, so both sides of the PCB can be utilized.

Through-Hole Technology(THT)
Another method is Thru-Hole Technology, which is used by people earlier than SMT.
THT is a technology that the electronic components are plugged into the circuit boards through holes, and manufacturers need to solder the extra part of wire on the board.

It takes more time than SMT, but it still has some advantages.
For example, by using through-hole technology, the electronic components are bonded to the board strongly.
Therefore, this technology is suitable for large electronic components such as coils and capacitors, which can withstand high power, high voltage, and mechanical stress.

FQA

Q: What is the shipping cost of assembly order? Is it included in the quotation?
A: It's impossible to estimate shipping weight of assembled boards at quote stage. We'll inform you the shipping price and send over payment link once producton is completed.

Q: What is the expected lead time for a PCBA order?
A: Our standard lead time for PCB assembly orders is around 3-4 weeks, PCB manufatcuring, component sourcing, and assembly will be finished within the lead time.

Q: Where is your target markets?
A: The printed circuit board we manufactured are mainly exported to foreign countries, currently, more than 95% of our electronic board products are shipped to Europe, North America.

Q: How fast do you provide quotes?
A: During normal business hours, Monday-Friday 10am – 6pm, we normally provide quotes within 5-45 minutes. However, sometimes, if the board is complex, we like to send it to our CAM department to verify that we can build the board properly, which adds some time to the process. If you submit your info after hours, one of our sales professionals will provide you with a quote the next business day.

Q: How to place an order?
A: Send us the PO with request (Final project files confirmed) and we will confirm with PI.
The order will be entered into our order system on same day.
Full payment complete,then order confirmed by our accouting department.
The order will be proceed accordingly by our purchasing system.
Sample or photos offered for approval.
Balance payment complete,shipment arranged and tracking will be offered via email.
