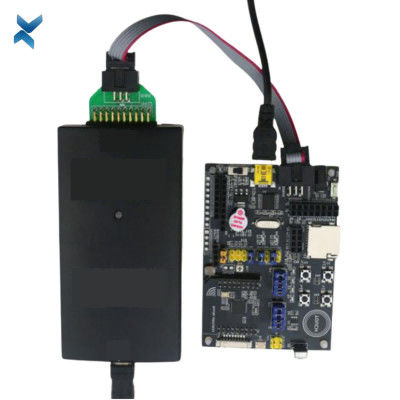

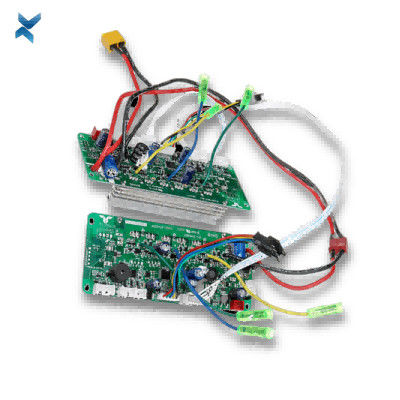

Electronics 2OZ FR4 PCBA Circuit Board Assembly For AC Adapter
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | YScircuit |
| Certification | ISO9001,UL,REACH, RoHS |
| Model Number | YS-PCBA-0017 |
| Minimum Order Quantity | 1 piece |
| Price | 0.17-9$/piece |
| Packaging Details | Foam cotton + carton + strap |
| Delivery Time | 2-8 days |
| Payment Terms | T/T，PayPal, Alibaba pay |
| Supply Ability | 251,000 square meter/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR4+Component Parts | Size | 18*8cm |
|---|---|---|---|
| Process | Immersion Gold And Sliver | Surface Finishing | HASL/HASL-LF/ENIG/OSP |
| Product Name | AC Adapter PCBA | Application | AC Adapter |
| Base Material | FR-4 | Copper Thickness | 2OZ |
| High Light | FR4 PCBA Circuit Board Assembly,2OZ PCBA Circuit Board Assembly,FR4 Electronics PCB Assembly |
||
Product Description
Electronics 2OZ FR4 PCBA Circuit Board Assembly For AC Adapter
Electronics PCBA Assembly OEM Printed Circuit Board For AC Adapter
What Is PCBA? Its Benefits and Difference with PCB?
PCBA stands for Printed Circuit Board Assembly.
Up to this meaning, it’s all fine. But the real problem starts right from here.
Many, in fact, most people don’t understand the true meaning and purpose of the PCBA.
And many would even confuse it with the PCB.
So, we decided to write on what is PCBA.
Of course, it has a close connection with the Printed Circuit Board (PCB).
A PCB refers to an electronic pad designed to transmit electronic signals while dissipating the heat generated due to the digital transmission.
And the PCBA refers to the complete electronic board after all of its components are assembled completely.
It has several incredible benefits that make it a much sought-after element in the communicating and electronics industry.
However, it has key differences with the PCB.
A PCB is void of any electrical components whereas the PCBA refers to the complete board assembly.
|
Capability |
Standard |
|
Certifications: |
ISO 9001: 2015, AS 9100 Rev D, ISO 13485: 2016 |
|
Lead Time: |
1-5 Days, As per the scheduled period |
|
Parts procurement: |
Full Turnkey, Partial Turnkey, and Knitted |
|
Assembly Types: |
Surface Mount (SMT), Thru-hole, Mixed Technology, Single and double-sided SMT/PTH. |
|
Stencils: |
Laser cut stainless steel and Nano-coating |
|
Components: |
Passive components smallest size 0201, Fine pitch components smallest size 8 Mils pitch. |
|
Component packaging: |
Reels, Cut Tape, Tube, and lose parts. |
|
Inspection: |
X-ray analysis, AOI, and Microscope to 20X |
|
Solder Type: |
Leaded and Lead-free/ RoHS compliant |
|
Assembly Surface mount connectors: |
Yes |
|
Wave Soldering: |
Yes |
|
PCB Finish: |
SMOB/HASL, Electrolytic gold, Electroless gold, Electroless silver, Immersion gold, Immersion gold, Immersion tin, and OSP. |
|
Panelized PCB: |
Tab routed, Breakaway tabs, V-scored and Routed + V scored |
|
Rework: |
BGA removal and replacement station, SMT IR rework station, and Thru-hole reworks station. |
|
Design file format: |
Gerber RS-27, 274D, Eagle and Auto CAD's DXF, DWG BOM, and Pick and place a file |
|
layer/m² |
S＜1㎡ |
S＜3㎡ |
S＜6㎡ |
S＜10㎡ |
S＜13㎡ |
S＜16㎡ |
S＜20㎡ |
S＜30㎡ |
S＜40㎡ |
S＜50㎡ |
S＜65㎡ |
S＜85㎡ |
S＜100㎡ |
|
1L |
4wds |
6wds |
7wds |
7wds |
9wds |
9wds |
10wds |
10wds |
10wds |
12wds |
14wds |
15wds |
16wds |
|
2L |
4wds |
6wds |
9wds |
9wds |
11wds |
12wds |
13wds |
13wds |
15wds |
15wds |
15wds |
15wds |
18wds |
|
4L |
6wds |
8wds |
12wds |
12wds |
14wds |
14wds |
14wds |
14wds |
15wds |
20wds |
25wds |
25wds |
28wds |
|
6L |
7wds |
9wds |
13wds |
13wds |
17wds |
18wds |
20wds |
22wds |
24wds |
25wds |
26wds |
28wds |
30wds |
|
8L |
9wds |
12wds |
15wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
|
10L |
10wds |
13wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
|
12L |
10wds |
15wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
|
14L |
10wds |
16wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
|
16L |
10wds |
16wds |
17wds |
18wds |
20wds |
20wds |
22wds |
24wds |
26wds |
27wds |
28wds |
30wds |
30wds |
FQA
Q: Does our PCBA product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
Q: Which items are covered in the quoted price on assembly quotation site?
A: Setup fee, stencil fee, assembly fee, package fee and labor cost.
Q: Do you accept components supplied by customer? Or do you offer assembly service on boards fabricated by another company?
A: Of course. YScircuit can satisfy your needs occurring in every process.
Q: Is there any superiority about YScircuit SMT service?
A: Except for high-quality products, highly automatic and 7*24 online service, the SMT service we offer is the real meaning of One-Stop Shopping Service.
Triune service architecture, namely self-running PCB factories, SMT assembly plant and components mall, ensures the high efficiency.
For example, from components warehouse to SMT plant, it takes only several hours.
Meanwhile, our own factories make our service pretty flexible.
Turn-key, partial turn-key, consigned, merely SMT service…
Any kind of needs can be met at YScircuit.
Besides, thanks to the long-term and stable cooperation with our component suppliers, the price of our components is competitive. Like Resistor, SMD capacitor, Transformer, Diode, ICs, Transmitter...
