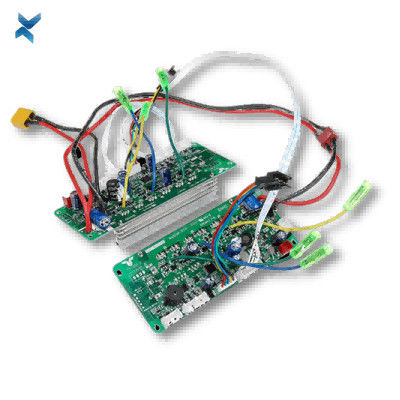

Industry Immersion Gold PCBA Circuit Board And Component Assembly
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | YScircuit |
| Certification | ISO9001,UL,REACH, RoHS |
| Model Number | YS-PCBA-0019 |
| Minimum Order Quantity | 1 piece |
| Price | 0.17-9$/piece |
| Packaging Details | Foam cotton + carton + strap |
| Delivery Time | 2-8 days |
| Payment Terms | T/T，PayPal, Alibaba pay |
| Supply Ability | 251,000 square meter/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR4+Component Parts | Size | 42*30cm |
|---|---|---|---|
| Process | Immersion Gold | Surface Finishing | HASL/HASL-LF/ENIG/OSP |
| Product Name | Comfort Control Units PCBA | Application | Comfort Control Units |
| Base Material | FR-4 | Copper Thickness | 1OZ |
| High Light | Immersion Gold PCBA Circuit Board,FR4 PCBA Circuit Board,1OZ PCBA PCB Assembly |
||
Product Description
Industry Immersion Gold PCBA Circuit Board And Component Assembly
Industry PCBA OEM Circuit Board And Component Assembly For Comfort Control Units
Difference Between the PCBA and PCB
If you are in the electronics, communication device manufacturing, or PCB industry, you have to know the difference between PCBA and PCB.
It would help you pick the right PCB for your purpose.
The printed circuit board is a surface only with insulation and a heat-dissipating layer.
The metal surface sits on top of the dielectric part. It is void of any electrical components.
The PCBA is built on the printed circuit board (PCB).
To prepare the PCBA you have to work over the PCB.
The printed circuit board can be of different kinds.
It depends on the material used to prepare its substrate.
You can find metal, ceramic, or FR4 PCBs.
Also, it can be flexible or rigid as well as single or dual based.
Many manufacturers will outsource the PCB from different companies and finish the PCBA on their own.
Also, only a few companies are capable of completing the assembly of electronic components assembly on the PCB.
Nonetheless, you can depend on us to get your PCB and PCBA done.
YScircuit with 10+ years of useful experience in printed circuit board manufacturing, we also prepare PCBAs.
It will surely cater to your device-making needs.
| Capability | Standard |
| Certifications: | ISO 9001: 2015, AS 9100 Rev D, ISO 13485: 2016 |
| Lead Time: | 1-5 Days, As per the scheduled period |
| Parts procurement: | Full Turnkey, Partial Turnkey, and Knitted |
| Assembly Types: | Surface Mount (SMT), Thru-hole, Mixed Technology, Single and double-sided SMT/PTH. |
| Stencils: | Laser cut stainless steel and Nano-coating |
| Components: | Passive components smallest size 0201, Fine pitch components smallest size 8 Mils pitch. |
| Component packaging: | Reels, Cut Tape, Tube, and lose parts. |
| Inspection: | X-ray analysis, AOI, and Microscope to 20X |
| Solder Type: | Leaded and Lead-free/ RoHS compliant |
| Assembly Surface mount connectors: | Yes |
| Wave Soldering: | Yes |
| PCB Finish: | SMOB/HASL, Electrolytic gold, Electroless gold, Electroless silver, Immersion gold, Immersion gold, Immersion tin, and OSP. |
| Panelized PCB: | Tab routed, Breakaway tabs, V-scored and Routed + V scored |
| Rework: | BGA removal and replacement station, SMT IR rework station, and Thru-hole reworks station. |
| Design file format: | Gerber RS-27, 274D, Eagle and Auto CAD's DXF, DWG BOM, and Pick and place a file |
| layer/m² | S＜1㎡ | S＜3㎡ | S＜6㎡ | S＜10㎡ | S＜13㎡ | S＜16㎡ | S＜20㎡ | S＜30㎡ | S＜40㎡ | S＜50㎡ | S＜65㎡ | S＜85㎡ | S＜100㎡ |
| 1L | 4wds | 6wds | 7wds | 7wds | 9wds | 9wds | 10wds | 10wds | 10wds | 12wds | 14wds | 15wds | 16wds |
| 2L | 4wds | 6wds | 9wds | 9wds | 11wds | 12wds | 13wds | 13wds | 15wds | 15wds | 15wds | 15wds | 18wds |
| 4L | 6wds | 8wds | 12wds | 12wds | 14wds | 14wds | 14wds | 14wds | 15wds | 20wds | 25wds | 25wds | 28wds |
| 6L | 7wds | 9wds | 13wds | 13wds | 17wds | 18wds | 20wds | 22wds | 24wds | 25wds | 26wds | 28wds | 30wds |
| 8L | 9wds | 12wds | 15wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 10L | 10wds | 13wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 12L | 10wds | 15wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 14L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 16L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
FQA
Q: What kind of testing are you?
A: Our fixtures are for Printed Circuit Board Assembly Functional Testing (PCBA FCT), using a bed-of-nails test fixture.
Q: Do you support ICT testing?
A: Not yet, but someday we plan to provide fixtures for ICT and flying-probe like tests.
Q: What's the lead time?
A: Development fixtures are shipped 1-2 weeks after finalizing an estimate.
Depending on the complexity, production fixtures typically ship in 8 - 16 weeks.
Q: Can you source parts for me even if no assembly need?
A: Absolutely please provide us with your BOM or a list we will analysis source make classified packaging attached with lables then send them to you.
we has signed contract with some component suppliers, due to our monthly sales volume is large enough, so they give us big discount.
If you have some component parts is difficult to find, please don't hesitate to send me BOM list. I will try my best to support you.
Q:Where is YScircuit located?
A:Our workshop is in Shenzhen. We ship to worldwide!
