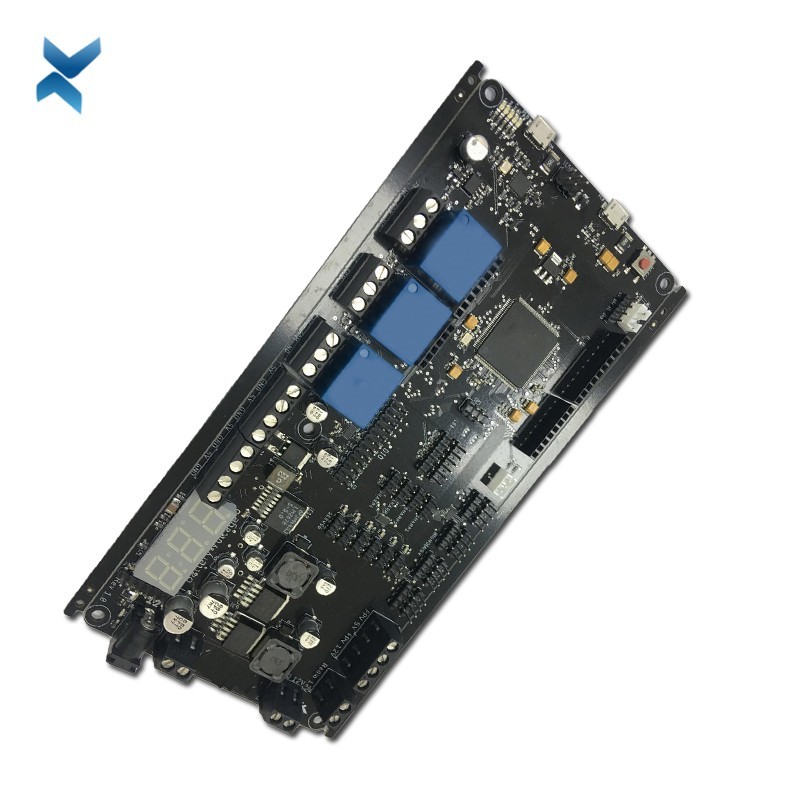

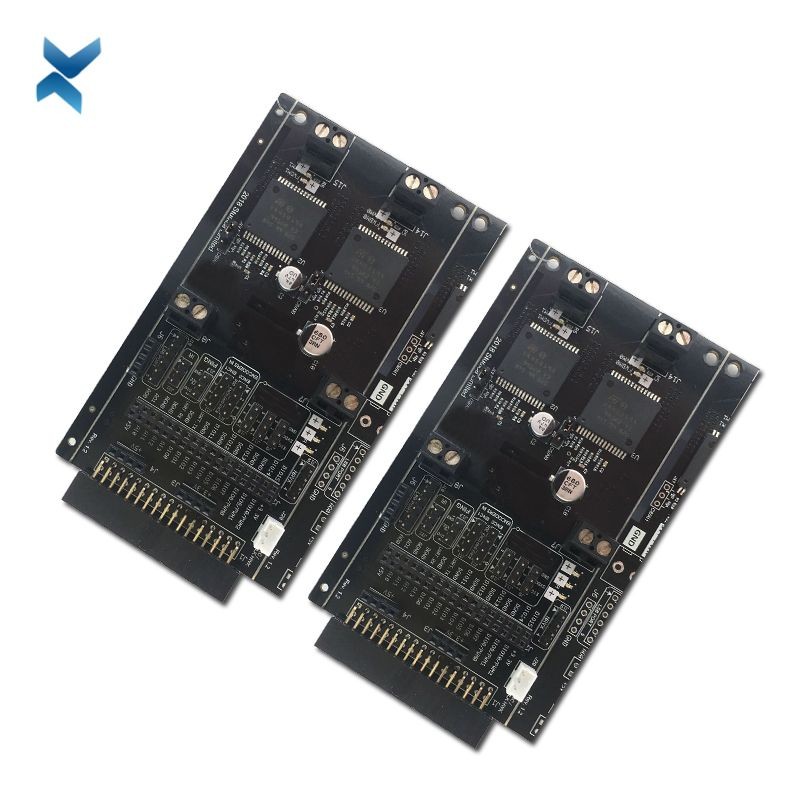

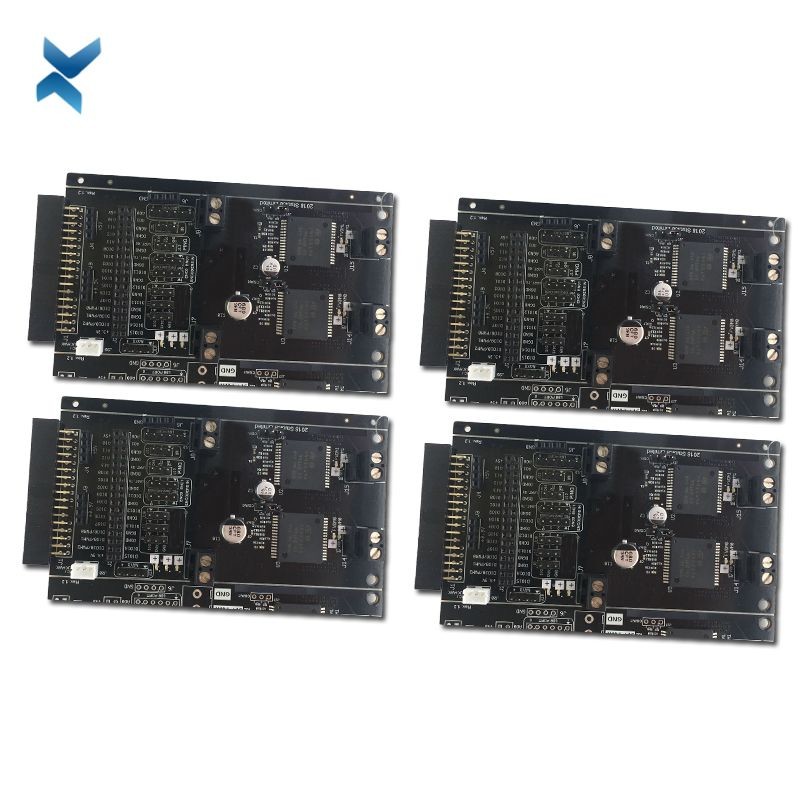

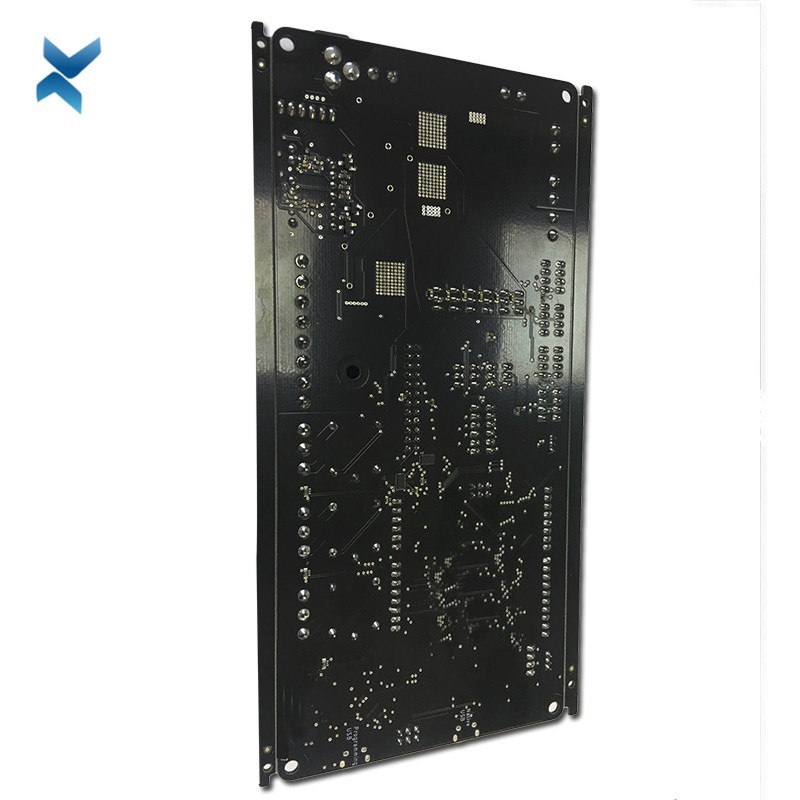

Multilayer Circuit Board PCBA PCB Assembly For Electronics Board
Place of Origin | Shenzhen |
---|---|
Brand Name | YScircuit |
Certification | ISO9001,UL,REACH, RoHS |
Model Number | YSPCBAC-0010 |
Minimum Order Quantity | 1 piece |
Price | 0.04-5$/piece |
Packaging Details | Foam cotton + carton + strap |
Delivery Time | 2-8 days |
Payment Terms | T/T,PayPal, Alibaba pay |
Supply Ability | 251,000 square meter/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | FR4 | Size | According To Customer Request |
---|---|---|---|
Process | Immersion Gold/sliver/Assembly | Surface Finishing | HASL/HASL-LF/ENIG |
Copper Thickness | 0.5OZ-6OZ | Product Name | Circuit Board Assembly |
Application | Consumer Electronics | Type | Electronic Board |
High Light | Multilayer Circuit Board PCBA,Circuit Board PCBA PCB Assembly,Electronics PCBA PCB Assembly |
PCB Factory Print Circuit Board PCBA Custom Multilayer All PCB Sell Assembly Design And Manufacturing
Part 1: What is a PCBA?
Printed Circuit Board Assembly is a term that refers to circuit boards assembled with electronic components like capacitors,resistors, and IC (Integrated Circuit). A PCBA can be a semi-product of anything, from an LED light to an electronic truck. The integration of PCBAs is the system of a complex electrical product. When PCBAs are installed with enclosures, they become box builds or end products.
To ensure that the connection works adequately, materials are welded or inserted into a blank circuit board and inspected to test their performance.
A bare PCB consists of a sheet formed by an insulating material, copper foil, and a coating to protect the copper from corrosion. While a PCBA is mounted with all the assembled electronic components.
Nowadays, almost all components can be surface mounted on circuit boards. Through-hole technology is still in use but less and less in PCB assembly.
Part 2: How to Get a Custom PCBA
In this section, we will have a look at how to create a custom PCBA.
Step1. The first step in designing a custom PCB is in creating a schematic view.
The required component is placed on a canvas and their pins are connected with lines that represent the electrical connections. The components usually are taken from a component library which is a part of the design software.
There may be multiple variations of the same components depending upon the type of package being used e.g. dual inline package or a surface-mounted chip. The packages may seem the same in the schematic view but are very different in the layout view where the board is actually designed.
Apart from the components and their electrical connections, power, and ground signals are also needed. Also, connectors have to be placed on the PCB to make a place for power and ground. The board is also required to be connected to external devices such as potentiometers and LEDs etc.
YScircuit HDI PCB manufacturing capabilities overview | |
Feature | capabilities |
Layer Count | 4-60L |
Available HDI PCB Technology | 1+N+1 |
2+N+2 | |
3+N+3 | |
4+N+4 | |
5+N+5 | |
Any layer | |
Thickness | 0.3mm-6mm |
Minimum line Width and Space | 0.05mm/0.05mm(2mil/2mil) |
BGA PITCH | 0.35mm |
Min laser Drilled Size | 0.075mm(3nil) |
Min mechanical Drilled Size | 0.15mm(6mil) |
Aspect Ratio for laser hole | 0.9:1 |
Aspect Ratio for through hole | 16:1 |
Surface Finish | HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective OSP,ENEPIG.etc. |
Via Fill Option | The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over |
Copper filled, silver filled | |
Laser via copper plated shut | |
Registration | ±4mil |
Solder Mask | Green, Red, Blue, White, Black, Purple, Matte Black, Matte green.etc. |
layer/m² | S<1㎡ | S<3㎡ | S<6㎡ | S<10㎡ | S<13㎡ | S<16㎡ | S<20㎡ | S<30㎡ | S<40㎡ | S<50㎡ | S<65㎡ | S<85㎡ | S<100㎡ |
1L | 4wds | 6wds | 7wds | 7wds | 9wds | 9wds | 10wds | 10wds | 10wds | 12wds | 14wds | 15wds | 16wds |
2L | 4wds | 6wds | 9wds | 9wds | 11wds | 12wds | 13wds | 13wds | 15wds | 15wds | 15wds | 15wds | 18wds |
4L | 6wds | 8wds | 12wds | 12wds | 14wds | 14wds | 14wds | 14wds | 15wds | 20wds | 25wds | 25wds | 28wds |
6L | 7wds | 9wds | 13wds | 13wds | 17wds | 18wds | 20wds | 22wds | 24wds | 25wds | 26wds | 28wds | 30wds |
8L | 9wds | 12wds | 15wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
10L | 10wds | 13wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
12L | 10wds | 15wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
14L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
16L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
