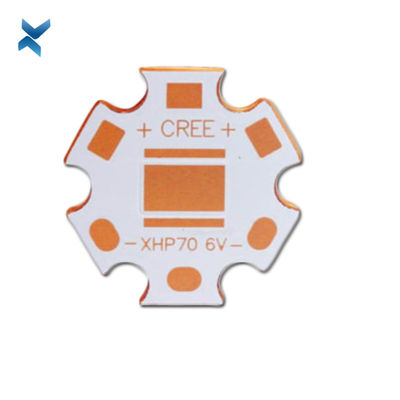

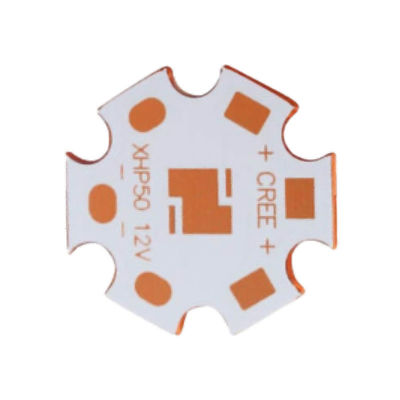

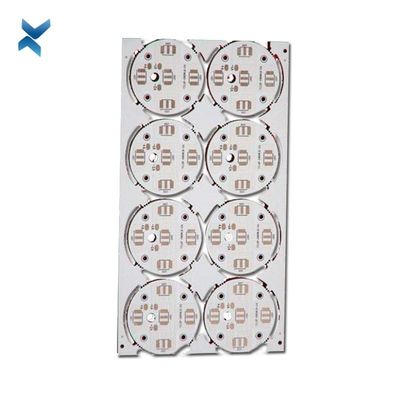

Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM

  • Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM
  • Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM
  • Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM
Place of Origin Shenzhen
Brand Name YScircuit
Certification ISO9001,UL,REACH, RoHS
Model Number YS-MC-0009
Minimum Order Quantity 1 piece
Price 0.02-8$/piece
Packaging Details Foam cotton + carton + strap
Delivery Time 2-8 days
Payment Terms T/T，PayPal, Alibaba pay
Supply Ability 251,000 square meter/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Copper Base Size 3*3cm
Process Immersion Gold/sliver Surface Finishing HASL/HASL-LF/ENIG/OSP
Color Brown Thickness 0.18cm
Application Output Amplifiers Name Output Amplifiers Pcb
High Light

Copper Base PCB 3cm

,

OEM Copper Base PCB
Leave a Message
Product Description

Metal Core Print Circuit Board Processing High Quality PCB Copper Base Board



Copper Based PCB

When it comes to metal core PCB, there are three types of materials in metal core PCB, such as aluminum PCB, copper based PCB, iron based PCB.

However, as the high power electronic components have a great demand for PCB heat dissipation, the need for metal core PCB in the market is also increasing, what’s more, there is a higher processing demand for copper based PCB, which is widely used in the field where has a high power and high frequency PCB design.

Because copper based PCB needs to have a great current carrying, it needs a thick copper foil, in general, the thickness of copper foil is 35μm~280μm.

Copper based PCB can be etched the fine pattern and processed into a convex platform, the component can be connected to the platform so that it makes a great effect on grounding and heat dissipation.



Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 0



Metal Core Capability
Metal core PCB type Normal single sided Aluminium based pcb, Double sided Aluminum pcb, FR4+Aluminium mixed backed circuit boards, Chip on board LED Alumnum pcb or copper pcb (COB MCPCB), Copper substrate pcb, LED PCB;
Board Material Bergquist Aluminium material, Aluminum Base,Copper Base
LED PCB Max Dimension 1900mm*480mm
Min Dimension 5mm*5mm
Min Trace& line spacing 0.1mm
Warp & Twist <0.5mm
Finished MPCB Thickness 0.2-4.5 mm
Copper Thickness 18-240 um
Hole Inner Copper Thickness 18-40 um
Hole Position Tolerance +/-0.075 mm
Min Punching Hole Diameter 1.0mm
Min Punching Square Slot Specification 0.8mm*0.8mm
Silk Prints Circuit Tolerance +/-0.075 mm
Outline Tolerance CNC:+/-0.1mm; Mould:+/- 0.75mm
Min Hole Size 0.2 mm (No limitation in Max hole dimention)
V-CUT Angle Deviation +/-0.5°
V-CUT Board Thickness Range 0.6mm-3.2mm
Min Component Mark Character Style 0.15 mm
Min Open Window for PADs 0.01mm
Solder Mask color Green, White, Blue, Matte black, Red.
Surface Finishing HASL, OSP, HASL LF, ENIG, ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)



YScircuit Bare Boards Normally Delivery Time
layer/m² S＜1㎡ S＜3㎡ S＜6㎡ S＜10㎡ S＜13㎡ S＜16㎡ S＜20㎡ S＜30㎡ S＜40㎡ S＜50㎡ S＜65㎡ S＜85㎡ S＜100㎡
1L 4wds 6wds 7wds 7wds 9wds 9wds 10wds 10wds 10wds 12wds 14wds 15wds 16wds
2L 4wds 6wds 9wds 9wds 11wds 12wds 13wds 13wds 15wds 15wds 15wds 15wds 18wds
4L 6wds 8wds 12wds 12wds 14wds 14wds 14wds 14wds 15wds 20wds 25wds 25wds 28wds
6L 7wds 9wds 13wds 13wds 17wds 18wds 20wds 22wds 24wds 25wds 26wds 28wds 30wds
8L 9wds 12wds 15wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
10L 10wds 13wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
12L 10wds 15wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
14L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
16L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds
30wds




Single Layer Metal Core PCB Stack up

Single Layer Metal Core PCB Stack Up

Double Layer Metal Core PCB Stack up

Double-Sided Metal Core Stack Up

Multilayer Metal Core PCB Stack up

Multilayer Metal Core PCB Stack Up

Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 4

Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 5Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 6Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 7Metal Core Copper Base PCB 3cm Size For Output Amplifiers OEM 8

FQA



1. What is the thickness of a metal core PCB?
The thickness of the metal core in a PCB substrate is typically 30 mil - 125 mil, but thicker and thinner boards are possible.



2. What are the advantages of metal core board?
Metal core boards transfer heat 8 to 9 times faster than FR4 PCBs.
These metal core laminates keep heat-generating components cool by dissipating heat faster.
The dielectric material is kept as thin as possible in order to create the shortest path from the heat source to the metal backplane.



3. How is a metal core PCB made?
If the board is a single-layer board with no layers transitioning back to the metal plate, the dielectric layers can be pressed and bonded to the metal plate using the standard process used with FR4 dielectrics.



4. What is a metal core PCB?
A metal core printed circuit board (MCPCB) is a printed circuit board that contains base metal materials.
The core is designed to transfer heat away from components that generate a lot of heat.
