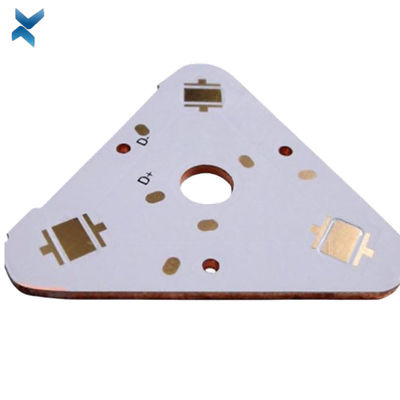

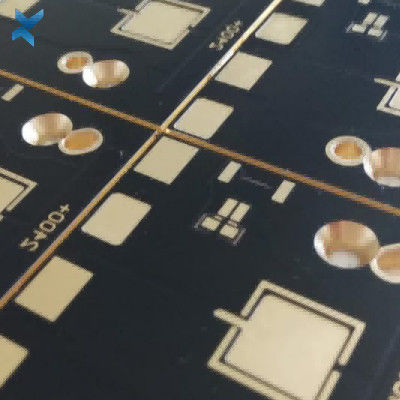

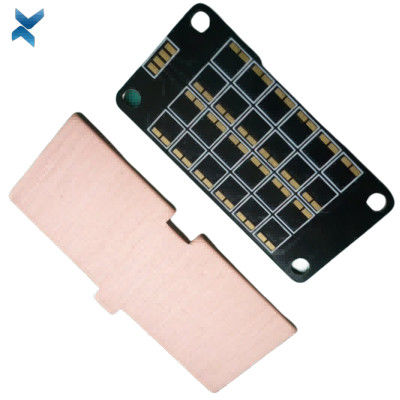

Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators

  • Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators
  • Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators
  • Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators
Place of Origin Shenzhen
Brand Name YScircuit
Certification ISO9001,UL,REACH, RoHS
Model Number YS-MC-0015
Minimum Order Quantity 1 piece
Price 0.02-8$/piece
Packaging Details Foam cotton + carton + strap
Delivery Time 2-8 days
Payment Terms T/T，PayPal, Alibaba pay
Supply Ability 251,000 square meter/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Copper Size 5*5cm
Process Immersion Gold Surface Finishing HASL/HASL-LF/ENIG/OSP
Shape Triangle Thickness 2mm
Application Switching Regulators Name Switching Regulators Pcb
High Light

Copper Base PCB Metal Core

,

Triangle Copper Base PCB

,

Copper metal core pcb board
Leave a Message
Product Description

High Quality Metal Core Print Circuit Board Copper Base Pcb For Switching Regulators



Applications of Copper PCB
Copper PCBs have brought breakthrough technologies in different industries.

Hence, it is not surprising that the use of copper PCB in different sectors is limitless.

And when you add heavy-duty copper circuit boards with it, the applications are truly unimaginable.



You will see its uses in solar power converters.

It increases the efficiency greatly of the converters.
Modern-day renewable energies have massive use of copper PCBs.

Also, it is used in pumping plants.


A copper PCB is an integral part of the high-power rectifiers for its great conductivity and dielectric capacity.
Copper printed circuit boards are used in different communication devices too including the railway system.
You will see its application in overload relay, monitors of the power line, and torque control devices of different sectors.

Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 0



Metal Core Capability
Metal core PCB type Normal single sided Aluminium based pcb, Double sided Aluminum pcb, FR4+Aluminium mixed backed circuit boards, Chip on board LED Alumnum pcb or copper pcb (COB MCPCB), Copper substrate pcb, LED PCB;
Board Material Bergquist Aluminium material, Aluminum Base,Copper Base
LED PCB Max Dimension 1900mm*480mm
Min Dimension 5mm*5mm
Min Trace& line spacing 0.1mm
Warp & Twist <0.5mm
Finished MPCB Thickness 0.2-4.5 mm
Copper Thickness 18-240 um
Hole Inner Copper Thickness 18-40 um
Hole Position Tolerance +/-0.075 mm
Min Punching Hole Diameter 1.0mm
Min Punching Square Slot Specification 0.8mm*0.8mm
Silk Prints Circuit Tolerance +/-0.075 mm
Outline Tolerance CNC:+/-0.1mm; Mould:+/- 0.75mm
Min Hole Size 0.2 mm (No limitation in Max hole dimention)
V-CUT Angle Deviation +/-0.5°
V-CUT Board Thickness Range 0.6mm-3.2mm
Min Component Mark Character Style 0.15 mm
Min Open Window for PADs 0.01mm
Solder Mask color Green, White, Blue, Matte black, Red.
Surface Finishing HASL, OSP, HASL LF, ENIG, ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)



YScircuit Bare Boards Normally Delivery Time
layer/m² S＜1㎡ S＜3㎡ S＜6㎡ S＜10㎡ S＜13㎡ S＜16㎡ S＜20㎡ S＜30㎡ S＜40㎡ S＜50㎡ S＜65㎡ S＜85㎡ S＜100㎡
1L 4wds 6wds 7wds 7wds 9wds 9wds 10wds 10wds 10wds 12wds 14wds 15wds 16wds
2L 4wds 6wds 9wds 9wds 11wds 12wds 13wds 13wds 15wds 15wds 15wds 15wds 18wds
4L 6wds 8wds 12wds 12wds 14wds 14wds 14wds 14wds 15wds 20wds 25wds 25wds 28wds
6L 7wds 9wds 13wds 13wds 17wds 18wds 20wds 22wds 24wds 25wds 26wds 28wds 30wds
8L 9wds 12wds 15wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
10L 10wds 13wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
12L 10wds 15wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
14L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
16L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds
30wds




Single Layer Metal Core PCB Stack up

Single Layer Metal Core PCB Stack Up

Double Layer Metal Core PCB Stack up

Double-Sided Metal Core Stack Up

Multilayer Metal Core PCB Stack up

Multilayer Metal Core PCB Stack Up

Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 4

Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 5Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 6Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 7Metal Core Copper Base PCB Board Triangle Shape For Switching Regulators 8

FQA



1. What is the thickness of a metal core PCB?
The thickness of the metal core in a PCB substrate is typically 30 mil - 125 mil, but thicker and thinner boards are possible.



2. What are the advantages of metal core board?
Metal core boards transfer heat 8 to 9 times faster than FR4 PCBs.
These metal core laminates keep heat-generating components cool by dissipating heat faster.
The dielectric material is kept as thin as possible in order to create the shortest path from the heat source to the metal backplane.



3. How is a metal core PCB made?
If the board is a single-layer board with no layers transitioning back to the metal plate, the dielectric layers can be pressed and bonded to the metal plate using the standard process used with FR4 dielectrics.



4. What is a metal core PCB?
A metal core printed circuit board (MCPCB) is a printed circuit board that contains base metal materials.
The core is designed to transfer heat away from components that generate a lot of heat.
