Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity

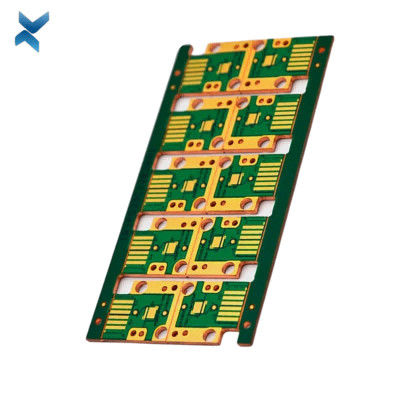

  • Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity

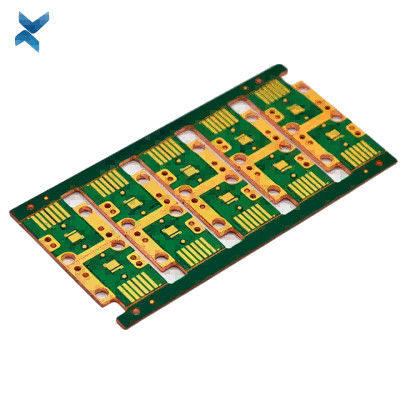

  • Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity

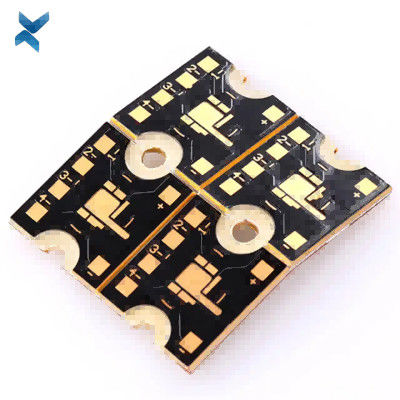

  • Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity

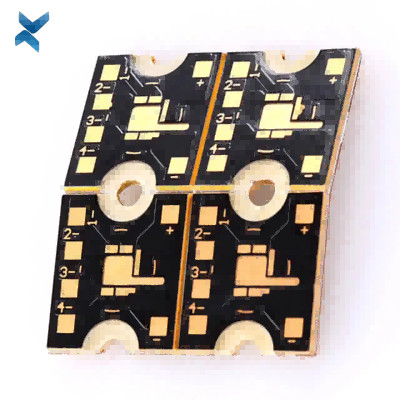

  • Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity
Place of Origin Shenzhen
Brand Name YScircuit
Certification ISO9001,UL,REACH, RoHS
Model Number YS-MC-0029
Minimum Order Quantity 1 piece
Price 0.02-8$/piece
Packaging Details Foam cotton + carton + strap
Delivery Time 2-8 days
Payment Terms T/T，PayPal, Alibaba pay
Supply Ability 251,000 square meter/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Copper Size 12*12cm
Process Immersion Gold Surface Finishing HASL/HASL-LF/ENIG/OSP
Color White Thickness 0.2cm
Application Straw Shed Lamp Name Straw Shed Lamp Pcb
High Light

Aluminum Copper Clad PCB Board

,

Copper Clad PCB Board Laminate

,

Conductivity copper clad laminate pcb
Leave a Message
Product Description

High Thermal Conductivity Aluminum Base Copper Clad Laminate Using For Led And Pcb



MCPCB, Metal Core PCB, thermal PCB

In recent years, LED industry has been rapidly developed, but the problem of heat dissipation has been puzzling the application and development of LED, especially high-power LED in the field of lighting.

The application of metal substrate provides a new way to solve the heat dissipation of LED effectively.



Metal core pcb is abbreviated as MCPCB, it is made of thermal insulating layer, metal plate and metal copper foil, which has special magnetic conductivity, excellent heat dissipation, high mechanical strength and good processing performance.

For metal core base material, there is aluminum and copper base materials.

Aluminum substrate is a kind of metal-based copper clad plate with good heat transferring and dissipation function.

Copper substrate has better performance than aluminum, but its price is relatively more expensive than aluminum.

Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 0



Metal Core Capability
Metal core PCB type Normal single sided Aluminium based pcb, Double sided Aluminum pcb, FR4+Aluminium mixed backed circuit boards, Chip on board LED Alumnum pcb or copper pcb (COB MCPCB), Copper substrate pcb, LED PCB;
Board Material Bergquist Aluminium material, Aluminum Base,Copper Base
LED PCB Max Dimension 1900mm*480mm
Min Dimension 5mm*5mm
Min Trace& line spacing 0.1mm
Warp & Twist <0.5mm
Finished MPCB Thickness 0.2-4.5 mm
Copper Thickness 18-240 um
Hole Inner Copper Thickness 18-40 um
Hole Position Tolerance +/-0.075 mm
Min Punching Hole Diameter 1.0mm
Min Punching Square Slot Specification 0.8mm*0.8mm
Silk Prints Circuit Tolerance +/-0.075 mm
Outline Tolerance CNC:+/-0.1mm; Mould:+/- 0.75mm
Min Hole Size 0.2 mm (No limitation in Max hole dimention)
V-CUT Angle Deviation +/-0.5°
V-CUT Board Thickness Range 0.6mm-3.2mm
Min Component Mark Character Style 0.15 mm
Min Open Window for PADs 0.01mm
Solder Mask color Green, White, Blue, Matte black, Red.
Surface Finishing HASL, OSP, HASL LF, ENIG, ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)



YScircuit Bare Boards Normally Delivery Time
layer/m² S＜1㎡ S＜3㎡ S＜6㎡ S＜10㎡ S＜13㎡ S＜16㎡ S＜20㎡ S＜30㎡ S＜40㎡ S＜50㎡ S＜65㎡ S＜85㎡ S＜100㎡
1L 4wds 6wds 7wds 7wds 9wds 9wds 10wds 10wds 10wds 12wds 14wds 15wds 16wds
2L 4wds 6wds 9wds 9wds 11wds 12wds 13wds 13wds 15wds 15wds 15wds 15wds 18wds
4L 6wds 8wds 12wds 12wds 14wds 14wds 14wds 14wds 15wds 20wds 25wds 25wds 28wds
6L 7wds 9wds 13wds 13wds 17wds 18wds 20wds 22wds 24wds 25wds 26wds 28wds 30wds
8L 9wds 12wds 15wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
10L 10wds 13wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
12L 10wds 15wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
14L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
16L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds
30wds




Single Layer Metal Core PCB Stack up

Single Layer Metal Core PCB Stack Up

Double Layer Metal Core PCB Stack up

Double-Sided Metal Core Stack Up

Multilayer Metal Core PCB Stack up

Multilayer Metal Core PCB Stack Up

Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 4

Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 5Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 6Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 7Aluminum Base Copper Clad PCB Board Laminate With High Thermal Conductivity 8

FQA



1. What is the thickness of a metal core PCB?
The thickness of the metal core in a PCB substrate is typically 30 mil - 125 mil, but thicker and thinner boards are possible.



2. What are the advantages of metal core board?
Metal core boards transfer heat 8 to 9 times faster than FR4 PCBs.
These metal core laminates keep heat-generating components cool by dissipating heat faster.



3. What is a metal core PCB?
A metal core printed circuit board (MCPCB) is a printed circuit board that contains base metal materials.
The core is designed to transfer heat away from components that generate a lot of heat.
