Product Description:

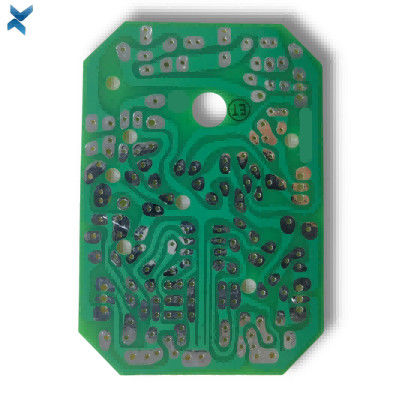

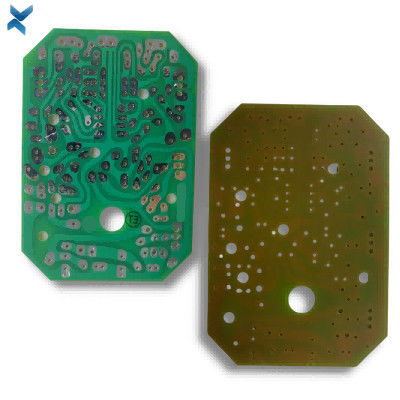

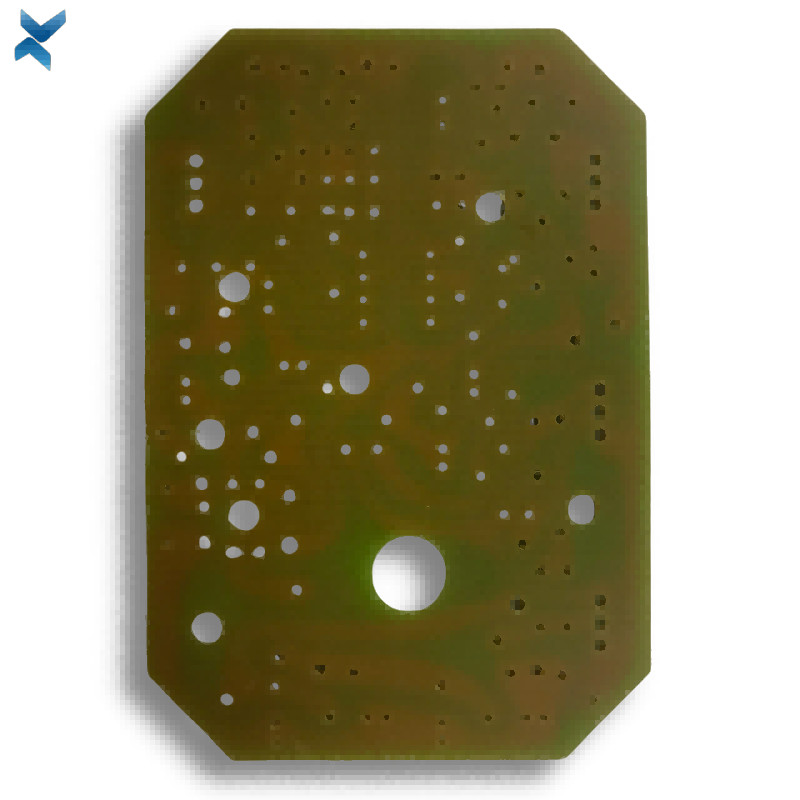

Multilayer PCB Circuit Board is a type of SMT manufactured electronic PCBA assembly with a superior performance. It is constructed with 2 to 8 layers, 1oz copper thickness, and 0.075mm minimum line spacing, and a 1.6mm board thickness. To ensure the quality of the product, it is packaged in a vacuum package and carton. This type of PCB offers excellent signal integrity and component density, making it the perfect choice for high-end electronic products.

Features:

• Product Name: Multilayer PCB Circuit Board
• Surface Finish: ENIG
• Material: FR4
• Min Line Width: 0.075mm
• Silk Screen Color: White
• Min Hole Size: 0.2mm
• PCB: Electronic PCBA, Printed Circuit Boards

Technical Parameters:

Applications:

Multilayer PCB Circuit Board from YScircuit (Model: YS-Rigid-6) is a printed circuit board that is designed to meet the highest standards of quality. It is a rigid PCB with 2-8 layers, and has a minimum hole size of 0.2mm and minimum line width of 0.075mm. The surface finish is ENIG and it has impedance control. YScircuit also offers RoHS, UL, Reach and ISO 9001 certification for the product. The minimum order quantity is 2, and the price is negotiable. The product is packed in carton boxes, and the delivery time is 7 working days after payment is received. YScircuit has a supply ability of 10000square meter/month.

Customization:

Support and Services:

We offer comprehensive technical support and service for our Multilayer PCB Circuit Board products. Our team of highly experienced engineers can provide timely support and advice to help you get the most out of your investment.

We offer a range of services, including:

• Design and layout consultations
• PCB assembly and fabrication services
• Circuit testing and troubleshooting
• Hardware and software integration
• On-site maintenance and repair services

We are committed to providing the highest quality products and services to our customers. Our team is dedicated to ensuring your satisfaction and helping you get the most out of your Multilayer PCB Circuit Board product.

Packing and Shipping:

Packaging and Shipping a Multilayer PCB Circuit Board:

For safe transport of a multilayer PCB circuit board, the board should be properly packaged and shipped. The following measures should be taken for packaging and shipping the board:

• The board should be placed in an antistatic bag.
• The bag should be placed in a cardboard box.
• The box should be clearly labeled with the sender's and recipient's contact information.
• The box should be securely sealed with packing tape.
• The box should be placed in a sturdy shipping box with additional packing materials for protection.
• The shipping box should also be labeled with the sender's and recipient's contact information.
• The box should be shipped via a reliable shipping service with tracking information and insurance.
