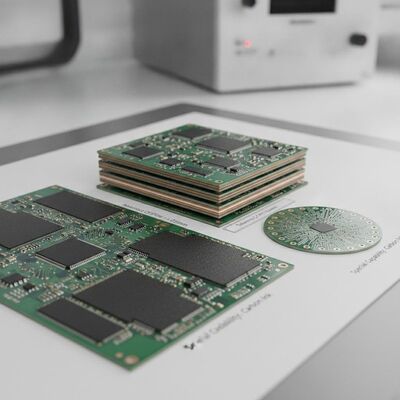

Tolerance Of Pth Plus Minus 005mm PCB Manufacturing Max Layer 38L Special Capability Carbon Ink For Printed Circuit Boards

Tolerance Of Pth Plus Minus 005mm PCB Manufacturing Max Layer 38L Special Capability Carbon Ink For Printed Circuit Boards

Detail Information
Copper:
0.5OZ-10OZ
Application:
Electronics Device,Consumer Electronics
Special Capability:
Gold Finger Plating,Carbon Ink
Hole Min:
0.1mm
Min Space:
0.075mm
Internal Copper:
1.2mil
Layer Count:
1-48
Max Layer:
38L
Highlight:

PTH tolerance ±0.05mm PCB manufacturing

,

38-layer max PCB manufacturing capability

,

carbon ink printed circuit boards

Product Description
PCB Manufacturing Services
Our comprehensive PCB manufacturing solution delivers high-quality electronic circuit boards with advanced precision and reliability. We specialize in multilayer PCB manufacturing for rigid, flexible, and rigid-flexible board types, supporting complex designs and diverse applications across multiple industries.
Key Features
  • Product Name: PCB Manufacturing
  • Copper Thickness Range: 0.5OZ to 10OZ
  • Special Capabilities: Gold Finger Plating, Carbon Ink
  • Internal Copper Thickness: 1.2mil
  • Component Sourcing: Available
  • Minimum Hole Size: 0.2mm
  • Expertise in PCB Assembly and Manufacturing
  • High-quality PCB Assembly and Manufacturing services
  • Reliable and precise PCB Assembly and Manufacturing solutions
Technical Specifications
Parameter Specification
Internal Copper 1.2mil
Component Sourcing Yes
Tolerance Of PTH +/-0.05mm
Special Capability Gold Finger Plating, Carbon Ink
Materials Rogers, Nelco, PTFE, M6, TU862, TU872
Max Layer 38L
Minimum Line Space 0.10mm
Layer Count 1-48
Copper 0.5OZ-10OZ
Application Electronics Device, Consumer Electronics
Applications
Our PCB manufacturing technology supports electronic circuit board production for modern electronic devices requiring high precision and reliability. With internal copper thickness of 1.2mil and outer copper range from 0.5OZ to 10OZ, this solution meets rigorous demands across various electronic applications. The fine minimum space of 0.075mm ensures exceptional circuit density for compact and complex electronic designs.
High SMT capability of 14 million spots per day facilitates rapid assembly for large-scale production environments, making it ideal for consumer electronics manufacturing including smartphones, tablets, wearable devices, and other electronic gadgets.
Customization Options
Our electronic circuit board production offers high precision PCB fabrication with maximum layer count up to 38 layers. We provide minimum space of 0.075mm and minimum line space of 0.10mm for intricate circuit layouts. Services include PCB assembly and manufacturing with component sourcing, plus minimum hole size of 0.2mm for fine vias and through-holes.
Frequently Asked Questions
What materials are used in your PCB manufacturing process?
We use high-quality FR4 as the standard material for our PCBs, but we also offer options like Rogers, Aluminum, and flexible substrates depending on your project requirements.
What is the typical turnaround time for PCB manufacturing?
Our standard turnaround time is 7-10 business days. However, we offer expedited services that can reduce the lead time to as little as 24-48 hours for urgent orders.
What is the maximum number of layers you can manufacture in a PCB?
We can manufacture PCBs with up to 32 layers, allowing for complex and high-density circuit designs.
What is the minimum trace width and spacing you can achieve?
Our advanced manufacturing process supports a minimum trace width and spacing of 4 mil (0.1 mm), ensuring precise and reliable circuit patterns.
Can you produce both rigid and flexible PCBs?
Yes, we manufacture both rigid, flexible, and rigid-flex PCBs to suit a variety of electronic applications and design needs.
