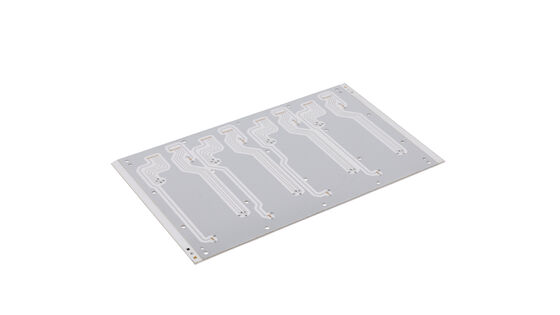

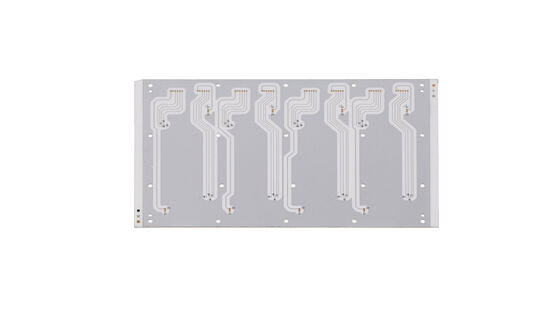

2 Layer Aluminum PCB Al2O3 Based ENIG PCB Board for Fixture Transfer Board

MOQ:	1
Price:	Inquiry Us
Payment Terms:	T/T
Supply Ability:	200,000+ m² PCB per Month

Detail Information

Product Description

Detail Information

Layer:

2 Layer

Board Thickness:

2.0 Mm

Material:

Aluminum

Min. Line Width/Space:

0.1/0.1mm

Color:

White

Surface Treatment:

ENIG

Application:

Fixture Transfer Board

Certificate:

UL,CE,Rohs,IATF16949,ISO

Type:

Customizable

Supply Ability:

200,000+ m² PCB per Month

Highlight:

2 layer aluminum PCB board

Al2O3 based ENIG PCB

fixture transfer PCB board

Product Description

2 Layer Aluminum PCB Al2O3 Based ENIG PCB Board for Fixture Transfer Board

Lighting Aluminum PCB Excellent Electrical Performance Single-sided PCB Board Printing

What is Aluminum PCB?

Aluminum substrate is a functional circuit board with aluminum (or aluminum alloy) as the base material. It is mainly composed of circuit layer (copper foil), insulation layer and metal base layer. Its core value lies in efficient heat dissipation and high power carrying capacity. It is widely used in electronic devices that are sensitive to heat or require high current drive.

Features of Aluminum PCB

Excellent heat dissipation performance: The core advantage of aluminum-based PCBs is the high thermal conductivity of the substrate itself (the thermal conductivity of aluminum is usually 150~240 W/(m*K), much higher than the 0.3~0.5 W/(m*K) of ordinary FR-4 epoxy resin boards). Heat can be quickly transferred to the housing or heat sink through the aluminum substrate to avoid local overheating.
Good electrical performance: The dielectric constant of the insulating layer is usually 3~5 (lower than 4~5 of FR-4, but higher than ceramic substrate), which is suitable for medium and high frequency circuits (but high frequency applications still require ceramic substrates).
High rigidity: The mechanical strength of aluminum substrate is better than that of organic substrates such as FR-4, and it has strong resistance to bending and vibration, making it suitable for scenarios with high requirements for structural stability (such as automobiles and industrial equipment).

Applications of Aluminum PCB

LED lighting: Solve the problem of high heating of LED lamp beads (such as street lights, spotlights, and car headlights) to ensure stable lighting effect and life.
Power supply and power devices: Adapt to high-current devices such as switching power supplies, inverters, and frequency converters, and quickly dissipate the heat of components such as IGBTs and MOS tubes.
Automotive electronics: Used in on-board chargers (OBCs), DC-DC converters, and car light drive modules to cope with high temperature environments in the engine compartment.
Industrial control: Heat dissipation and circuit integration of high-voltage equipment such as servo drives and PLC controllers.

Technical Parameters

Item	Specification
Layers	1~32
Board thickness	0.1mm-7.0mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP, HASL, Imm Gold/Nickel/Ag, Electric gold
Copper thickness	0.5-7.0OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.75mm
Hole tolerance	PTH:±0.05 NPTH:±0.025
Certificate	UL, ISO 9001, ISO14001, IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppliers	Shengyi, KB, Nanya, ITEQ, etc.
