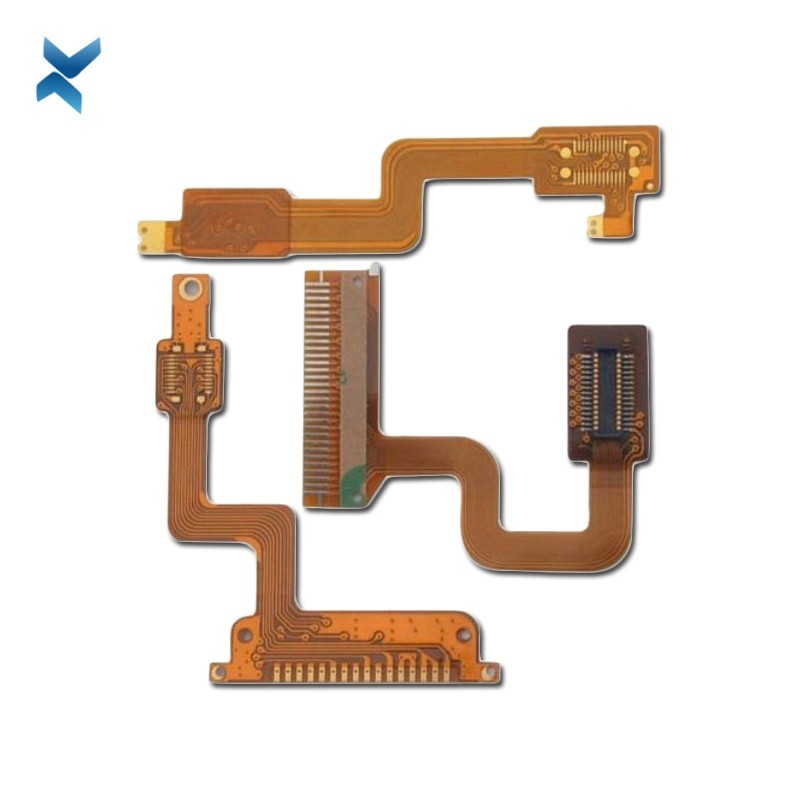

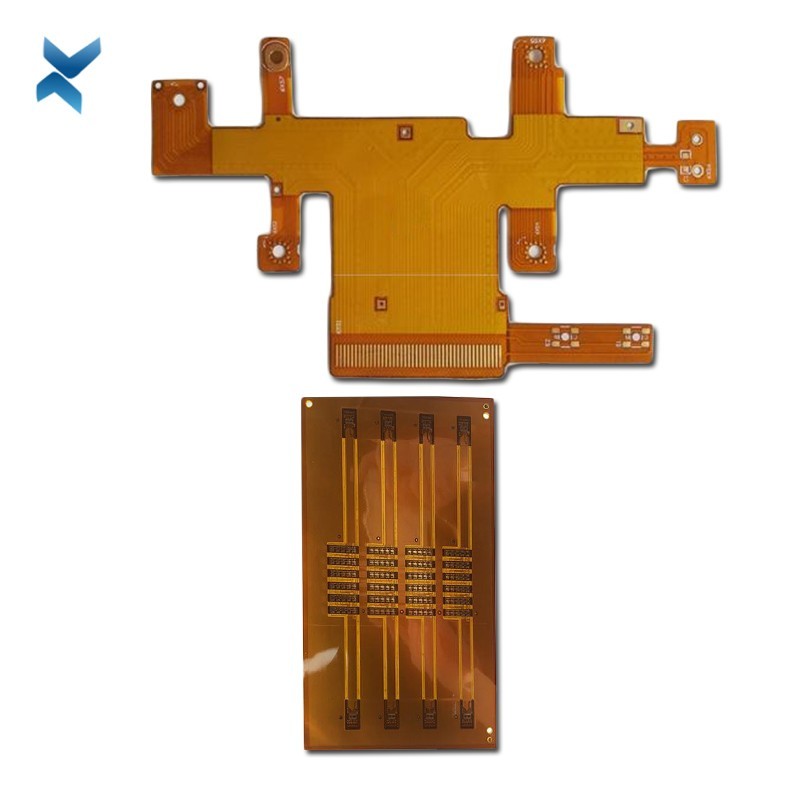

0.1mm FPC Single Sided Flex PCB , OEM Flexible Electronic PCB Board

Single Sided Flex PCB 0.1mm FPC Thickness OEM Flexible PCB Board Electronic

WHAT IS THE ADVANTAGE TO USING A FLEX PCB?
Flexible printed circuit boards come with numerous advantages over a rigid PCB. This has made them common in consumer electronics, yet comes with some drawbacks. As a result, rigid and flexible PCBs both have their place, and are often used in conjunction with each other in rigid-flex circuits.
Flexible PCB stack up

FQA

1. Do you offer double-layer flexible PCB?
Yes, we make single layer flexible PCB, double sided flexible PCB, multi-layer flexible PCB, and Rigid-Flex PCBs.

2. How many types of flexible circuit do you make?
We make different types of Flex and Rigid-Flex PCBs, depending on the structure, base material, adhesive, appearance, insulation base film, and metal conductor foil. Please consult our technical team for details suitable for your application.

3. Do you provide stiffeners and cover films?
Yes, we provide black PI stiffeners, yellow PI cover films, transparent polyimide films, white overlay, and brown PI copper clad laminates.

4. Do you use adhesive free copper foil base material?
Yes. We have four manufacturing methods for adhesive-free copper foil base materials. We use spray plating, curtain coating, electroless deposition/electrolytic plating, and laminating.

5. What are the minimum and maximum thickness of your adhesive flex PCBs?
Minimum thickness is 2 µm and the maximum is 200 µm.
We ensure high chemical durability and processing compatibility for flexible printed circuits and do not sacrifice its original electrical property, heat-resistant property, and mechanical property.

6. Which IPC standards do you follow?
IPC Standards for Rigid and Flexible PCBs
The list of IPC standards below applies to rigid PCBs and flex circuits. Take note that this list is not exhaustive, and additional IPC standards may need to be considered.
You should consult the ipc.org website for a full list of available IPC standards.

IPC-4202, Flexible Base Dielectrics for Use in Flexible Printed Circuitry
IPC-4203, Adhesive Coated Dielectric Films for Use as Cover Sheets for Flexible Printed Circuitry and Flexible Adhesive Bonding Films
IPC-4204, Flexible Metal-Clad Dielectrics for Use in Fabrication of Flexible Printed CircuitryIPC-6013, Qualification and Performance Specification for Flexible Printed Wiring

7. What is the function of the flexible circuit board?
The functions of flexible circuit boards can be divided into four types: Lead Line, Printed Circuit, Connector, and Integration of Function.
The use covers computers and computer peripherals—auxiliary systems, consumer electrical appliances, automobiles, etc.

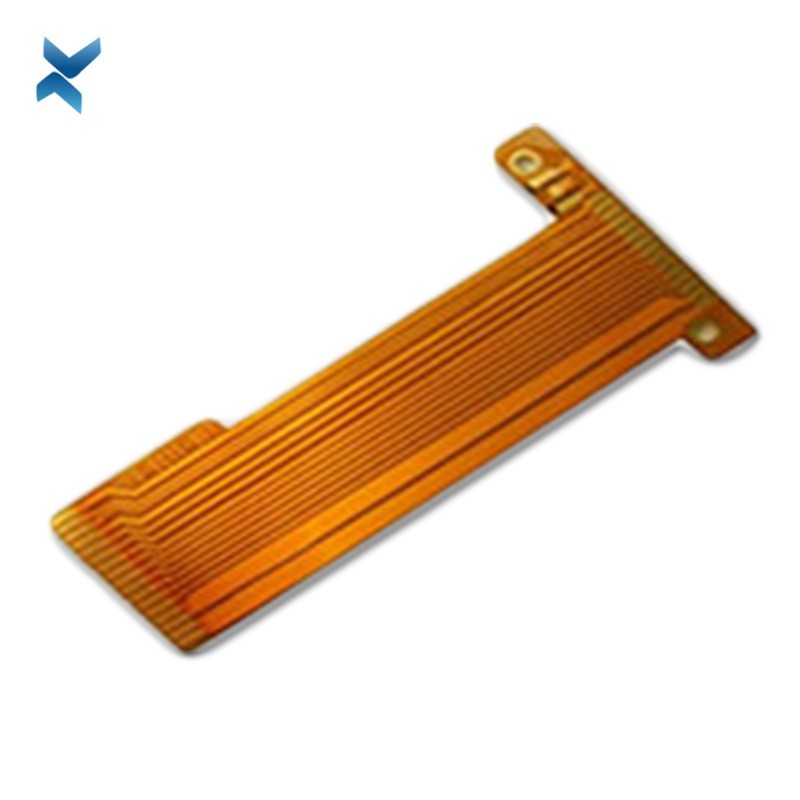

After the circuit is completed with single-sided PI copper-clad material, it is covered with a protective film to form a flexible circuit board with only a single-layer conductor.

8. Rigid-flex PCB vs. rigid PCBs and flexible PCB, What are the differences?

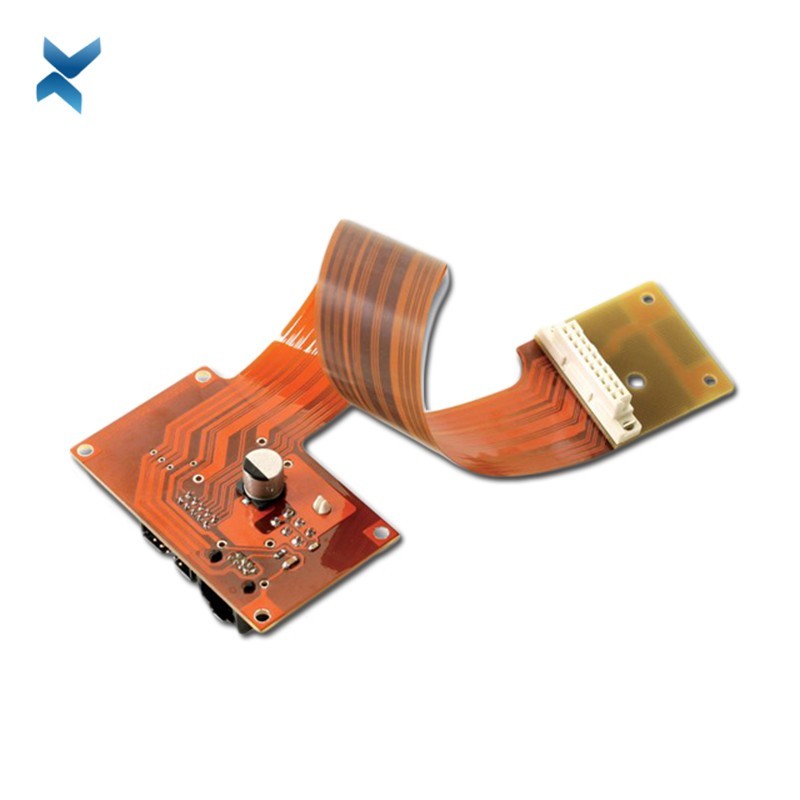

As the name suggests, rigid-flex PCB is a mixture of rigid and flexible PCBs.
Rigid-flex PCBs combine the excellent qualities of both while eliminating many of their limitations.
Rigid-flex PCBs combine flex circuit design with rigid materials.
