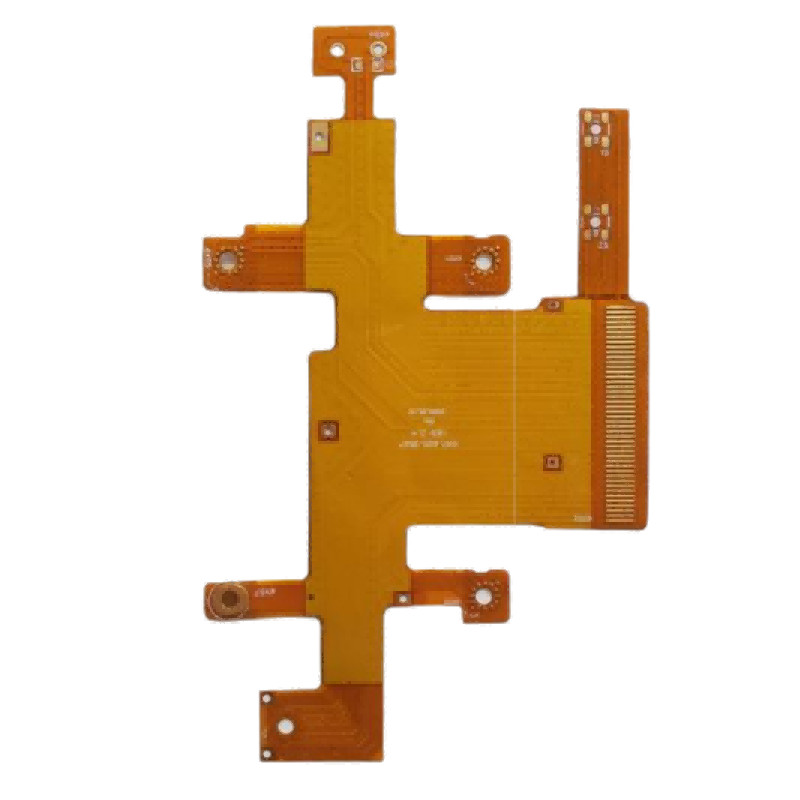

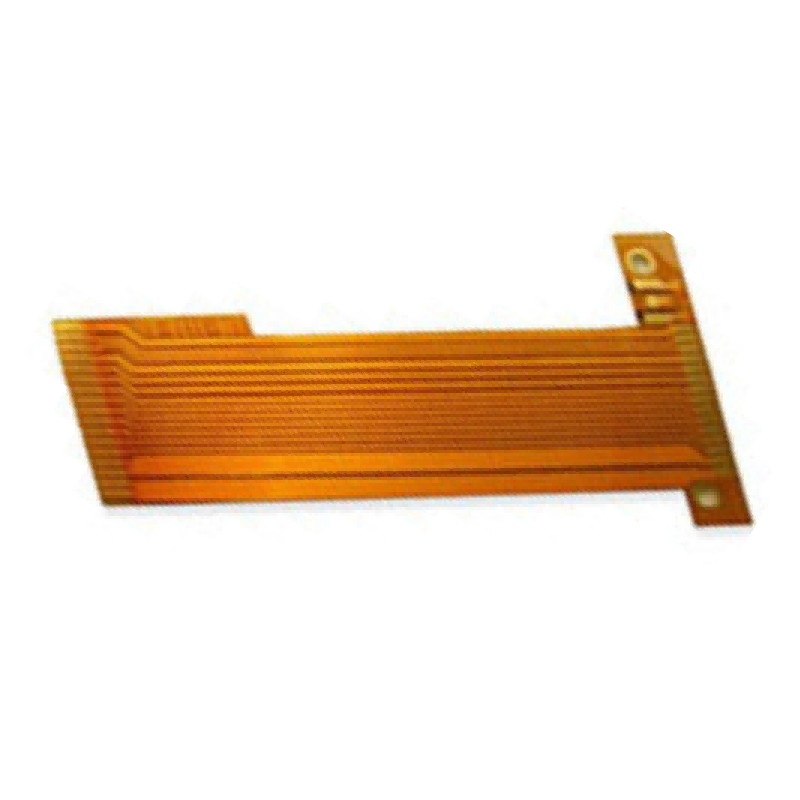

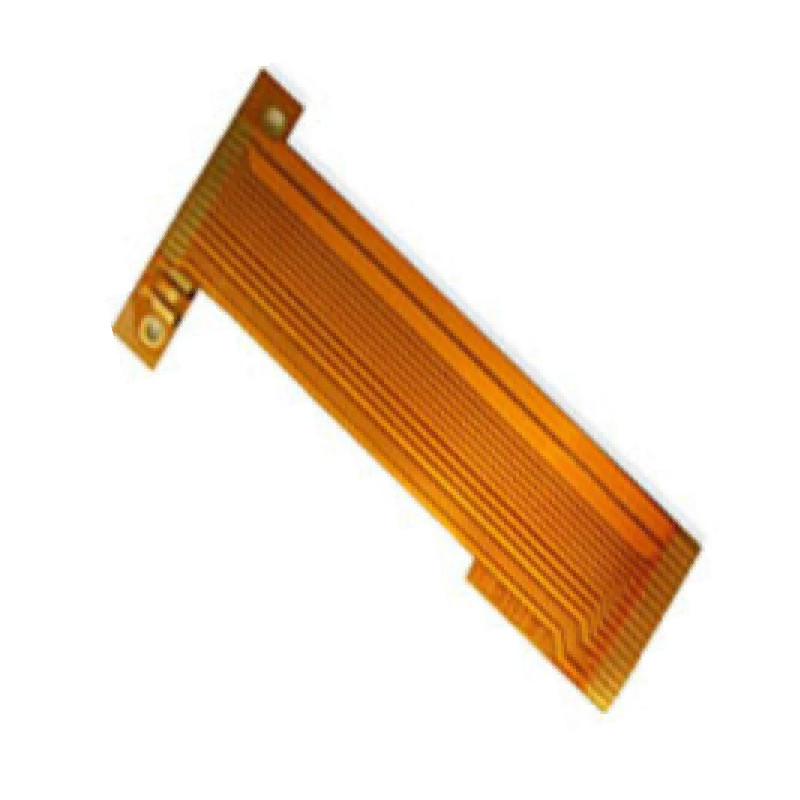

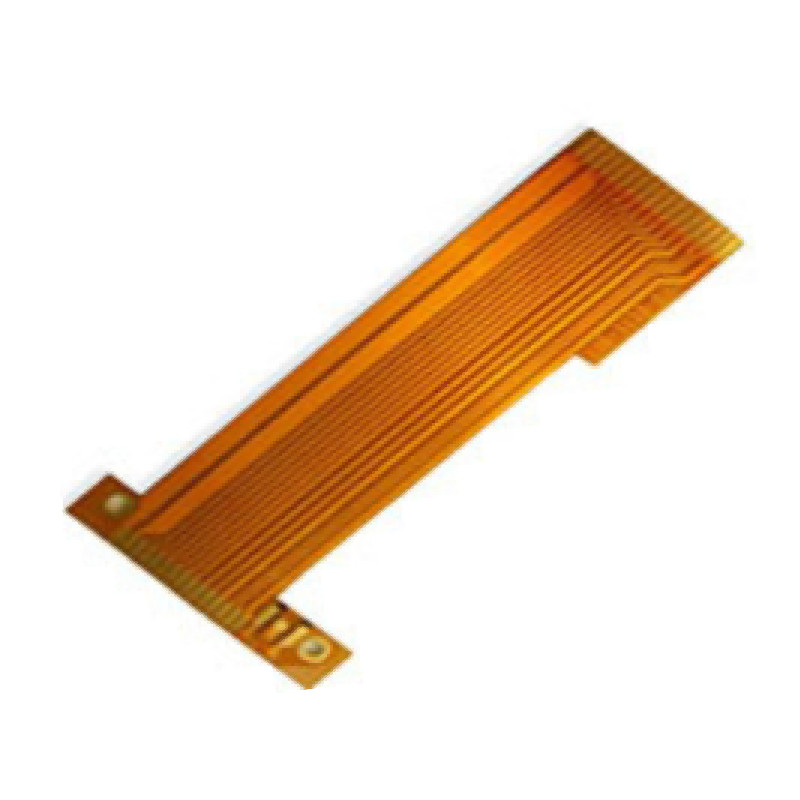

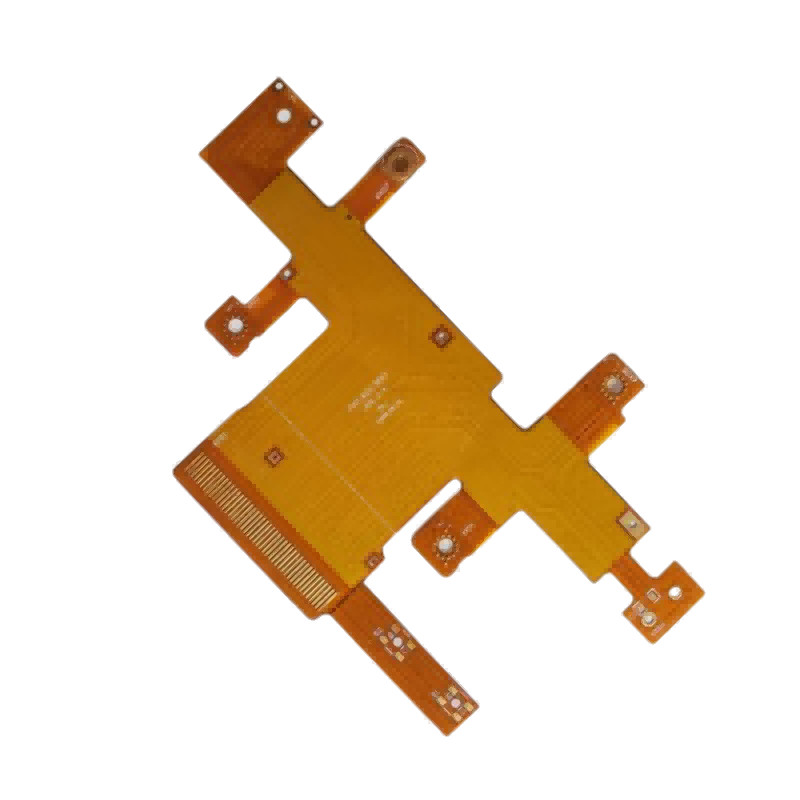

Industrial Flexible Printed Board Polymine For Mobile Phone Camera OEM

PCB Manufacture Flex Circuit Board Polymine for Mobile Phone Camera

WHAT IS THE ADVANTAGE TO USING A FLEX PCB?
Flexible printed circuit boards come with numerous advantages over a rigid PCB. This has made them common in consumer electronics, yet comes with some drawbacks. As a result, rigid and flexible PCBs both have their place, and are often used in conjunction with each other in rigid-flex circuits.
YS Circuit
Flexible Circuit Boards, as the name suggests, are special types of circuits that can bend and adjust to the shape of the device and product in which they are installed.
They are made of a flexible substrate and have the capability to adapt according to the shape.

Physically, you can consider flexible printed circuit (FPC) boards just like a PCB with components, but the only difference is that the substrate can be bent.
The same components can be mounted on an FPC, and the same functionality can be obtained just like a normal rigid PCB.

There are special plastic substrates used to make a flexible circuit board.
It could be Polyimide or polyester film. Sometimes, you will see a polyester sheet and silver conductive lines on it;
We will introduce in detail later on Which material is used in flexible PCB.

These circuits are used in special projects when you care more about the compactness and minimalist design of the product.
It has greatly revolutionized the electronics industry and has significantly reduced the size of products or devices.

Flexible PCB stack up

FQA

1. Do you offer double-layer flexible PCB?
Yes, we make single layer flexible PCB, double sided flexible PCB, multi-layer flexible PCB, and Rigid-Flex PCBs.

2. How many types of flexible circuit do you make?
We make different types of Flex and Rigid-Flex PCBs, depending on the structure, base material, adhesive, appearance, insulation base film, and metal conductor foil. Please consult our technical team for details suitable for your application.

3. Do you provide stiffeners and cover films?
Yes, we provide black PI stiffeners, yellow PI cover films, transparent polyimide films, white overlay, and brown PI copper clad laminates.

4. Do you use adhesive free copper foil base material?
Yes. We have four manufacturing methods for adhesive-free copper foil base materials. We use spray plating, curtain coating, electroless deposition/electrolytic plating, and laminating.

5. What are the minimum and maximum thickness of your adhesive flex PCBs?
Minimum thickness is 2 µm and the maximum is 200 µm.
We ensure high chemical durability and processing compatibility for flexible printed circuits and do not sacrifice its original electrical property, heat-resistant property, and mechanical property.
