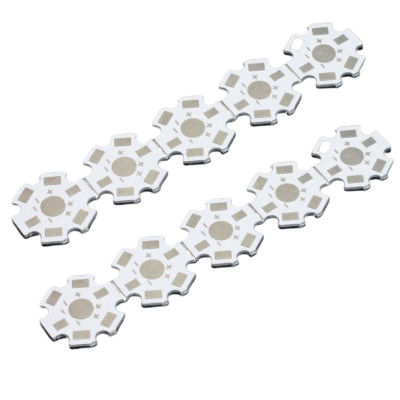

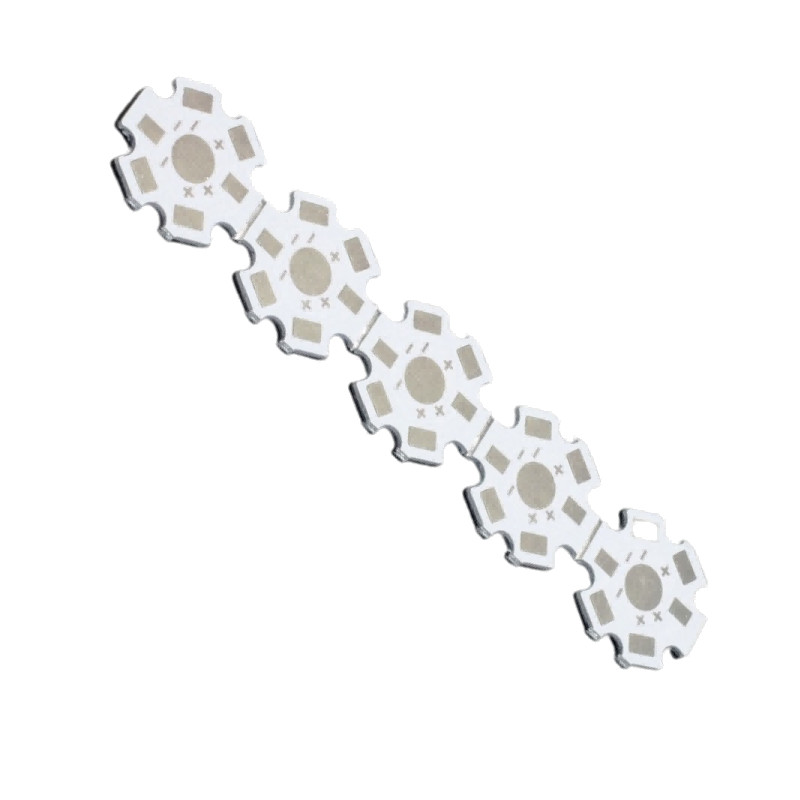

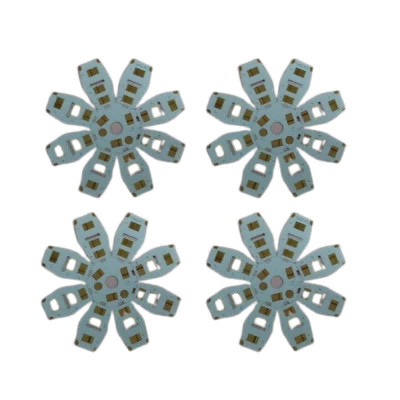

OEM Aluminum LED Printed Circuit Board For Emergency Solar Light

LED Print Circuit Board OEM Aluminum Pcb For Emergency Solar Light

The application of LED PCB:

Telecommunications

LED indicators and displays are always used for telecommunications equipment because of the surrounding machinery, the excellent heat transferability.

So aluminum-based LED PCBs are extremely useful in this application.

Automotive

Aluminum PCB LEDs also used in cars on indicators, in headlights and brake lights, and other applications. The durability and competitive price makes these aluminum PCBs ideal within the automotive industry.

Consumer Electronics

Consumer electronics are those devices that are being used by humans on a daily basis.

These electronics include smartphones and computers, in fact, even the new forms of fridges also have electronic components in them.

The best part about the LED PCBs is that they offer low units per cost which make the price of the final product relatively less than what it’s supposed to be.

Medical

Lighting tools used in surgeries and medical examinations commonly use high-powered LED lights, and these LED lights often use aluminum PCBs.

This is primarily due to the durability and heat transfer capabilities of aluminum PCB LEDs — this ensures medical equipment is functioning properly regardless of the number of patients cycling through a medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs as well.

WHAT IS AN ALUMINUM PCB?

A PCB generally consists of three layers. A conductive copper layer at the top, a dielectric layer in between, and a layer of a substrate at the bottom. Standard PCBs have a substrate layer made of fiberglass, ceramic, polymers, or any other non-metal core. An ample amount of PCBs uses FR-4 as the substrate.

Aluminum PCBs use an Aluminum substrate. Instead of standard FR-4 as the substrate material.

Circuit Copper Layer

This layer transmits signals over the entire PCB board.

The movement of charged particles generates heat.

This heat is transferred to the Aluminum substrate. Which dissipates it efficiently.

Insulating Layer

This layer is also known as the dielectric layer.

It is made of materials that are poor conductors of electricity.

It absorbs the heat generated in the above layer. And transfer it to the Aluminum substrate below it.

Substrate

The substrate acts as a foundation for the PCB.

It firmly holds the components above it. By changing the characteristics of the substrate, the performance of PCB varies.

For example, a rigid substrate provides strength and durability to the PCB board.

While a flexible substrate opens up more design options.

The aluminum substrate is used in power electronics-based applications where high thermal dissipation is required.

Due to its good thermal conductivity, it keeps heat away from vital electronic components. Thus ensuring minimal circuit damage.

ALUMINUM PCBs MANUFACTURED AT YScircuit

YScircuit is one of the finest manufacturers of Aluminum PCBs.

To increase the overall performance of the product, they provide a thermal clad layer to the Aluminum PCB.

It dissipates heat in a highly efficient manner. For high power and tight tolerance based applications Aluminum Backed PCB is the perfect choice among project makers.

Considering parameters like the coefficient of thermal expansion, thermal conductivity, strength, hardness, weight, and cost. Aluminum plate is an ideal choice for your project. You can modify your PCB substrate. PCBWay offers different Aluminum plates like 6061, 5052, 1060, and many more.

ADVANTAGES OF ALUMINUM PCB

1. The heat dissipation capacity of Aluminum PCBs is far better than standard PCBs.

2. Aluminum PCBs provide more strength and durability. As compared to ceramic and fiberglass-based PCBs.

3. It seems ironic, but aluminum-based PCBs are lighter. As compared to standard PCBs.

4. Thermal expansion and contraction of PCB components get reduce by using Aluminum PCB.

5. PCBs made of Aluminum are environmentally friendly. It is non-toxic and recyclable. It does not create any harmful impacts on our planet.

6. The assembling process of Aluminum PCB is easy than that of standard PCB.

APPLICATIONS

1. They are used in Power supply devices like switching regulators, DC/AC converter, SW regulator.

2. In power modules, they are used in inverters, solid-state relays, and rectifier bridges.

3. In automobiles, they are used in an electronic regulator, ignition, power supply controller, etc.

4. They are the perfect choice for amplifiers. Balanced amplifier, audio amplifier, power amplifier, operational amplifier, high-frequency amplifier.

5. They are used in the transmitting and filtering circuit.

6. They are used to make the CPU board. And power supply of computers.

7. Electric motors require a high current for their operation. In industries, motor driver circuits use Aluminum PCB.

8. These are a popular choice for LED applications due to their energy-saving capability.
