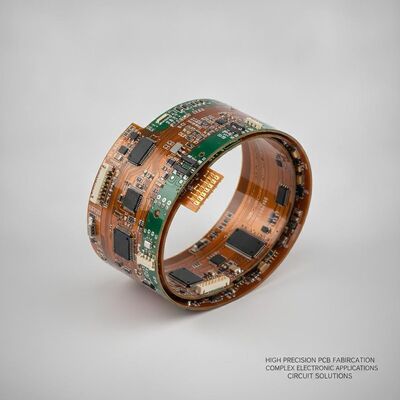

Copper 0.5OZ 10OZ Flexible Board Type High Precision PCB Fabrication Services for Complex Electronic Applications and Circuit Solutions

Detail Information

Product Description

Detail Information

Tolerance Of Pth:

+/-0.05mm

Smt Capability:

14 Million Spots Per Day

Max Layer:

38L

Application:

Electronics Device,Consumer Electronics

Minimum Hole Size:

0.2mm

Copper:

0.5OZ-10OZ

Component Sourcing:

Yes

Minimum Line Space:

0.10mm

Highlight:

Copper 0.5OZ flexible PCB fabrication

10OZ high precision PCB services

Complex electronic circuit PCB solutions

Product Description

High Precision PCB Fabrication Services

Our Custom PCB Manufacturing Service delivers exceptional quality and precision for complex electronic applications. We specialize in producing boards that meet the most demanding requirements of modern electronics, ensuring strict adherence to accuracy and reliability standards for both prototypes and large-scale production runs.

Key Manufacturing Capabilities

Our advanced manufacturing capabilities include achieving an impressively small minimum space of 0.075mm between circuit lines, enabling high-density designs and complex circuitry on smaller footprints. We support a minimum hole diameter of just 0.1mm for precise drilling of via holes and component leads, essential for multilayer boards and intricate circuit layouts.

Multilayer PCB Expertise

Our specialized multilayer PCB manufacturing process stacks and laminates multiple circuitry layers together, enhancing electrical performance, increasing circuit density, and reducing overall PCB size. This ensures superior signal integrity and electromagnetic compatibility for high-speed and high-frequency applications.

Advanced SMT Capability

Our facility features state-of-the-art equipment with Surface Mount Technology (SMT) capability of up to 14 million spots per day, accelerating production times while maintaining exceptional placement accuracy for surface-mount components.

Product Features

Product Name: PCB Manufacturing
Minimum Hole Size: 0.2mm
Minimum Hole Diameter: 0.1mm
Minimum Line Space: 0.10mm
Minimum Space: 0.075mm
Application: Electronics Device, Consumer Electronics
High accuracy and reliability printed circuit board fabrication
High precision PCB fabrication for detailed and complex circuit designs
Multilayer PCB manufacturing process for advanced electronic applications

Technical Parameters

Parameter	Specification
Min Space	0.075mm
Tolerance Of PTH	+/-0.05mm
Special Capability	Gold Finger Plating, Carbon Ink
Minimum Line Space	0.10mm
Layer Count	1-48
Max Layer	38L
Board Type	Rigid, Flexible, Rigid-flexible
Hole Min	0.1mm
Materials	Rogers, Nelco, PTFE, M6, TU862, TU872
Copper	0.5OZ-10OZ

Material Selection

We utilize premium substrates including Rogers, Nelco, PTFE, M6, TU862, and TU872, chosen for their excellent electrical properties, thermal stability, and durability. Rogers and PTFE materials are ideal for high-frequency circuits due to low dielectric loss, while Nelco and M6 offer robust mechanical strength and thermal resistance.

Applications

Our PCB manufacturing service serves diverse applications including consumer electronics (smartphones, tablets, wearable devices, smart home products), industrial equipment, medical devices, and telecommunications systems. Our multilayer capabilities with layer counts from 1 to 48 support complex designs requiring multiple signal layers, power planes, and ground layers.

Customization Services

Our Custom PCB Manufacturing Service provides high precision fabrication tailored to your specific requirements. We offer component sourcing to streamline your production process, with multilayer PCB manufacturing supporting intricate designs featuring internal copper thickness of 1.2mil and minimum space of 0.075mm.

Frequently Asked Questions

What materials are used in your PCB manufacturing process?

We use high-quality materials such as FR4, CEM-1, CEM-3, Rogers, and aluminum substrates to ensure durability and performance of the PCBs.

What is the typical turnaround time for PCB manufacturing?

Our standard turnaround time is typically 5-7 business days for prototype orders and 10-15 business days for mass production, depending on the complexity and quantity of the PCBs.

What is the maximum PCB size you can manufacture?

We can manufacture PCBs up to 24 x 30 inches (610 x 762 mm) in size. For larger or custom sizes, please contact our support team.

What layer options are available for custom PCBs?

We offer PCBs ranging from single-layer to 24-layer boards, accommodating various complexity and functionality requirements.

Can you handle both prototype and mass production orders?

Yes, we specialize in both rapid prototype PCB manufacturing and large-scale mass production with consistent quality and competitive pricing.
