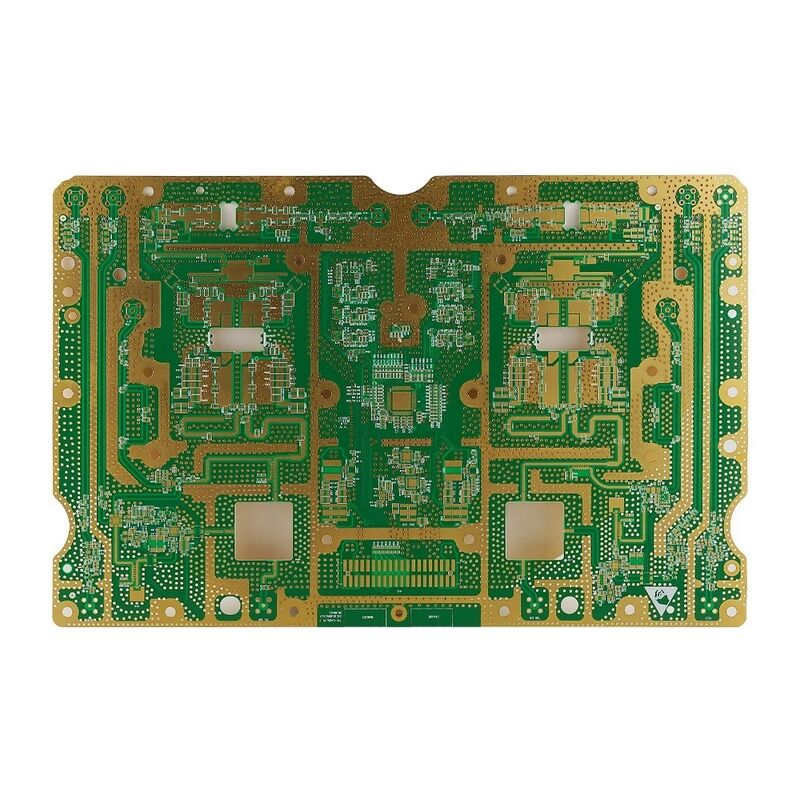

12 Layer Rogers PCB Security Device with HASL Green Soldermask
Rogers PCB is a high-performance printed circuit board built with dielectric materials manufactured by Rogers Corporation. Instead of the standard epoxy-glass FR-4, Rogers laminates use ceramic-filled hydrocarbon or PTFE composites that deliver far superior electrical properties at RF/microwave frequencies.
| Item | Specification |
|---|---|
| Layers | 1~64 |
| Board thickness | 0.1mm-10.0mm |
| Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers |
| Max panel size | 32"×48"(800mm×1200mm) |
| Min hole size | 0.075mm |
| Min line width | 3mil(0.075mm) |
| Surface finish | OSP, HASL, Imm Gold/Nickel/Ag, Electric gold |
| Copper thickness | 0.5-15 OZ |
| Soldermask | Green/Yellow/Black/White/Red/Blue |
| Silkscreen | Red/Yellow/Black/White |
| Min PAD | 5mil(0.13mm) |
| Inter package | Vacuum |
| Outer package | Carton |
| Outline tolerance | ±0.75mm |
| Hole tolerance | PTH:±0.05 NPTH:±0.025 |
| Certificate | UL, ISO 9001, ISO14001, IATF16949 |
| Special request | Blind hole+Gold finger + BGA |
| Material Suppliers | Shengyi, KB, Nanya, ITEQ, etc. |
