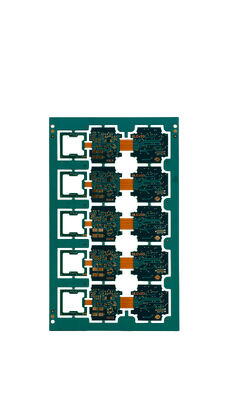

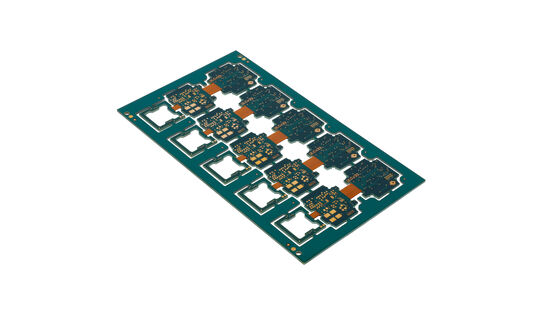

4 Layer(2 Layer FPC +1 Layer Rigid PCB +1 Layer FPC) Board for Radar

4 Layer(2 Layer FPC +1 Layer Rigid PCB +1 Layer FPC) Board for Radar

MOQ:	1
Price:	Inquiry Us
Payment Terms:	T/T
Supply Ability:	200,000+ m² PCB per Month

Detail Information

Product Description

Detail Information

Layers:

4 Layer

Board Thickness:

0.7mm+/-10%

Copper Thickness:

1OZ

Base Material:

Polyimide+FR4

Min. Line Width/Space:

0.10/0.10mm

Color:

Green

Service:

One Stop Turnkey Service

Supply Ability:

200,000+ m² PCB per Month

Highlight:

4 layer rigid flex PCB

radar FPC rigid PCB board

multilayer rigid flex circuit board

Product Description

4 Layer (2 Layer FPC + 1 Layer Rigid PCB + 1 Layer FPC) Board for Radar

This specialized rigid-flex PCB combines flexible and rigid substrates to create a high-performance circuit board specifically designed for radar applications, offering exceptional reliability in demanding environments.

What is Rigid-Flex PCB?

Rigid-Flex PCB is a composite structure circuit board that combines rigid printed circuit board (PCB) and flexible circuit board (FPC) technologies. It consists of two main components: rigid sections made from traditional PCB materials like FR-4 that provide stable electrical performance and mechanical strength, and flexible sections made from polyimide or polyester materials that offer high bending and folding resistance. These components are connected through specialized adhesives or welding processes to create a unified, reliable circuit assembly.

Features of Rigid-Flex PCB

Rigid-Flexible Combination: Rigid sections support core components while flexible sections enable bending
Space Saving Design: Replaces traditional cables and reduces device size for thin, lightweight applications
High Bending Resistance: Flexible sections withstand millions of bending cycles with extended lifespan
Signal Stability: Rigid sections ensure high-speed signal transmission with minimal interference
Enhanced Reliability: Excellent vibration resistance, high temperature tolerance, and adaptability to complex environments
Simplified Assembly: Integrated design reduces welding points and lowers overall manufacturing costs

Applications of Rigid-Flex PCB

Consumer Electronics: Smartphones, tablets, smart watches, digital cameras, and portable devices for space optimization and foldable designs
Medical Equipment: Pacemakers, medical imaging systems, portable instruments, and implantable devices requiring flexible connections in complex environments
Aerospace & Radar Systems: Aircraft instrument panels, navigation systems, communication equipment, and radar systems demanding lightweight, high reliability, and extreme environment resistance

Technical Parameters

Item	Specification
Layers	1~64
Board Thickness	0.1mm-10mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, Ceramic, etc
Max Panel Size	800mm×1200mm
Min Hole Size	0.075mm
Min Line Width/Space	Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance	±0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	17um--175um
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	17:01
Solder Mask Type	LPI
SMT Min. Solder Mask Width	0.075mm
Min. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm

One-Stop PCBs Solution

Advantages of DQS Team

On-time Delivery

15,000 ㎡ owned PCBA factories
13 fully automatic SMT production lines
4 dedicated DIP assembly lines

Quality Guaranteed

IATF, ISO, IPC, UL certified standards
Comprehensive online SPI, AOI, and X-Ray inspection systems
99.9% product qualification rate

Premium Service

24-hour response to customer inquiries
Comprehensive after-sales service system
Complete support from prototype development to mass production
