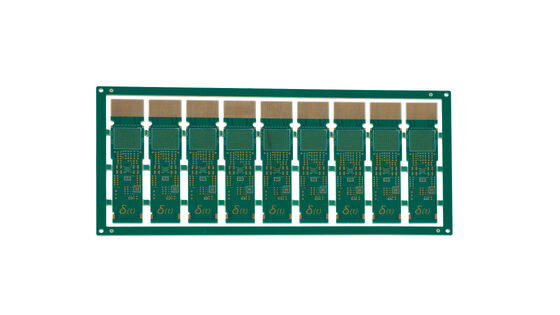

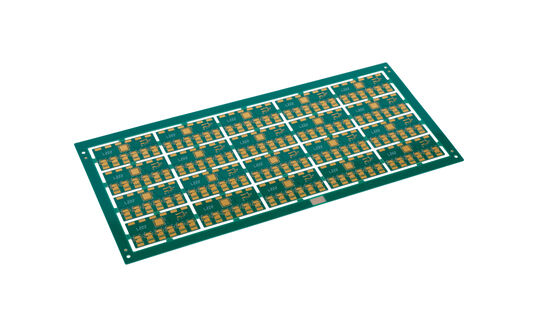

2 Layer Rigid PCB +2 Layer Flex PCB +2 Layer Rigid PCB （6 Layer Rigid Flex PCB）for Medical Device

2 Layer Rigid PCB +2 Layer Flex PCB +2 Layer Rigid PCB （6 Layer Rigid Flex PCB）for Medical Device

MOQ:	1
Price:	Contact Us
Payment Terms:	T/T
Supply Ability:	200,000+ m² PCB per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Layer:

6 Layers

Material:

Fr4+PI

Thickness:

0.5mm

Min. Line Width/Space:

0.1/0.1mm

Surface Treatment:

Immersion Gold/ENIG/HASL

Type:

Customizable

Application:

Medical Device

Standard:

UL&IPC Standard &ISO

Supply Ability:

200,000+ m² PCB per Month

Highlight:

6 layer rigid flex PCB

medical device rigid flex PCB

2 layer flex PCB rigid

Product Description

2 Layer Rigid PCB + 2 Layer Flex PCB + 2 Layer Rigid PCB (6 Layer Rigid Flex PCB) for Medical Device

Single Side Rigid-Flex PCB for Bluetooth Headset with 1oz Copper

What is Rigid-Flex PCB?

A Rigid-Flex PCB is a hybrid circuit board that combines rigid and flexible substrates into a single structure. It consists of multiple layers of rigid PCBs connected by flexible circuits, allowing for 3D bending, folding, and dynamic movement while maintaining electrical connections.

Structure of a Rigid-Flex PCB

Rigid Sections - Made of FR-4 or other rigid materials. Houses components (ICs, resistors, connectors).
Flexible Sections - Made of polyimide (e.g., Kapton) for bendability. Thin copper traces for conductivity.
Adhesive/Bonding Layers - Holds rigid and flex layers together.
Coverlay - Protective coating (like solder mask) for flex areas.

Technical Parameters

Item	Spec
Layers	1~64
Board Thickness	0.1mm-10 mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, Ceramic, etc
Max Panel Size	800mm×1200mm
Min Hole Size	0.075mm
Min Line Width/Space	Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance	±0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	17um--175um
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	17:01
Solder Mask Type	LPI
SMT Min. Solder Mask Width	0.075mm
Min. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm
