OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold

Place of Origin Shenzhen
Brand Name YScircuit
Certification ISO9001,UL,REACH, RoHS
Model Number YS-AL-0019
Minimum Order Quantity 1 piece
Price 0.03-6$/piece
Packaging Details Foam cotton + carton + strap
Delivery Time 2-8 days
Payment Terms T/T,PayPal, Alibaba pay
Supply Ability 251,000 square meter/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum Size According To Customer Request
Process Immersion Gold Surface Finishing HASL//ENIG
Type Electronic Board Size According To Customer Requirements
High Light

94v0 Aluminum Printed Circuit Boards

,

OEM Aluminum Printed Circuit Boards

,

Immersion Gold OEM Circuit Boards

Leave a Message
Product Description

China Professional OEM Manufacturing PCB Manufacturing PCB Board 94v0 LED Aluminum PCB

Manufacturing Difficulties of Aluminum PCB

The manufacturing process for nearly all aluminum PCBs is essentially the same. Here we will discuss the major manufacturing processes, the difficulties and their solutions.



1.Copper Etching: the copper foil used in Aluminum PCBs is comparatively thicker. If the copper foil is over 3oz however, the etching requires width compensation. If it is not according to the demand of the design, the trace width will be out of tolerance after etching. Therefore the trace width compensation should be designed accurately. The etching factors need to be controlled during manufacturing process.



2.Solder Mask Printing: due to the thick copper foil there is a difficulty in solder mask printing of aluminum PCB. This is because if the trace copper is too thick then the image etched will have a large difference between trace surface and base board and solder mask printing will be difficult. Therefore, the two-time solder mask printing is used. The solder mask oil used should be of good quality and in some cases the resin filling is done first and then solder mask.



3.Mechanical Manufacturing: the mechanical manufacturing process involves mechanical drilling, molding and v-scoring etc. which Is left on internal via. This tends to reduce electrical strength. Therefore, the electric milling and professional milling cutter should be utilized for low-volume manufacturing of products. The drilling parameters should be adjusted to prevent burr from generating. This will help your mechanical manufacturing.





YS Aluminum PCB manufacturing capabilities overview
Feature capabilities
Layer Count 1-4L
Thermal Conductivity(w/m.k) Aluminum PCB:0.8-10
Copper PCB:2.0-398
Board Thickness 0.4mm-5.0mm
copper Thickness 0.5-10OZ
Minimum line Width and Space 0.1mm/0.1mm(4mil/4mil)
Speciality Countersink,Counterbore drilling.etc.
Types of Aluminum Substrates 1000 series;5000 series;6000 series,3000 series.etc.
Min mechanical Drilled Size 0.2mm(8mil)
Surface Finish HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective OSP,ENEPIG.etc.
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc.





YScircuit Bare Boards Normally Delivery Time
layer/m² S<1㎡ S<3㎡ S<6㎡ S<10㎡ S<13㎡ S<16㎡ S<20㎡ S<30㎡ S<40㎡ S<50㎡ S<65㎡ S<85㎡ S<100㎡
1L 4wds 6wds 7wds 7wds 9wds 9wds 10wds 10wds 10wds 12wds 14wds 15wds 16wds
2L 4wds 6wds 9wds 9wds 11wds 12wds 13wds 13wds 15wds 15wds 15wds 15wds 18wds
4L 6wds 8wds 12wds 12wds 14wds 14wds 14wds 14wds 15wds 20wds 25wds 25wds 28wds
6L 7wds 9wds 13wds 13wds 17wds 18wds 20wds 22wds 24wds 25wds 26wds 28wds 30wds
8L 9wds 12wds 15wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
10L 10wds 13wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
12L 10wds 15wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
14L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
16L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds

 30wds



Aluminum PCB is one of the most widely used metal core PCBs, also called as MC PCB, aluminum-clad, or insulated metal substrate, etc.



Usually, aluminum PCB includes four layers: a substrate layer (aluminum layer), a dielectric layer (insulating layer), a circuit layer (copper foil layer), and an aluminum base membrane (protective layer).

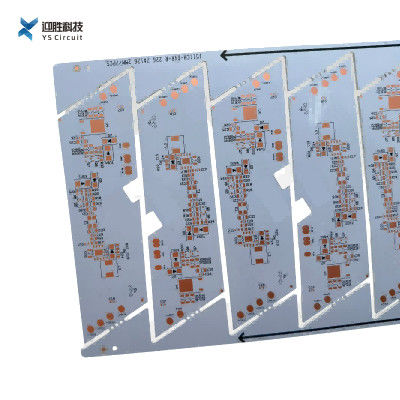

OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold 0

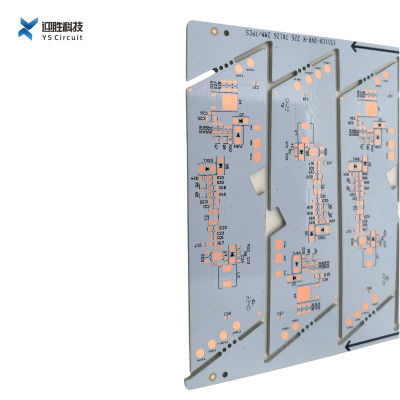

OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold 1

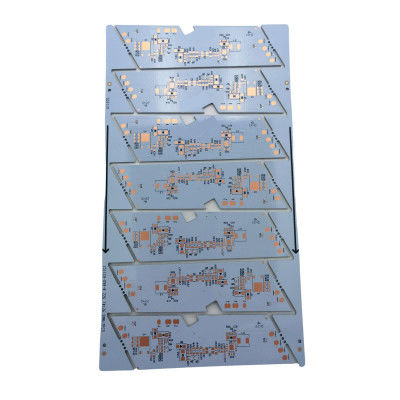

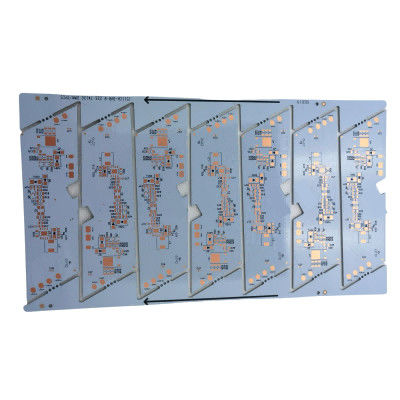

OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold 2OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold 3

OEM 94v0 LED Aluminum Printed Circuit Boards With Immersion Gold 4



WHAT IS AN ALUMINUM PCB?

A PCB generally consists of three layers. A conductive copper layer at the top, a dielectric layer in between, and a layer of a substrate at the bottom. Standard PCBs have a substrate layer made of fiberglass, ceramic, polymers, or any other non-metal core. An ample amount of PCBs uses FR-4 as the substrate.

Aluminum PCBs use an Aluminum substrate. Instead of standard FR-4 as the substrate material.

Circuit Copper Layer

This layer transmits signals over the entire PCB board.

The movement of charged particles generates heat.

This heat is transferred to the Aluminum substrate. Which dissipates it efficiently.

Insulating Layer

This layer is also known as the dielectric layer.

It is made of materials that are poor conductors of electricity.

It absorbs the heat generated in the above layer. And transfer it to the Aluminum substrate below it.

Substrate

The substrate acts as a foundation for the PCB.

It firmly holds the components above it. By changing the characteristics of the substrate, the performance of PCB varies.

For example, a rigid substrate provides strength and durability to the PCB board.

While a flexible substrate opens up more design options.



The aluminum substrate is used in power electronics-based applications where high thermal dissipation is required.

Due to its good thermal conductivity, it keeps heat away from vital electronic components. Thus ensuring minimal circuit damage.

ALUMINUM PCBs MANUFACTURED AT YScircuit

YScircuit is one of the finest manufacturers of Aluminum PCBs.

To increase the overall performance of the product, they provide a thermal clad layer to the Aluminum PCB.

It dissipates heat in a highly efficient manner. For high power and tight tolerance based applications Aluminum Backed PCB is the perfect choice among project makers.

Considering parameters like the coefficient of thermal expansion, thermal conductivity, strength, hardness, weight, and cost. Aluminum plate is an ideal choice for your project. You can modify your PCB substrate. PCBWay offers different Aluminum plates like 6061, 5052, 1060, and many more.

ADVANTAGES OF ALUMINUM PCB

1. The heat dissipation capacity of Aluminum PCBs is far better than standard PCBs.

2. Aluminum PCBs provide more strength and durability. As compared to ceramic and fiberglass-based PCBs.

3. It seems ironic, but aluminum-based PCBs are lighter. As compared to standard PCBs.

4. Thermal expansion and contraction of PCB components get reduce by using Aluminum PCB.

5. PCBs made of Aluminum are environmentally friendly. It is non-toxic and recyclable. It does not create any harmful impacts on our planet.

6. The assembling process of Aluminum PCB is easy than that of standard PCB.
