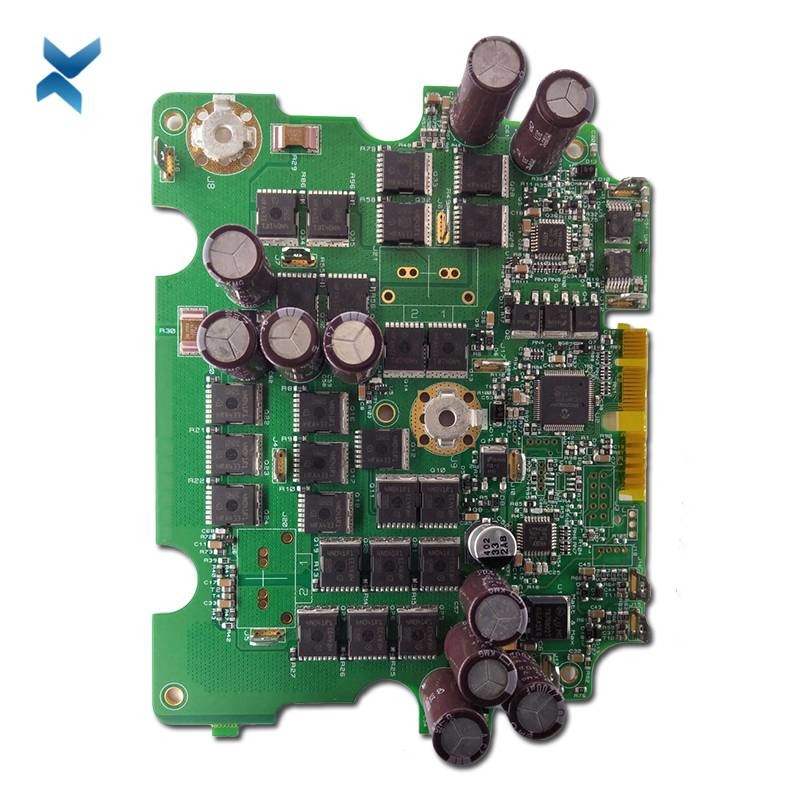

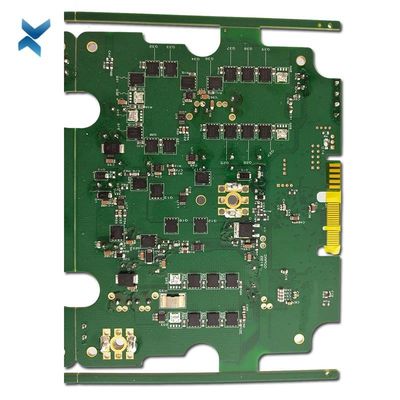

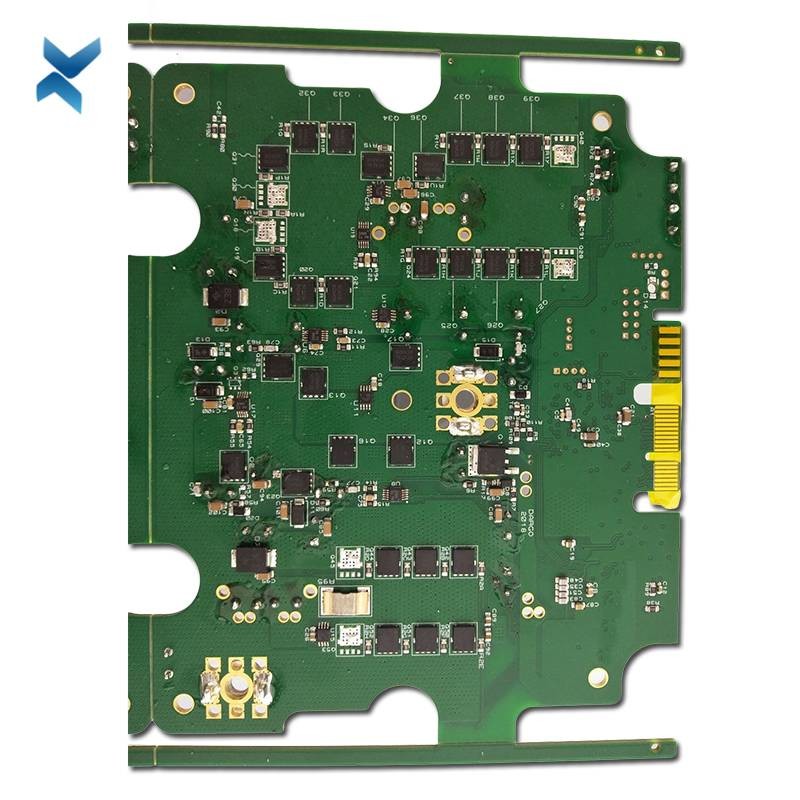

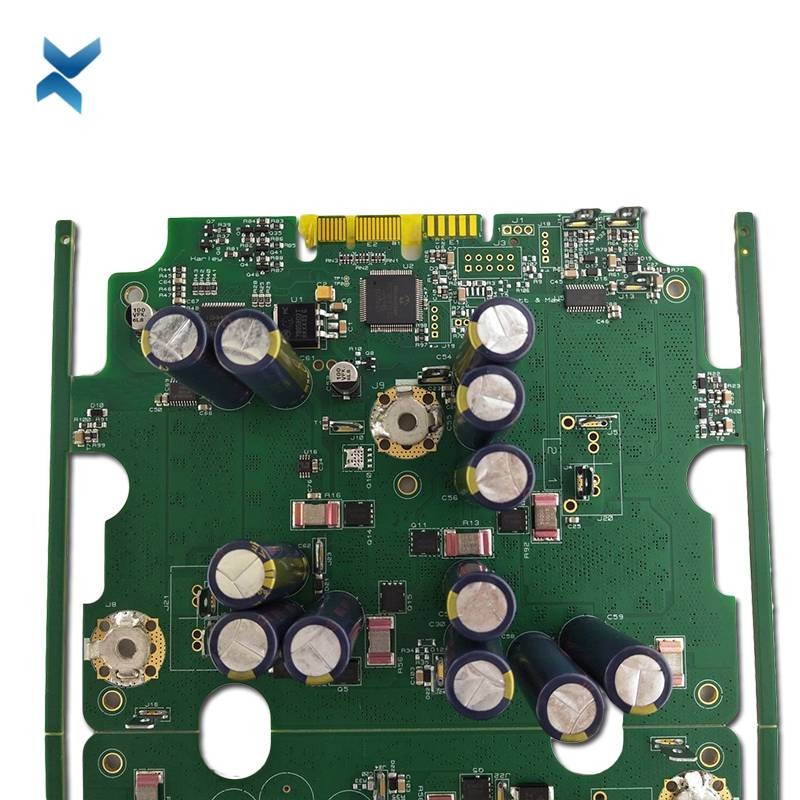

Electronic Turnkey PCB Assembly Trapezoid Shape For Energy Industry
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | YScircuit |
| Certification | ISO9001,UL,REACH, RoHS |
| Model Number | YS-KT-0004 |
| Minimum Order Quantity | 1 piece |
| Price | 0.04-5$/piece |
| Packaging Details | Foam cotton + carton + strap |
| Delivery Time | 2-8 days |
| Payment Terms | T/T，PayPal, Alibaba pay |
| Supply Ability | 251,000 square meter/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR4+Components | Size | 10*18cm |
|---|---|---|---|
| Process | Immersion Gold/sliver/Assembly | Surface Finishing | HASL/HASL-LF/ENIG/OSP |
| Shape | Trapezoid | Color | Light Green |
| Application | Energy | Name | Energy PCBA |
| High Light | Turnkey PCB Assembly Trapezoid,Energy Turnkey PCB Assembly,Assembly turnkey pcb electronics |
||
Product Description
One Stop Pcb Turnkey Pcba Assembly Service Electronic Design Boards For Energy
The Benefits of Turnkey Assembly
The most obvious benefit of turnkey PCB assembly is that businesses don’t have to take their focus off critical processes like continual innovation to spend time figuring out the assembly side.
There’s no need to expend time and energy finding the best component costs, going through a frustrating process of procurement and then needing an in-house team to assemble them skillfully.
The most significant benefits of turnkey assembly include:
1. Cost Reduction
With a turnkey contract, there is no extra cost to deliver freight to an assembly workshop, meaning you save a significant amount of money.
Turnkey services also have good working relationships with component manufacturers and can almost always get a better price for parts than small or medium businesses.
2. Issue Identification
A major time and money-saving advantage of turnkey PCB assembly is the ability to spot potential issues before the circuit boards make it into any products.
As part of the process, you submit a netlist file to the assembler.
Before assembly begins, the assembler will check to be sure specifications match the application and identify any errors that may be present.
Should any errors be found, you have the opportunity to correct the design and avoid being saddled with thousands of unsuitable circuit boards.
3. Streamlined Management
Dealing with multiple vendors can be stressful and a time drain, especially on small businesses with fewer human resources to go around.
With turnkey manufacturing solutions, you stand a far less chance of experiencing a miscommunication because you’re managing multiple channels of interaction.
These potential miscommunications can happen between you and a vendor, or even between vendors, and can lead to derailment of your timeline and wasted money.
YScircuit provide you with a single point of contact through which all business will be conducted, providing you with peace of mind and lightening the burden of management in the assembly of PCBs.
| Capability | Standard |
| Certifications: | ISO 9001: 2015, AS 9100 Rev D, ISO 13485: 2016 |
| Lead Time: | 1-5 Days, As per the scheduled period |
| Parts procurement: | Full Turnkey, Partial Turnkey, and Knitted |
| Assembly Types: | Surface Mount (SMT), Thru-hole, Mixed Technology, Single and double-sided SMT/PTH. |
| Stencils: | Laser cut stainless steel and Nano-coating |
| Components: | Passive components smallest size 0201, Fine pitch components smallest size 8 Mils pitch. |
| Component packaging: | Reels, Cut Tape, Tube, and lose parts. |
| Inspection: | X-ray analysis, AOI, and Microscope to 20X |
| Solder Type: | Leaded and Lead-free/ RoHS compliant |
| Assembly Surface mount connectors: | Yes |
| Wave Soldering: | Yes |
| PCB Finish: | SMOB/HASL, Electrolytic gold, Electroless gold, Electroless silver, Immersion gold, Immersion gold, Immersion tin, and OSP. |
| Panelized PCB: | Tab routed, Breakaway tabs, V-scored and Routed + V scored |
| Rework: | BGA removal and replacement station, SMT IR rework station, and Thru-hole reworks station. |
| Design file format: | Gerber RS-27, 274D, Eagle and Auto CAD's DXF, DWG BOM, and Pick and place a file |
| layer/m² | S＜1㎡ | S＜3㎡ | S＜6㎡ | S＜10㎡ | S＜13㎡ | S＜16㎡ | S＜20㎡ | S＜30㎡ | S＜40㎡ | S＜50㎡ | S＜65㎡ | S＜85㎡ | S＜100㎡ |
| 1L | 4wds | 6wds | 7wds | 7wds | 9wds | 9wds | 10wds | 10wds | 10wds | 12wds | 14wds | 15wds | 16wds |
| 2L | 4wds | 6wds | 9wds | 9wds | 11wds | 12wds | 13wds | 13wds | 15wds | 15wds | 15wds | 15wds | 18wds |
| 4L | 6wds | 8wds | 12wds | 12wds | 14wds | 14wds | 14wds | 14wds | 15wds | 20wds | 25wds | 25wds | 28wds |
| 6L | 7wds | 9wds | 13wds | 13wds | 17wds | 18wds | 20wds | 22wds | 24wds | 25wds | 26wds | 28wds | 30wds |
| 8L | 9wds | 12wds | 15wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 10L | 10wds | 13wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 12L | 10wds | 15wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 14L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 16L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
FQA
1. What are the various types of turnkey printed circuit board assembly.
Surface mount (SMT), through-hole, mixed technology, single and double-sided SMT/PTH.
2. Do I have to physically meet the PCB manufacturing service provider to get a quote?
PCB manufacturing service providers now have an instant online quoting portal after receiving necessary files (c).
3. What are the advantages of full turnkey PCB assembly service?
Full turnkey PCB assembly service has several advantages including easy management, low or high-volume assembly, multiple services, quick lead times and more!
4. How much time does it take to get the deliveries after placing the order of turnkey PCB assemblies?
Our expected delivery time starts from the next day you are placing the order, which depends on the quantity and complexity of your turnkey PCB assembly requirements.
5. Can you provide immediate delivery for PCB turnkey assembly in case of an immediate need?
Yes, but the delivery time depends on the quantity you are placing with us.
6. Do you offer conformal coating services of turnkey PCB assemblies?
Yes, we offer conformal coating services. For more information, please contact us at sales@yscircuit.com
7. What are the factors that determine the cost of turnkey printed circuit board assembly service?
There are several factors including
- Board Quantity
- Type of printed circuit boards
- Number of SMT Pads
- Number of Through Hole
- Number of BGA components and Parts
- Complexity of printed circuit board assembly & more
8. What type of testing done on my PCB assemblies?
We do visual inspection, AOI inspection, x-ray inspection, functional testing and more!
9. Where do you export turnkey printed circuit board assembly?
We are exporting turnkey printed circuit board assemblies in USA, Europe (Germany, France, Italy, Spain, etc.), UK, Australia, New Zealand & more.
10. How can get a quick quote for turnkey PCB assembly?
All you need to do is, send question and BOM files, Gerber files, etc. to sales@yscircuit.com, feel free to ask in case if you have any questions or queries.
