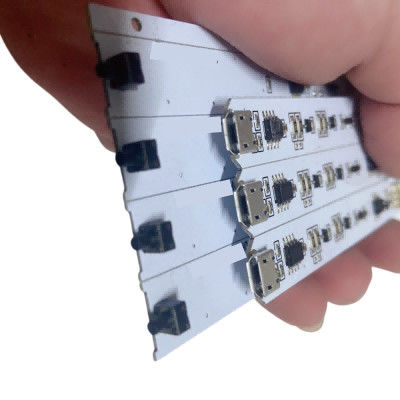

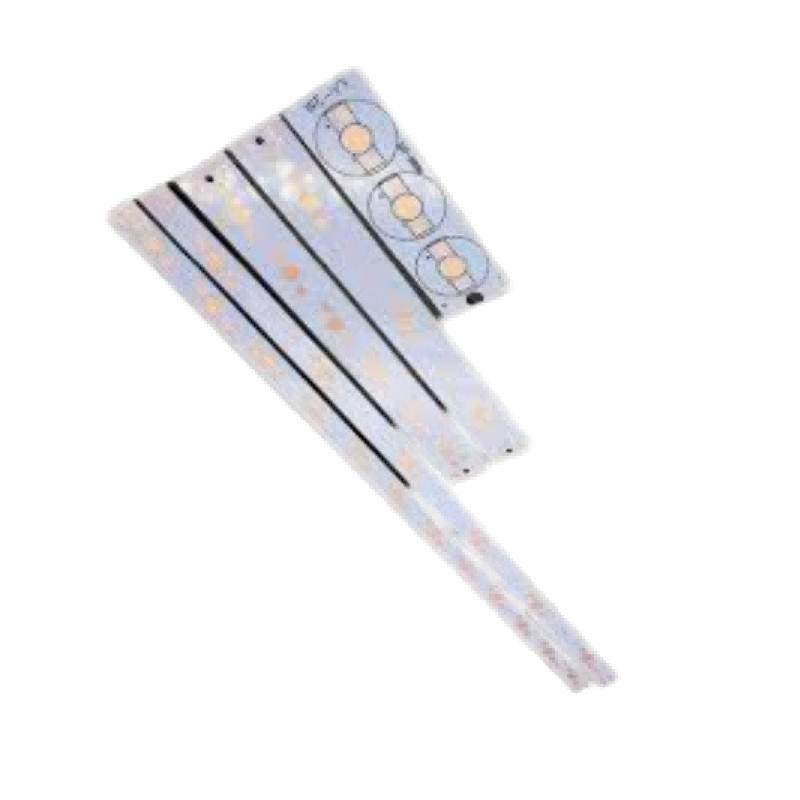

Metal Material Smd Turnkey PCB Assembly For Electronic Led Light
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | YScircuit |
| Certification | ISO9001,UL,REACH, RoHS |
| Model Number | YS-TK-0001 |
| Minimum Order Quantity | 1 piece |
| Price | 0.04-5$/piece |
| Packaging Details | Foam cotton + carton + strap |
| Delivery Time | 2-8 days |
| Payment Terms | T/T，PayPal, Alibaba pay |
| Supply Ability | 251,000 square meter/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Size | According To Customer Request |
|---|---|---|---|
| Process | Immersion Gold/sliver | Surface Finishing | HASL/HASL-LF/ENIG/OSP |
| Board Thickness | 1.6mm | Application | Electronic Products |
| Color | White | Name | LED Strip Light PCBA |
| High Light | Smd Turnkey PCB Assembly,Metal Turnkey PCB Assembly,Led smd pcb assembly |
||
Product Description
Long Size Pcb Smd Turnkey Pcba Print Circuit Board For Led Light
YScircuit TURNKEY PCB ASSEMBLY
Are you looking for one-step printed circuit board assembly services from a leading PCB manufacturer?
Then you are at the right place.
Some PCB assembly operations need some complicated tasks to be done in a specific time, splitting all the components on specific custom PCB locations.
PCB turnkey assembly is a faster form of PCB assembly where you need to focus on the PCB design, while the manufacturer can manage everything, and it is the major reason why YScircuit is one of the leading firms of the printed circuit board assembly!
Industries must manage reliable turnkey printed circuit board assembly that can provide smooth operations to your organization, which will help you get time-efficient work.
YScircuit can offer turnkey printed circuit board assembly to let you get the best-printed circuit board assembly services.
The printed circuit boards can give you immediate operation in the organization, which will allow you to handle all aspects of PCB operation in the organization.
The circuit boards are pennyworth for the organization, and it is most effective for small businesses. You have to focus on the Printed Circuit Boards' designs, and the manufacturing services will take care of the remaining PCB assembly process.
There are many demanding deliberations based on the plan for the level of production volumes and type of production in the PCB assembly project. To make sure that no criteria are overlooked and missed upon, we scrutinize and analyze all the aspects of your turnkey PCB assembly projects. Our flexibility to use human resource and machines with moderate technologies proves our reliability to load the project at the right time and economy.
We have adopted flexibility to provide prototyping services with full or partial turnkey PCB assembly wherein the components and all the inputs needed in the PCB manufacturing as per the specifications in the BOM and Gerber File are being arranged by us fully or partially.
Our core focus is to give optimal cost-effective inventory management services with a dynamic approach to utilization of manpower and machine as it is totally dependent on the low or high run production with accurate results.
Our global outlay has made it possible to adopt an effective procurement process of the components used in the PCB production to toss around the ease and difficulty in obtaining those components.
| Capability | Standard |
| Certifications: | ISO 9001: 2015, AS 9100 Rev D, ISO 13485: 2016 |
| Lead Time: | 1-5 Days, As per the scheduled period |
| Parts procurement: | Full Turnkey, Partial Turnkey, and Knitted |
| Assembly Types: | Surface Mount (SMT), Thru-hole, Mixed Technology, Single and double-sided SMT/PTH. |
| Stencils: | Laser cut stainless steel and Nano-coating |
| Components: | Passive components smallest size 0201, Fine pitch components smallest size 8 Mils pitch. |
| Component packaging: | Reels, Cut Tape, Tube, and lose parts. |
| Inspection: | X-ray analysis, AOI, and Microscope to 20X |
| Solder Type: | Leaded and Lead-free/ RoHS compliant |
| Assembly Surface mount connectors: | Yes |
| Wave Soldering: | Yes |
| PCB Finish: | SMOB/HASL, Electrolytic gold, Electroless gold, Electroless silver, Immersion gold, Immersion gold, Immersion tin, and OSP. |
| Panelized PCB: | Tab routed, Breakaway tabs, V-scored and Routed + V scored |
| Rework: | BGA removal and replacement station, SMT IR rework station, and Thru-hole reworks station. |
| Design file format: | Gerber RS-27, 274D, Eagle and Auto CAD's DXF, DWG BOM, and Pick and place a file |
| layer/m² | S＜1㎡ | S＜3㎡ | S＜6㎡ | S＜10㎡ | S＜13㎡ | S＜16㎡ | S＜20㎡ | S＜30㎡ | S＜40㎡ | S＜50㎡ | S＜65㎡ | S＜85㎡ | S＜100㎡ |
| 1L | 4wds | 6wds | 7wds | 7wds | 9wds | 9wds | 10wds | 10wds | 10wds | 12wds | 14wds | 15wds | 16wds |
| 2L | 4wds | 6wds | 9wds | 9wds | 11wds | 12wds | 13wds | 13wds | 15wds | 15wds | 15wds | 15wds | 18wds |
| 4L | 6wds | 8wds | 12wds | 12wds | 14wds | 14wds | 14wds | 14wds | 15wds | 20wds | 25wds | 25wds | 28wds |
| 6L | 7wds | 9wds | 13wds | 13wds | 17wds | 18wds | 20wds | 22wds | 24wds | 25wds | 26wds | 28wds | 30wds |
| 8L | 9wds | 12wds | 15wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 10L | 10wds | 13wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 12L | 10wds | 15wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 14L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
| 16L | 10wds | 16wds | 17wds | 18wds | 20wds | 20wds | 22wds | 24wds | 26wds | 27wds | 28wds | 30wds | 30wds |
FQA
1. What are the various types of turnkey printed circuit board assembly.
Surface mount (SMT), through-hole, mixed technology, single and double-sided SMT/PTH.
2. Do I have to physically meet the PCB manufacturing service provider to get a quote?
PCB manufacturing service providers now have an instant online quoting portal after receiving necessary files (c).
3. What are the advantages of full turnkey PCB assembly service?
Full turnkey PCB assembly service has several advantages including easy management, low or high-volume assembly, multiple services, quick lead times and more!
4. How much time does it take to get the deliveries after placing the order of turnkey PCB assemblies?
Our expected delivery time starts from the next day you are placing the order, which depends on the quantity and complexity of your turnkey PCB assembly requirements.
5. Can you provide immediate delivery for PCB turnkey assembly in case of an immediate need?
Yes, but the delivery time depends on the quantity you are placing with us.
6. Do you offer conformal coating services of turnkey PCB assemblies?
Yes, we offer conformal coating services. For more information, please contact us at sales@yscircuit.com
7. What are the factors that determine the cost of turnkey printed circuit board assembly service?
There are several factors including
- Board Quantity
- Type of printed circuit boards
- Number of SMT Pads
- Number of Through Hole
- Number of BGA components and Parts
- Complexity of printed circuit board assembly & more
8. What type of testing done on my PCB assemblies?
We do visual inspection, AOI inspection, x-ray inspection, functional testing and more!
9. Where do you export turnkey printed circuit board assembly?
We are exporting turnkey printed circuit board assemblies in USA, Europe (Germany, France, Italy, Spain, etc.), UK, Australia, New Zealand & more.
10. How can get a quick quote for turnkey PCB assembly?
All you need to do is, send question and BOM files, Gerber files, etc. to sales@yscircuit.com, feel free to ask in case if you have any questions or queries.
