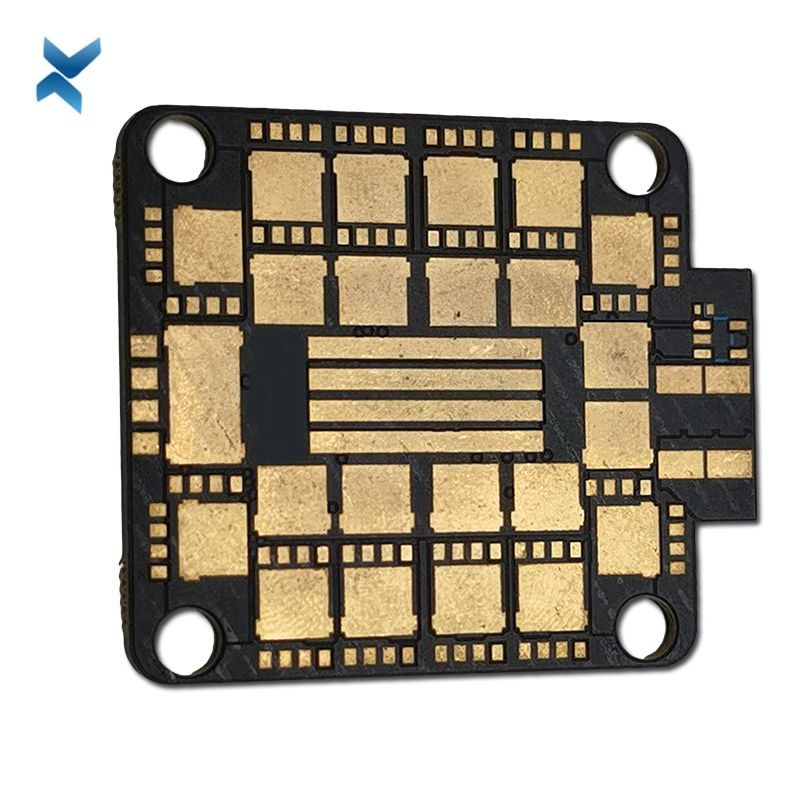

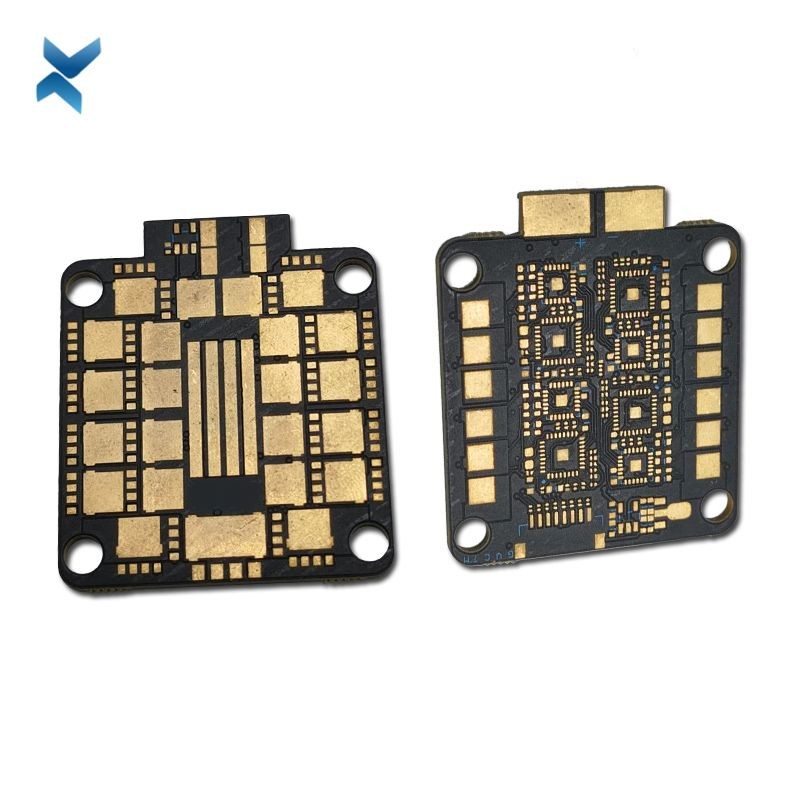

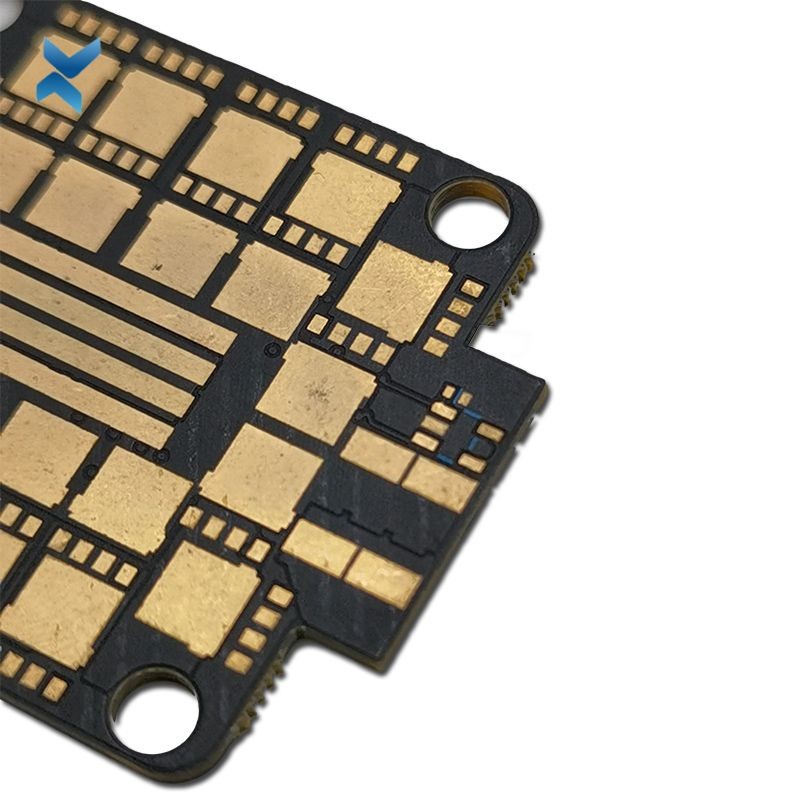

Custom Isola Printed Circuit Board Assembly 8 Layers For Air Conditioner

Send inquiry and questions to info@yscircuit.com , YScircuit will be your good PCB Manufacturer and Consultant.

If you want to find other high frequency PCB material .

You come to right place, Dupont PCB, Arlon PCB , Rogers PCB,Teflon PCB. etc.

Normally we have material in stock , If special Part number, We can buy material for you .

Donot wait anymore, send inquiry to sales@yscircuit.com , YScircuit will be your good PCB Manufacturer.

Have you been hoping to learn about Isola PCB?

Here we will be revealing to you everything possible about Isola PCB.

These include its uses, properties, features, quality testing, laminate material, quality certification, and more.

Please continue reading to become an Isola PCB expert.

What are the Quality Certifications for Isola PCB?

The major quality standards where the best Isola PCB materials ought to work with include:

• ISO certification
• REACH certification
• UL certification
• RoHS certification

Which is Better: Isola PCB vs. Nelco PCB?
When it comes to performance, Nelco PCB is better.

This is because Nelco PCB offers both superior thermal and mechanical performance.

Asides from this, all the materials of Nelco PCB comply with the RoHS standards, and majority of them offer high thermal dependability.

This makes them work with lead-free assembly. Asides from this, Nelco PCB materials come in several types.

What Differentiates the Isola 185HR and 370HR?
The laminate and prepreg materials of the 185HR Isola PCB are made using the copyrighted technology of Isola, and strengthened with the use of E-glass (electrical grade glass) fabric.

This system provides a lesser Z-axis expansion, 340 degree Celsius decomposition temperature and reduced loss when comparing it with competitors.

Moreover, the system of the Isola 185HR is laser fluorescence and UV blocking. This ensures maximum feasibility with:

• Systems for optical positioning
• Solder mask imaging (photoimageable)
• Optical inspection systems (automated)

The laminates and prepregs of 370HR Isola PCB, on the other hand are produced utilizing the high performance FR-4 epoxy resin complex.

The Isola 370HR material was put together for multilayer PCB and its glass transition temperature is 180 degree Celsius.

This temperature is great for applications that require optimal thermal performance and spectacular CAF resistance.

This system offers moisture, mechanical, and chemical resistance, which are equivalent to do better than the performance of normal FR-4 materials.

Asides from this, in serial lamination designs, the 370HR has proved its ease of processing and great performance.

What is the Rheology in Isola PCB Fabrication?
When manufacturing printed circuit boards, the study of the flow of material when it is subjected to heat and pressure is referred to as Rheology. This allows users to characterize the viscosity of a material as a function of temperature, heat rise rate, applied shear, and other factors.

This lets users obtain press lamination-related data. The standard model used in describing PCB materials’ Rheology deals with two parallel plates that have material to be designated placed in the middle.

From the pattern, one of the plates drifts to the other in a parallel way.

Conclusion
By now, you should have gained wide knowledge about Isola PCB.

This printed circuit board is a complex one, which is fabricated making use of high-performance laminate materials.

This PCB type is used in the majority of electronic equipment such as aerospace equipment and high-grade consumer electronics.
