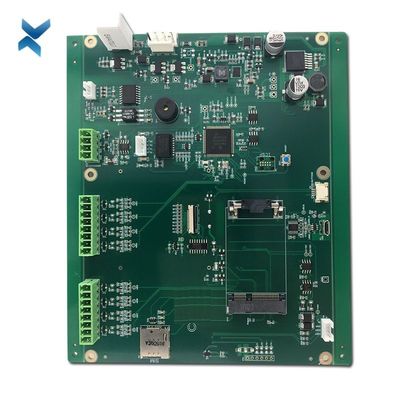

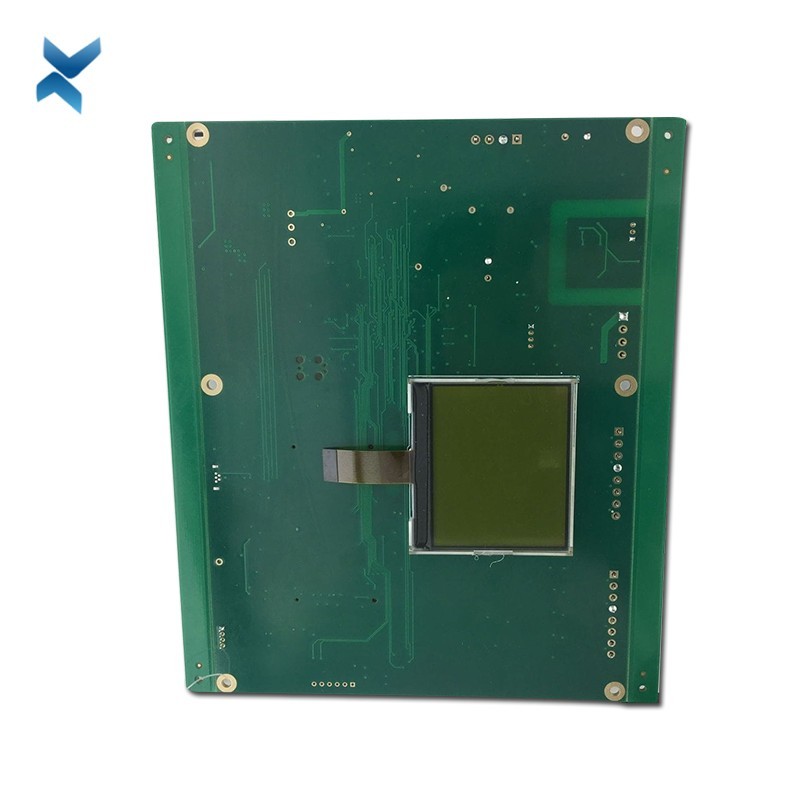

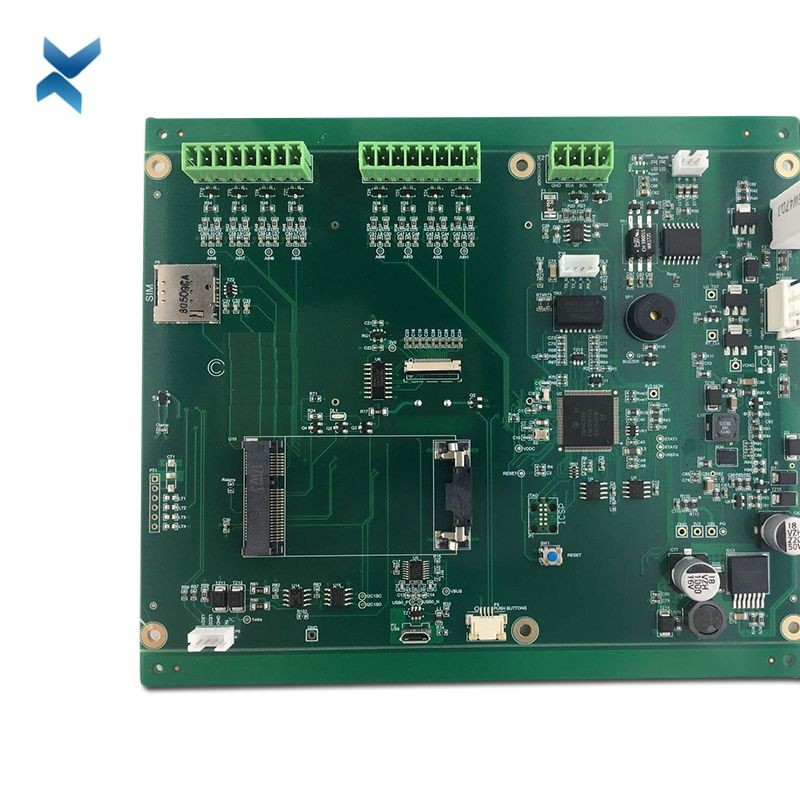

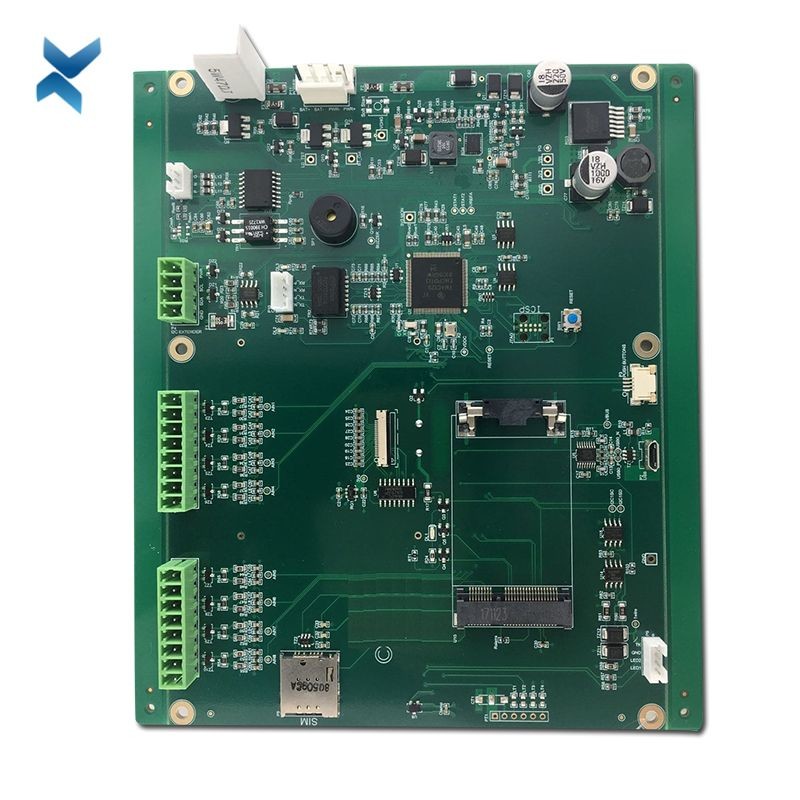

Electronic Multilayer PCB Turn Key Assembly For Transportation OEM

Customized Electronic Circuit Board Turnkey Service Multilayer PCBA Assembly

YScircuit TURNKEY PCB ASSEMBLY

Partial Turnkey vs. Full Turnkey

Turnkey PCB assembly comes in two varieties: partial and full. Partial turnkey services are a form of consignment manufacturing, in which only part of the assembly process is outsourced.

In a partial turnkey project, the technology developer retains responsibility for a portion of the supply chain.

This can mean involvement in purchasing or assembly.

The consignment model sees the tech developer in charge of obtaining, sorting and packaging materials for delivery to the assembler.

For businesses that already have a majority of the necessary parts on hand, partial turnkey services can expedite the manufacturing process and save money.

However, if you don’t have parts, aren’t sure where to order the right ones or don’t know which components are right for your circuit board design, full turnkey service is the more appropriate option.

Full turnkey PCB assembly sees your assembly provider do all the work of putting your circuit boards together.

They source the parts and create the circuit order. All you have to do is provide:

A bill of materials

• Gerber Files
• Product dimensions
• Packaging and shipping information

Please note, if you do not have the resources listed above please reach out to us and we can help procure everything needed to start the process.

A full turnkey service is naturally more of an investment than a partial or consignment service, we can dramatically improve your experience with acquiring PCBs — especially if you are new to dealing with circuit boards.

FQA

1. What are the various types of turnkey printed circuit board assembly.
Surface mount (SMT), through-hole, mixed technology, single and double-sided SMT/PTH.

2. Do I have to physically meet the PCB manufacturing service provider to get a quote?

PCB manufacturing service providers now have an instant online quoting portal after receiving necessary files (c).

3. What are the advantages of full turnkey PCB assembly service?
Full turnkey PCB assembly service has several advantages including easy management, low or high-volume assembly, multiple services, quick lead times and more!

4. How much time does it take to get the deliveries after placing the order of turnkey PCB assemblies?

Our expected delivery time starts from the next day you are placing the order, which depends on the quantity and complexity of your turnkey PCB assembly requirements.

5. Can you provide immediate delivery for PCB turnkey assembly in case of an immediate need?
Yes, but the delivery time depends on the quantity you are placing with us.

6. Do you offer conformal coating services of turnkey PCB assemblies?
Yes, we offer conformal coating services. For more information, please contact us at sales@yscircuit.com

7. What are the factors that determine the cost of turnkey printed circuit board assembly service?
There are several factors including

• Board Quantity
• Type of printed circuit boards
• Number of SMT Pads
• Number of Through Hole
• Number of BGA components and Parts
• Complexity of printed circuit board assembly & more

8. What type of testing done on my PCB assemblies?
We do visual inspection, AOI inspection, x-ray inspection, functional testing and more!

9. Where do you export turnkey printed circuit board assembly?
We are exporting turnkey printed circuit board assemblies in USA, Europe (Germany, France, Italy, Spain, etc.), UK, Australia, New Zealand & more.

10. How can get a quick quote for turnkey PCB assembly?
All you need to do is, send question and BOM files, Gerber files, etc. to sales@yscircuit.com, feel free to ask in case if you have any questions or queries.
