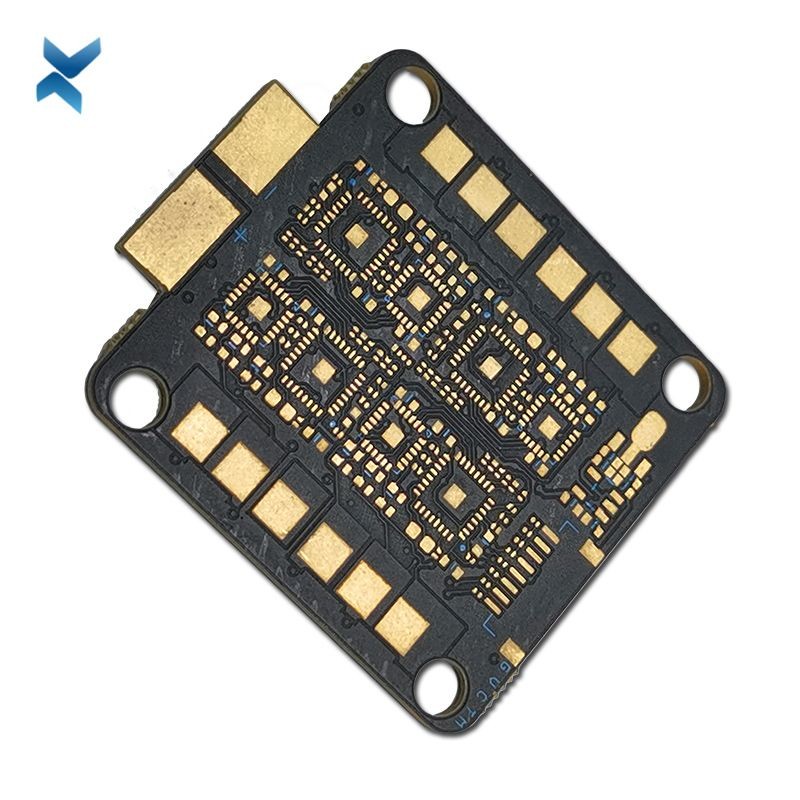

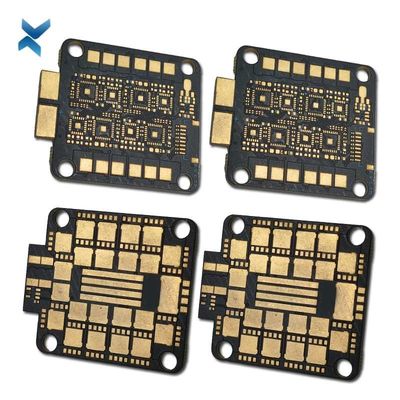

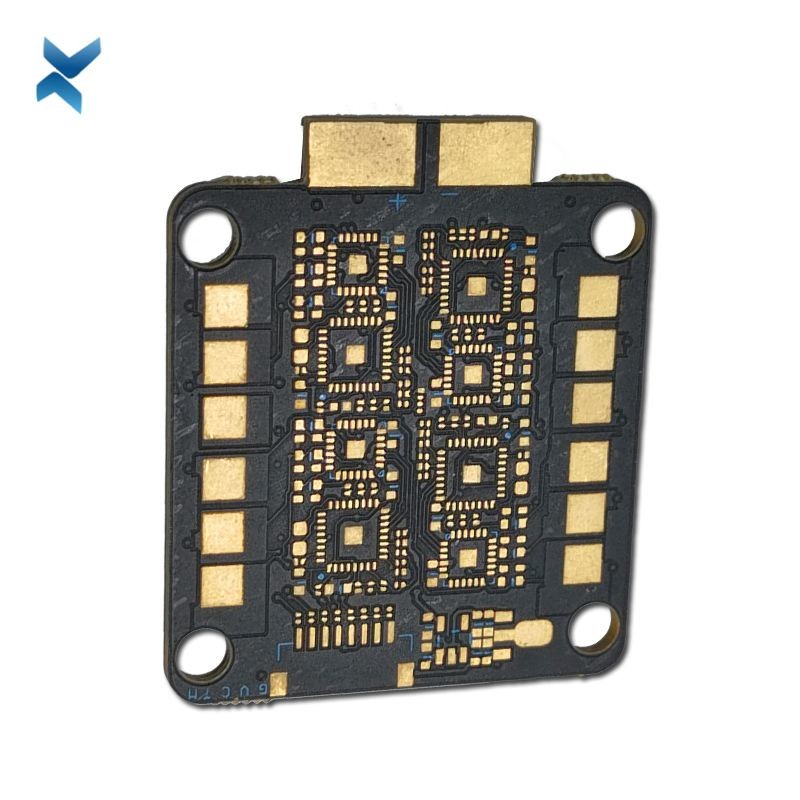

Double Sided Isola PCB Printed Circuit Board 94v0 2 Layer Multilayer

Isola Double-sided Pcb Hasl Electronic Pcba Maker 94v0 2 Layer Printed Circuit Board Multilayer PCB

Don't wait anymore to send inquiry to info@yscircuit.com , YScircuit will be your good PCB Manufacturer and Consultant.

If you want to find other high frequency PCB material .

You come to right place, Dupont PCB, Arlon PCB , Rogers PCB,Teflon PCB. etc.

Normally we have material in stock , If special Part number, We can buy material for you .

Donot wait anymore, send inquiry to sales@yscircuit.com , YScircuit will be your good PCB Manufacturer.

Have you been hoping to learn about Isola PCB?

Here we will be revealing to you everything possible about Isola PCB.

These include its uses, properties, features, quality testing, laminate material, quality certification, and more.

Please continue reading to become an Isola PCB expert.

What Laminate Materials are Utilized in Isola PCB

Now, let’s consider some common laminate materials that can be used when manufacturing Isola PCBs:

Astra MT77
This laminate material of Isola PCB has great electrical features that are steady over a wide range of frequency and temperature.

It has a steady dielectric constant that falls within the range of -40 degrees Celsius and +140 degrees Celsius.

In addition Isola Astra MT77 offers a dissipation factor of 0.0017, which is very low.

This is why it is a less expensive alternative to PTFE, as well as other commercial microwave laminate materials for PCB.

This laminate material is great for a good number of today’s RF/microwave PCB designs.

DE104
The DE104 offers a great thermal resistance due to a low CTE and a great unique resin system in the Z-axis.

DE104 also comes with a decomposition and glass temperature of 315 and 135 degrees Celsius respectively.

The laminate time for it to delaminate at a temperature of 260 degrees is 12 minutes.

This material may be processed using ordinary parameters and is usually catalogued as FR-4.

ED130UV
The epoxy laminate of ED130UV allows you to meet the specifications necessary for PCB construction making use of UV blocking materials. These Isola PCB laminates utilize an epoxy resin base that has advanced epoxy face plies.

The ED130UV goes a long way in UV fluorescence and blocking if making use of Automated Optical Inspection.

FR402
This is made up of tetrafunctional epoxy resin, which is made for applications requiring multilayer Isola PCB, which requires performance properties that surpass difunctional epoxies.

The FR402 formulation came to be to improve accuracy, as well as throughput AOI devices that are laser-based. Asides from this, it offers great resistance to chemical and thermal degradation.

FR406
This Isola PCB laminate forms the benchmark of the industry for high performance materials of epoxy PCBs.

This is designed to meet the multilayer PCB specifications, while ensuring that the conventional FR-4 processing is retained.

The FR406 offers great chemical and thermal performance, product consistency, and enhanced dimensional control.

FR408
The Isola FR408 is a type of high-performance epoxy PCB laminate and prepreg, which is designed to ensure improved PCB applications.

It features a low dielectric constant and dissipation factor.

This is why they are great for broadband PCB designs that require faster signal speeds or enhanced signal integrity.

This Isola PCB material works fine with most FR-4 processes.

With this property, you’ll be able to utilize FR408 minus integrating complexity to the fabrication methods used today.

FR408HR
This Isola material is a high-performance one with a temperature of 230 degrees Celsius.

This FR-4 system is great for multilayer PCB applications requiring optimal thermal performance and reliability.

The Isola FR408HR laminate materials and prepreg are fabricated making use of the copyrighted multifunctional resin complex, which are strengthened using E-glass fabric.

With its great resistance to moisture during reflow, as well as other great features, this forms a product, which closes the void from the thermal and electrical perspective.

This Isola PCB material also offers UV blocking and laser fluorescing to ensure maximal compatibility with:

• Optical positioning systems
• Optical inspection systems that are automated and
• Solder mask imaging

Another material used is Isola tachyon material.
