Electronic Pcb Printed Circuit Assembly 0.5OZ Copper Thickness

Place of Origin Shenzhen
Brand Name YScircuit
Certification ISO9001,UL,REACH, RoHS
Model Number YS-PCBA-00030
Minimum Order Quantity 1 piece
Price 0.04-5$/piece
Packaging Details Foam cotton + carton + strap
Delivery Time 2-8 days
Payment Terms T/T,PayPal, Alibaba pay
Supply Ability 251,000 square meter/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material FR4 Size According To Customer Request
Process Immersion Gold/sliver/Assembly Surface Finishing HASL/HASL-LF/ENIG/OSP
Base Material FR-4 Copper Thickness 0.5OZ-6OZ
Min. Line Spacing 0.1mm Board Thickness 1.6mm
High Light

Pcb Printed Circuit Assembly

,

Electronic Printed Circuit Assembly

,

0.5OZ electronic pcb assembly

Leave a Message
Product Description

PCB Layout and Assembly Customized Design Professional PCB PCBA Assembly Circuit Board Manufacture Pcb design

Wave Soldering

Our wave soldering machine is fairly standard. PCBs go into special carriers and traverse the conveyor through the flux applicator into pre-heating and finally onto the wave itself. We use non-corrosive flux where possible and the wave soldering machine usually has fairly standard 63/37 solder in it. We offer PCB cleaning, for conformal coating or similar process, but if corrosive flux is used the PCBs must be cleaned anyway.

Considerations to thermal shock, heat sinks (actual and large ground planes with direct connections), thermal sensitivity of some parts and potential contaminants are very important in the wave soldering process



YScircuit HDI PCB manufacturing capabilities overview
Feature capabilities
Layer Count 4-60L
Available HDI PCB Technology 1+N+1
2+N+2
3+N+3
4+N+4
5+N+5
Any layer
Thickness 0.3mm-6mm
Minimum line Width and Space 0.05mm/0.05mm(2mil/2mil)
BGA PITCH 0.35mm
Min laser Drilled Size 0.075mm(3nil)
Min mechanical Drilled Size 0.15mm(6mil)
Aspect Ratio for laser hole 0.9:1
Aspect Ratio for through hole 16:1
Surface Finish HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective
Via Fill Option The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over
Copper filled, silver filled
Laser via copper plated shut
Registration ±4mil
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc.

YScircuit Bare Boards Normally Delivery Time
layer/m² S<1㎡ S<3㎡ S<6㎡ S<10㎡ S<13㎡ S<16㎡ S<20㎡ S<30㎡ S<40㎡ S<50㎡ S<65㎡ S<85㎡ S<100㎡
1L 4wds 6wds 7wds 7wds 9wds 9wds 10wds 10wds 10wds 12wds 14wds 15wds 16wds
2L 4wds 6wds 9wds 9wds 11wds 12wds 13wds 13wds 15wds 15wds 15wds 15wds 18wds
4L 6wds 8wds 12wds 12wds 14wds 14wds 14wds 14wds 15wds 20wds 25wds 25wds 28wds
6L 7wds 9wds 13wds 13wds 17wds 18wds 20wds 22wds 24wds 25wds 26wds 28wds 30wds
8L 9wds 12wds 15wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
10L 10wds 13wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
12L 10wds 15wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
14L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds 30wds
16L 10wds 16wds 17wds 18wds 20wds 20wds 22wds 24wds 26wds 27wds 28wds 30wds
30wds

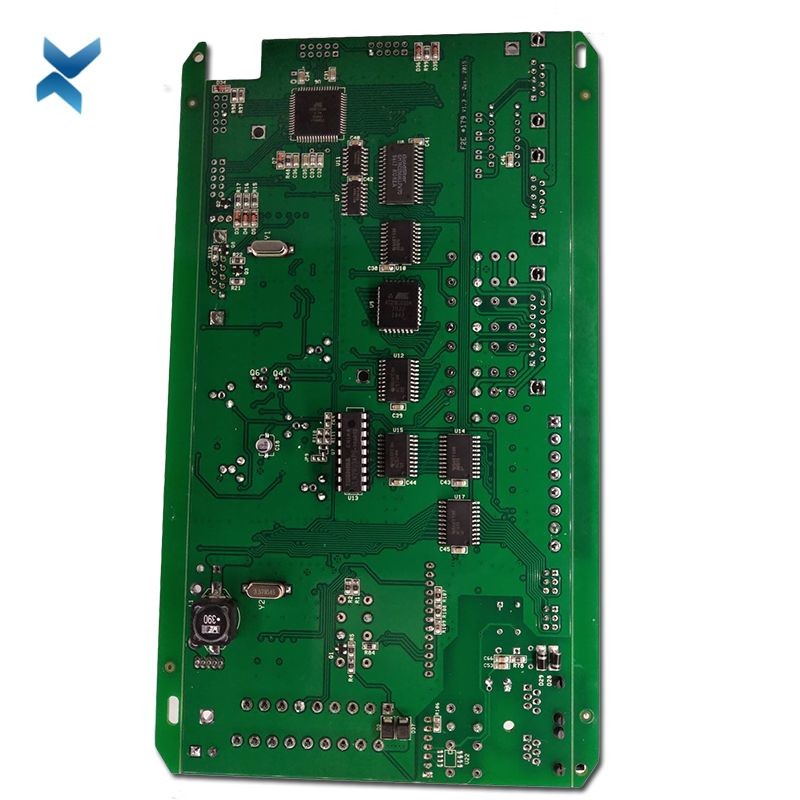

Electronic Pcb Printed Circuit Assembly 0.5OZ Copper Thickness 0

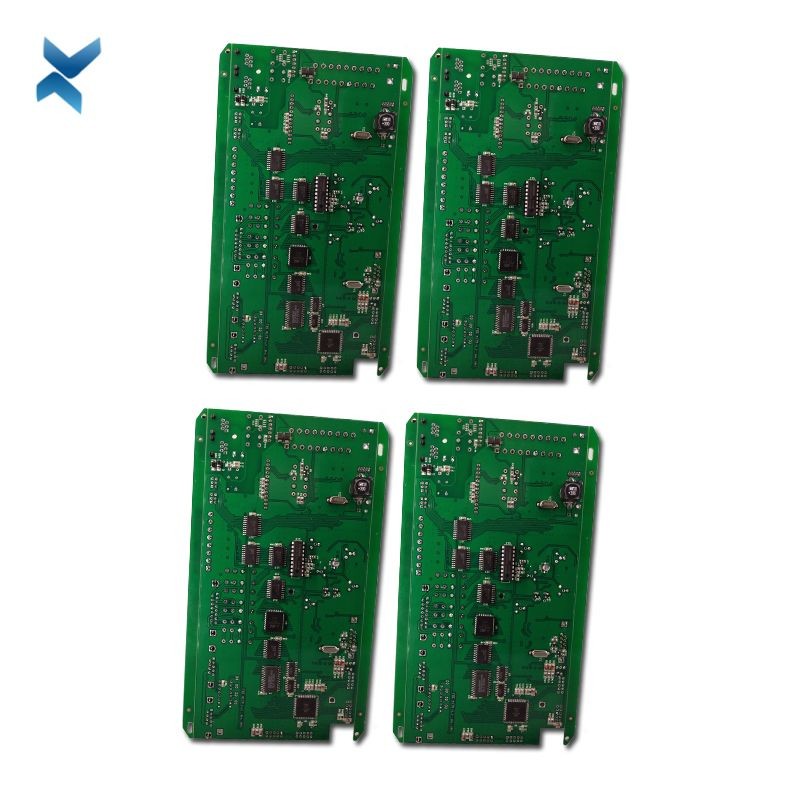

Electronic Pcb Printed Circuit Assembly 0.5OZ Copper Thickness 1

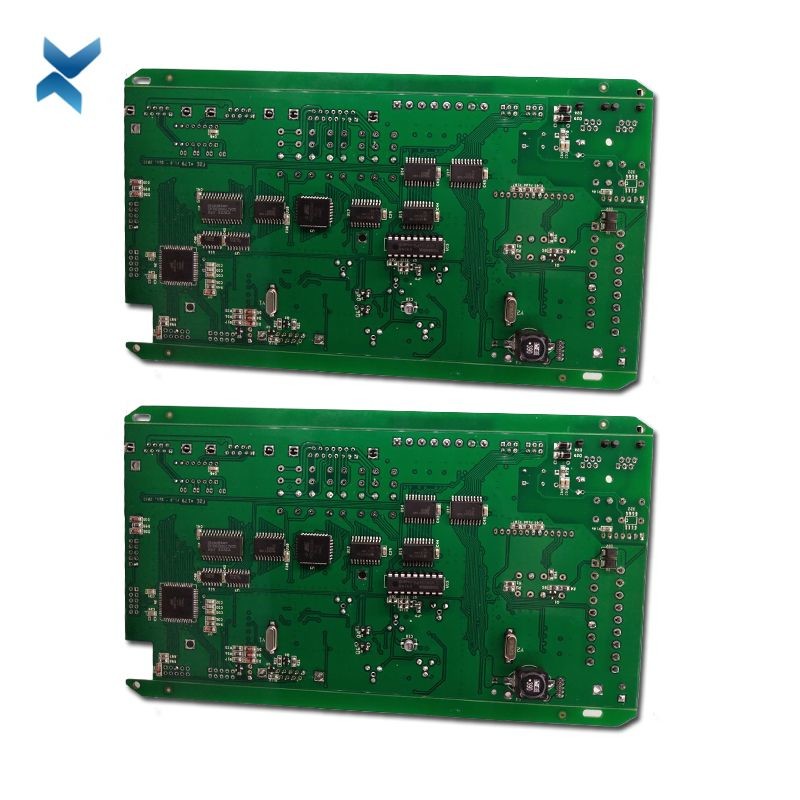

Electronic Pcb Printed Circuit Assembly 0.5OZ Copper Thickness 2

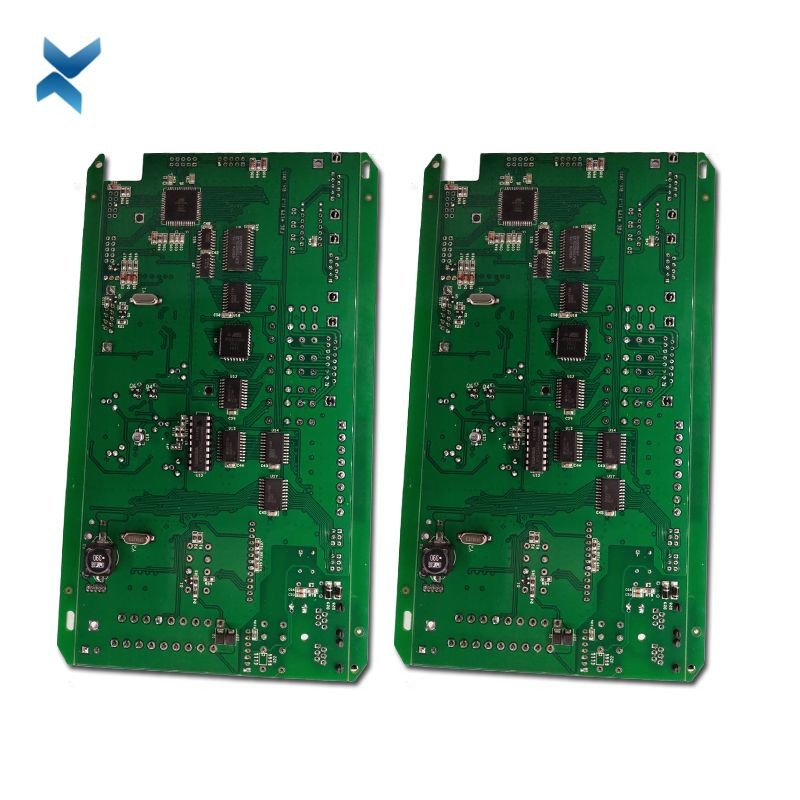

Electronic Pcb Printed Circuit Assembly 0.5OZ Copper Thickness 3
