White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated

White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Place of Origin:
China
Layer:
2 Layer
Model:
12W LED PCB Board
Base Material:
Aluminum
Min. Line Width/Space:
0.1/0.1mm
Color:
White
Kong Tolerance:
PTH: + 0.075, NTPH: + 0.05
Application:
LED Light
Certificate:
UL,CE,Rohs,IATF16949,ISO
Type:
Customizable
Supply Ability:
200,000+ m² PCB per Month
Highlight:

12W aluminum pcb board

,

SMD 2835 aluminum pcb board

,

SMD 2835 aluminium led pcb

Product Description

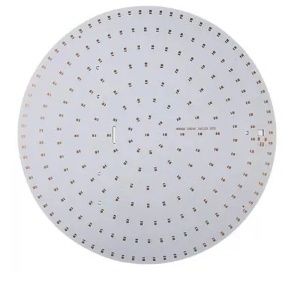

12W SMD 2835 LED PCB





SMD represents the surface instalaion device, surface instalation technology SMl has almost replaced Tongkoutechnology. However, Hongkong technology is still used for components that cannot be installed on the surface. Therefore, the surface paste LED PCB is very popular SMD is a compact component that can be placed directly on PcB. No holes, because the component does not have a lead or may have a smallead. At the end ofthe device, only smallcontacts are used to establish connections. Therefore, PcBA is veny compact. SMD uses back welding for welding. first, apply the weldingpaste to the bare plate. hen, pick up the component and place it in the need, Finay. the circuit board is directly installed by the circuit board to instal thecomponents directly without any trouble.





White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 0 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 1 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 2








Technical Parameters

MC PCB Capability

Item

Standard

Advance

Layers

1-2 layers

4-6 layers

Max Panel Size

400*800mm

600*1200mm

Min Panel Size

5*5mm

5*5mm

Board Thickness

0.6mm-4.0mm

4.0mm-7.0mm

Min. Line Width/Space

3mil/3mil

2mil/2mil

Min. Hole Size

0.1mm

0.075mm

Copper Thickness

0.5-4oz

15oz

Tolerance

Line Width

±10%

±5%

PTH Hole Size

±0.075mm

±0.05mm

NPTH Hole Size

± 0.05mm

±0.025mm

Hole Position

±0.05mm

±0.025mm

Outline

±0.1mm

± 0.075mm

Board Thickness

±10%

±5%

Thermal Conductivity

1W/mk, 2W/mk, 3w/mk

5W/mk, 8W/mk

Impedance Control

± 10%

± 8%

Bow and Twist

0.75%

0.50%

Board Material

Al Base, Cu Base, Fe Base, Ceramic Base

Surface Finish

HAL(with Pb free), Plated Ni/Au, ENIG, Immersion Tin,Immersion Ag OSP etc.

Solder Mask

Yellow, Red, White, Black, Blue, Green, Grey,etc.

Legend Color

White, Black, Yellow Grey, Sliver Grey, etc.

Certification

UL, IATF16949, ISO, RoHs & Reach




One-Stop PCBs Solution



White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 3 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 4 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 5 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 7 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 8 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 9 White SMD 2835 LED Aluminum PCB Board 12W IATF16949 Certificated 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
