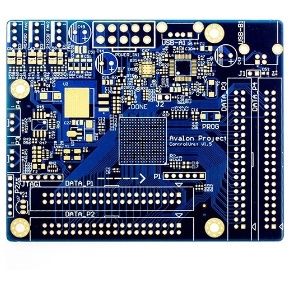

Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom

Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
18 Layer
Material:
Taconic RF-35
Thickness:
2.5mm
Min. Line Width/Space:
0.1/0.1mm
Copper Thickness:
2.5OZ
Surface Treatment:
Immersion Gold
Application:
Radar
Certificate:
UL & IPC Standard & ISO
Highlight:

Taconic RF35 High Frequency PCB

,

Taconic High Frequency PCB

,

Taconic RF35 multilayer printed circuit board

Product Description



Taconic RF-35 High Frequency Board



What's Taconic RF-35?



Taconic RF-35​​ is a high-performance ​​PTFE (Teflon)-based laminate​​ engineered for ​​RF/microwave and high-frequency PCB applications​​. Known for its ​​ultra-low signal loss and stable dielectric properties​​, it’s widely used in ​​5G, aerospace, radar, and satellite systems​​ where standard FR-4 or even some Rogers materials fall short.



Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 0 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 1 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 2



♦ ​​Key Features of Rogers PCBs​



✅ ​​Low Dielectric Loss (Df)​​ – Minimizes signal attenuation at high frequencies.
✅ ​​Stable Dielectric Constant (Dk)​​ – Consistent performance across temperatures/frequencies.
✅ ​​Excellent Thermal Management​​ – Handles high-power RF/microwave circuits.
✅ ​​Low Moisture Absorption​​ – Maintains performance in humid environments.
✅ ​​High-Frequency Suitability​​ – Ideal for ​​5G, radar, satellites, and mmWave systems​​.







♦ ​​​​Key Properties of Taconic RF-35​​



Property Value Importance
​Dielectric Constant (Dk)​ 3.5 ± 0.05 @ 10 GHz Ensures consistent impedance control
​Dissipation Factor (Df)​ 0.0018 @ 10 GHz Minimizes signal loss at high frequencies
​Thermal Conductivity​ 0.6 W/mK Better heat dissipation than FR-4
​Moisture Absorption​ < 0.02% Stable performance in humid environments
​Operating Temperature​ -55°C to +260°C Reliable in extreme conditions







♦ ​​​​​​Comparison with Competing Materials​​



Material Dk @ 10 GHz Df @ 10 GHz Cost Best For
​Taconic RF-35​ 3.5 0.0018 $$$ High-reliability RF/microwave
​Rogers RO4350B​ 3.48 0.0037 $$ Cost-sensitive RF designs
​PTFE (Generic Teflon)​ 2.1 0.0004 $$$$ Ultra-low-loss mmWave
​FR-4​ 4.3–4.8 0.02 $ Low-frequency, non-RF use







Technical Parameters



Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 3 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 4 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 5 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 7 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 8 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 9 Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
