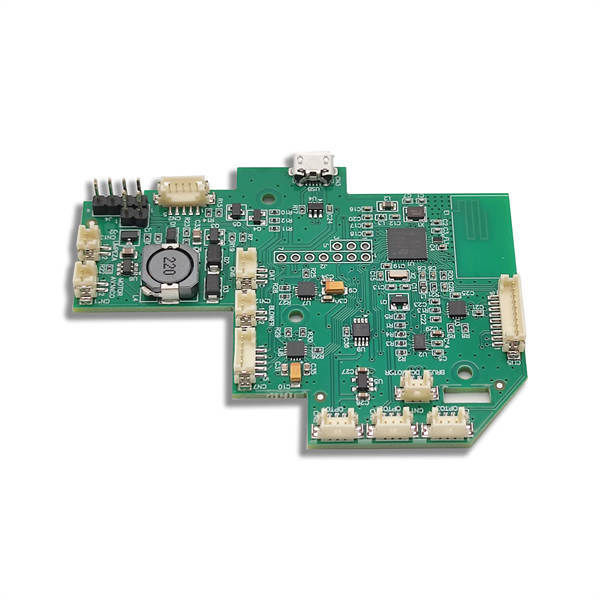

SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment

SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m²PCB per Month
Detail Information
Layer:
12 L
Material:
FR4
Thickness:
1.8mm
Min. Component Size:
01005
Pin Space:
0.2mm
Surface Finish:
ENIG
Assembly Process:
SMT
PCBA Testing:
X-ray,AOI Test,Functional Test
Application:
Diagnostic Equipment
Supply Ability:
200,000+ m²PCB per Month
Highlight:

SMT Medical PCBA

,

Medical PCBA assy

,

SMT printed circuit board assy

Product Description

SMT High Precision Patch Medical PCBA Fast Response Applied in Diagnostic Equipment







♦ What is Medical PCBA



Medical PCBA (Printed Circuit Board Assembly) serves as the essential core circuit system within medical equipment, playing a critical role in determining the overall performance, reliability, and functionality of the devices. Given its direct influence on operational accuracy and stability, it also significantly impacts patient safety by ensuring precise control, minimizing errors, and supporting compliance with stringent medical standards.





Features of Medical Diagnostic Equipment PCBA:

    • ​​High-precision sensor interface​​: supports micro-upgrade liquid precision control.
    • ​​Fast detection response​​: high-speed detection performance in seconds.
    • ​​Multi-channel data processing​​: supports multi-indicator simultaneous analysis



♦ Core Applications of Medical Diagnostic Equipment PCBA

    • ​​Molecular diagnosis​​: high-throughput PCR instrument, digital PCR microfluidic system.
    • ​​Biochemical detection​​: fully automatic biochemical analyzer, bedside POCT equipment.
    • ​​Immunodiagnosis​​: chemiluminescence analyzer, fluorescent immunochromatography equipment.



 ♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Solution Including:



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment 0

DIP

SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment 2 SMT Technology SMT High Precision Medical PCBA Printed Circuit Board Assy For Diagnostic Equipment 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
