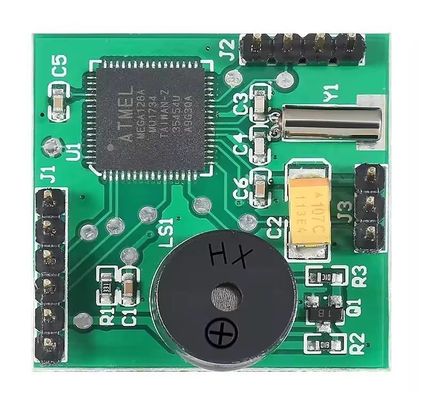

SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment

SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
2 L
Min. Component Size:
0402
Board Thickness:
1.0 Mm
Surface Finish:
ENIG
Pin Space:
0.1mm
Application:
Medical
Testing Method:
Flying Probe, ICT, Functional Test
Supply Ability:
200,000+ m² PCB per Month
Highlight:

SMT quick turnaround pcb assembly

,

DIP quick turnaround pcb assembly

,

oem circuit boards THT

Product Description



High Quailty PCB Board Assembly(SMT/DIP/THT) for Medical Equipment





What is PCB Board Assembly?






PCB Board Assembly (PCBA)​​ is the process of mounting and soldering electronic components onto a bare ​​Printed Circuit Board (PCB)​​ to create a functional electronic device. It transforms an empty PCB into a working circuit by attaching components like resistors, capacitors, ICs, and connectors.







♦ ​​Key Stages of PCB Assembly​

1. Solder Paste Application​​

    • A ​​stencil​​ aligns with the PCB, and ​​solder paste​​ (a mix of tiny solder particles and flux) is applied to pads where components will be placed.

​​2. Component Placement​​

    • ​​Surface Mount Technology (SMT)​​: Automated ​​pick-and-place machines​​ accurately position tiny SMD components (e.g., resistors, ICs) onto the solder paste.
    • ​​Through-Hole Technology (THT)​​: Larger components (e.g., connectors, transformers) are manually or automatically inserted into drilled holes.

​​3. Soldering​​

    • ​​Reflow Soldering (for SMT)​​: The PCB passes through a ​​reflow oven​​, melting the solder paste to form strong electrical connections.
    • ​​Wave Soldering (for THT)​​: The board moves over a wave of molten solder to bond through-hole components.

​​4. Inspection & Testing​​

    • ​​Automated Optical Inspection (AOI)​​: Cameras check for missing/misaligned parts or soldering defects.
    • ​​In-Circuit Testing (ICT)​​: Electrical probes verify circuit functionality.
    • ​​Functional Testing​​: The assembled PCB is powered on to ensure it works as designed.

​​5. Conformal Coating (Optional)​​

    • A protective coating (e.g., silicone, acrylic) may be applied to shield against moisture, dust, and corrosion.





♦ ​​Types of PCBA Services​​



Type Description Best For
​Turnkey PCBA​ Full service—supplier handles PCB fabrication, component sourcing, assembly, and testing. Startups, companies wanting hassle-free production.
​Consigned PCBA​ Customer provides components; assembler only does placement/soldering. Cost-sensitive projects with existing parts inventory.
​Partial Turnkey​ Hybrid approach—some parts supplied by customer, others by the assembler. Customized builds with specialty components.









♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Electronic Manufacturing Including



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment 0

DIP

SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment 2 SMT Technology SMT DIP THT Quick Turnaround Pcb Assembly Oem Circuit Boards For Medical Equipment 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
