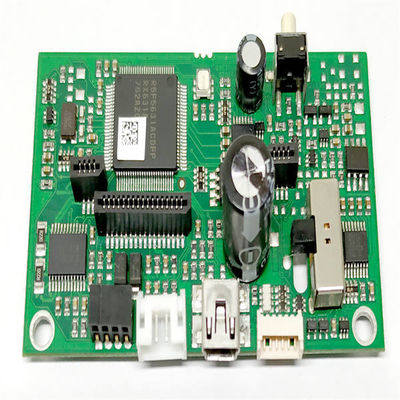

SMT Automotive PCBA Quick Turn Circuit Boards 2.5mm For ADAS Controller

SMT Automotive PCBA Quick Turn Circuit Boards 2.5mm For ADAS Controller

MOQ: 1
Price: Contact our PCB engineer
Payment Terms: T/T
Detail Information
Layer:
20L
Board Thickness:
2.5mm
Min. Component Size:
0201
Drilling Size:
Min 0.0078”(0.2mm)
Pin Space:
0.1mm
Pcba Testing:
X-ray,AOI Test,Functional Test
Service:
PCBA/SMT/DIP / PCB Layout And Design
Application:
ADAS Controller
Highlight:

SMT Automotive PCBA

,

2.5mm Automotive PCBA

,

2.5mm quick turn circuit boards

Product Description

​Automotive PCBA Safety Assist PCBA Multi-sensor Fusion for ADAS Controller





♦ What's Automotive PCBA?



Automotive PCBA, or automotive printed circuit board assembly, is a finished product formed by assembling electronic components onto automotive printed circuit boards (PCBs) through welding and other processes. It is the core carrier of automotive electronic systems and is widely used in automotive power systems, body control, safety assistance, infotainment, and autonomous driving systems, such as engine control units, battery management systems, and anti-lock braking systems.





♦ Features of Automobile Safety Auxiliary PCBA

  • High reliability: high and low temperature resistance/vibration resistance, adaptable to harsh environment.
  • Fast response: millisecond-level processing, precise control of braking/steering.
  • High integration: multiple modules in one, saving space.
  • Strong anti-interference: excellent EMC design, ensuring system stability.
  • .Flexible expansion: support function customization and upgrade.
  • Safety redundancy: fault self-checking + backup mechanism to ensure basic functions.



♦ Types of Automotive PCB Assemblies:



​​Application​​ ​​PCB Requirements​​ ​​Examples​​
​​Engine Control Unit (ECU)​​ High-temperature resistance, EMI shielding Fuel injection, ignition timing
​​Infotainment System​​ High-speed signal integrity, multilayer Touchscreens, GPS, Bluetooth
​​ADAS (Radar/LiDAR)​​ RF/microwave PCBs, low-loss materials Collision avoidance, adaptive cruise control
​​EV Battery Management (BMS)​​ High-current PCBs, thermal management Cell balancing, charge monitoring
​​LED Lighting​​ Aluminum PCBs for heat dissipation Headlights, interior lightin







♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm
