Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment

Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
6 Layer
Board Thickness:
0.12 Mm
Material:
PI + PET
Min Line Width/Spacing:
0.1/0.1 Mm
Solder Mask:
Brown
Surface Treatment:
OSP
Application:
High-end Electronic Products
Certificate:
UL,IATF16949,ISO&Reach
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Shock Resistant flexible pcb fabrication

,

Brown flexible pcb fabrication

,

Brown rigid pcb board

Product Description

Durable And Shock-resistant Flexible PCB Brown Soft Board Industrial Automation Equipment





♦ What is flexible PCB



​Flexible PCB (FPC)​​, also called a ​​"soft board"​​ or ​​flexible circuit​​, is a type of printed circuit board (PCB) made from ​​flexible insulating materials​​, such as ​​polyimide (PI)​​ or ​​polyester (PET)​​, instead of rigid fiberglass (FR4). This unique construction allows FPCs to ​​bend, fold, and twist​​ without breaking, enabling ​​compact, lightweight, and space-saving designs​​ in modern electronics.

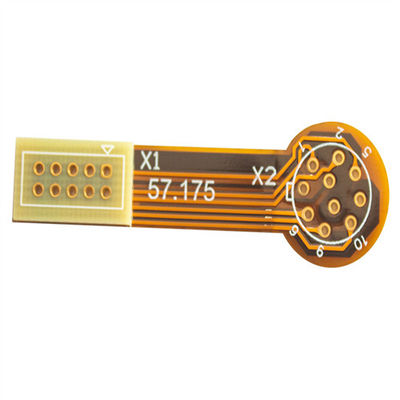

Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 0 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 1 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 2



Features of flexible PCB

    • ​​​Bendable and foldable​​: The base material is a flexible plastic (such as polyimide), which can be bent and rolled at will to adapt to complex space designs (such as folding mobile phone screens).
    • ​​Thin and space-saving​​: Thinner and lighter than traditional hard boards (thickness is about 0.05-0.3mm), suitable for small devices such as mobile phones and headphones.
    • ​​Reduce the number of parts​​: Directly replace traditional cables and connectors, simplify assembly, and reduce costs.
    • ​​Durable and vibration-resistant​​: There are no hard connection points, good shock resistance, suitable for moving equipment such as cars and robots.



Applications of flexible PCB



    • ​​Smartphones & Wearables​​ (foldable screens, flexible displays);

    • ​​Laptops & Tablets​​ (hinge connections, battery flex cables);

    • ​Automotive Electronics​​ (sensors, lighting, dashboard controls);

    • ​​Medical Devices​​ (implantable electronics, diagnostic equipment);

    • ​​Aerospace & Defense​​ (lightweight, high-reliability circuits).





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm







One-Stop PCBs Solution



Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 3 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 4 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 5 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 7 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 8 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 9 Shock Resistant Rigid Flexible PCB Fabrication Brown Soft Board For Industrial Automation Equipment 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry;
    • Perfect after-sales service system;
    • From prototype to mass production
