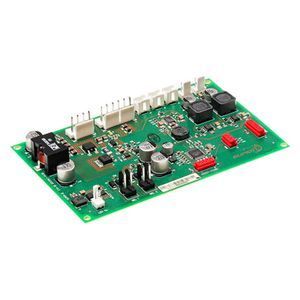

Power Management Industrial PCB Assembly FR4 Tg180 For Consumer Electronics

MOQ:	1
Payment Terms:	T/T
Supply Ability:	Post-soldering 700,000 points/day

Detail Information

Product Description

Detail Information

Certification:

ISO, UL, IPC, Reach

Layer:

10 Layer

Material:

FR4 Tg180

Thickness:

2.0mm

Pin Space:

0.2mm

Min. Component Size:

01005

Min. Hole Size:

0.1mm

Assembly Process:

SMT+DIP

Application:

Power Management

Supply Ability:

Post-soldering 700,000 points/day

Highlight:

FR4 industrial pcb assembly

Tg180 industrial pcb assembly

Tg180 consumer electronics pcb

Product Description

Power Management Industrial PCBA High Efficiency Power Conversion

♦ What Is Industrial Control PCBA?

Industrial Control PCBA is a specialized printed circuit board assembly designed for industrial control applications. It is used to build critical components such as control panels, programmable logic controllers (PLCs), and motor drives in industrial systems.

♦ Features of Power Management PCBA

Efficient conversion: high power conversion efficiency (over 90%), reducing heat and power consumption.
Multiple voltage outputs: can provide multiple stable voltages at the same time (such as 5V/12V/24V).
Full protection: multiple protection functions such as overvoltage/overcurrent/short circuit/overheating.
Quick response: can instantly adapt to changes in equipment power demand.
Small and compact: small size, suitable for internal installation of various devices.
Full charging protocol: supports fast charging protocol, charging is fast and safe.

♦ Applications:

Manufacturing Automation: Automotive welding/assembly robots, electronic SMT placement machines, food packaging equipment, etc., to achieve high-precision production.
Robots: Industrial robotic arms, AGV carts, collaborative robots, etc., to control movement and interaction.
Energy and Power: Wind power/photovoltaic inverters, power grid monitoring, energy storage battery management (BMS), etc.
Petrochemical/Metallurgy: Pumping units, reactor controls, rolling mill equipment, etc., to adapt to high temperature and high pressure environments.

♦ Technical Parameters

PCB Assembly Capability
Item				Normal	Special
SMT Assembly	PCB(used for SMT) specification	Length and Width( L* W)	Minimum	L≥3mm, W≥3mm	L＜2mm
		Length and Width( L* W)	Maximum	L≤800mm, W≤460mm	L ＞ 1200mm, W＞500mm
		Thickness( T)	Thinnest	0.2mm	T＜0.1mm
		Thickness( T)	Thickest	4 mm	T＞4.5mm
	SMT components specification	Outline Dimension	Min size	0201(0.6mm*0.3mm)	01005(0.3mm*0.2mm)
			Max size	200 * 125	200 * 125
			component thickness	T≤15mm	6.5mm＜T≤15mm
		QFP,SOP,SOJ (multi pins)	Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
		CSP/ BGA	Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly	PCB specification	Length and Width( L* W)	Minimum	L≥50mm, W≥30mm	L＜50mm
		Length and Width( L* W)	Maximum	L≤1200mm, W≤450mm	L≥1200mm, W≥500mm
		Thickness( T)	Thinnest	0.8mm	T＜0.8mm
		Thickness( T)	Thickest	3.5mm	T＞2mm

♦ One-Stop PCBA Solution


PCBA Prototype	Industrial Control PCBA	Telecom PCBA	Medical PCBA

Automotive PCBA	Consumer Electronic PCBA	LED PCBA	Security PCBA

♦ Advantages of DQS Team

On-time Delivery:

- Owned PCBA factories 15,000 ㎡
- 13 fully automatic SMT lines
- 4 DIP assembly lines

2. Quality Guaranteed:

- IATF, ISO, IPC, UL standards
- Online SPI, AOI, X-Ray Inspection
- The qualified rate of products reach 99.9%

3. Premium Service:

- 24H reply your inquiry
- Perfect after-sales service system
- From prototype to mass production

Tags:

pcb fabrication and assembly

smt pcba manufacturing

consumer electronics pcb
