Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM

Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
14 Layer
Material:
Polyimide
Thickness:
1.5mm
Copper Thickness:
4OZ
Surface Treatment:
ENIG
Max. Line Width/Space:
2.54/1.27mm
Application:
Automotive Electronics
Certificate:
UL,IATF16949,ISO&Reach
Highlight:

Polyimide Thick Copper PCB

,

Thick Copper PCB Substrate

,

Polyimide pcb fabrication service

Product Description

High-performance Substrate Polyimide Thick Copper PCB Multilayer Copper Stacked PCB Board



♦ What is Thick copper PCB




Thick copper PCB refers to a circuit board formed by bonding a layer of copper foil with a thickness of 2 ounces (oz, about 62.5 microns) or more to FR-4 or other substrates during the printed circuit board (PCB) manufacturing process.

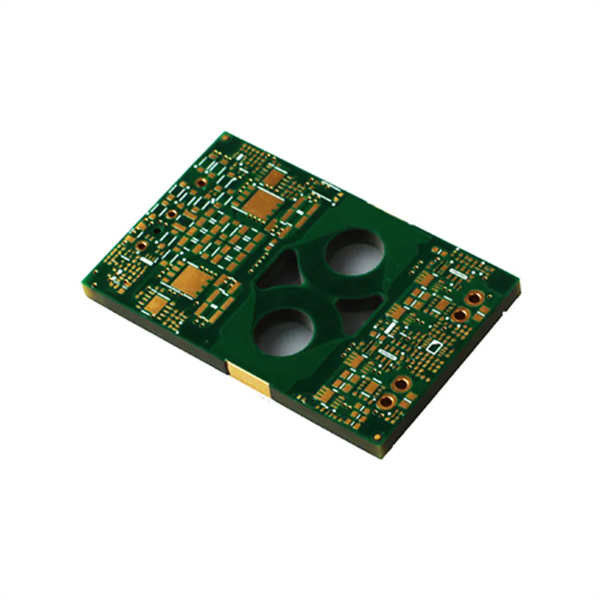

Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 0 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 1 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 2



Features of Thick Copper PCB

    • ​​​​Large current carrying capacity: copper thickness ≥3oz, can pass 100A+ current, low temperature rise.

    • ​​Strong heat dissipation: high thermal conductivity, heat dissipation efficiency increased by 5 times+, temperature rise reduced by 10-15℃.

    • ​​High mechanical strength: bending resistance increased by 50%, high temperature vibration resistance, adaptable to harsh environments.

    • ​​Electrical stability: low impedance, low loss, low risk of delamination at high temperature.

    • ​​Flexible design: supports wide line width (≥100mil) and multi-layer thick copper stacking.

    • ​​Complex process: etching/drilling is difficult, yield rate is 85%-90%.

    • ​​High cost: material + processing premium is 30%-50%, and the unit price is high.



Applications of Thick Copper PCB

    • ​​Power supply equipment: high-power switching power supply, inverter, UPS, etc.
    • ​​Automotive electronics: electric vehicle motor controller, on-board charger, battery management system.
    • ​​Industrial control: motor driver, servo controller, welding equipment.
    • ​​New energy field: photovoltaic inverter, wind power converter.
    • High-power LED lighting: LED driver board that needs heat dissipation and current carrying



Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 3 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 4 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 5 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 7 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 8 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 9 Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB
