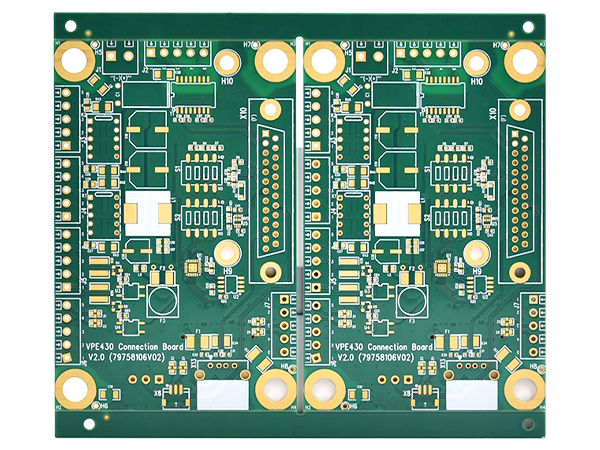

OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized

OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
16 Layer
Base Material:
FR4 Tg170
Thickness:
2.0mm
Copper Thickness:
2OZ
Board Size:
Customized
Min. Line Width/Space:
0.10/0.10mm
Surface Treatment:
ENIG
Certificate:
UL,IATF16949,ISO&Reach
Highlight:

fr4 high tg PCBA

,

2.0mm fr4 high tg

,

2.0mm pcba circuit board

Product Description

Multilayer High Temperature Resistant Environmentally Friendly High Tg PCB





What's High-Tg?



Tg refers to the glass transition temperature. When the substrate is exposed to high temperatures, it will change from a glass state to a rubber state. High Tg PCB refers to a circuit board that can withstand higher temperatures without deforming or turning into rubber. Materials with a glass transition temperature above 170°C are usually classified as high Tg PCBs, those above 150°C are mid-range Tg PCBs, and those above 130°C are low Tg PCBs.



OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 0 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 1 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 2





♦ Features of High-Tg PCB?

    • Good heat resistance​​: The Tg value of ordinary PCB is generally 130-140°C, and the actual operating temperature may be lower than 100°C due to the influence of thermal expansion coefficient; while the Tg value of high Tg PCB exceeds 170°C, and the thermal expansion coefficient is between 5 ppm/°C and 8 ppm/°C, which can operate at higher temperatures and is less affected by heat.
    • High mechanical strength​​: It can withstand greater external forces and stresses, maintain structural stability in complex environments, and reduce the risk of damage.
    • Strong chemical stability​​: It has higher tolerance to chemical substances and can maintain stable performance in harsh chemical environments.
    • Good signal integrity​​: In high-frequency applications, it can provide better signal transmission and reduce signal loss and distortion.



♦ Application fields of High-Tg PCB

    • Communication field: widely used in wireless base stations, optical fiber communications, satellite communications and other equipment, supporting high-speed signal transmission, adapting to high temperature and high frequency environments, and ensuring stable operation of communication networks.
    • Automotive field: used in vehicle computers, engine control units, new energy battery management systems, etc., to withstand high temperatures, vibrations and complex environments, and improve the reliability of automotive electronic systems.
    • Industrial field: suitable for industrial automation equipment, PLCs, converters, etc., can work stably in high temperature, high humidity, and strong vibration environments, ensuring long-term and reliable operation of industrial equipment.



Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 3 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 4 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 5 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 7 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 8 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 9 OEM Multilayer Fr4 High TG PCBA Circuit Board 2.0mm Customized 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB
