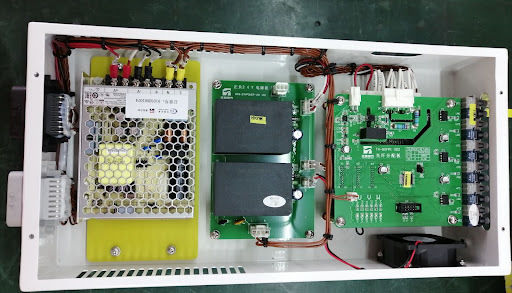

OEM full Turnkey FR4 PCB Box Build Assembly Services For Energy Systems​​

OEM full Turnkey FR4 PCB Box Build Assembly Services For Energy Systems​​

MOQ: 1
Price: Contact us
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO, UL, IPC, Reach
Layer:
2-64 Layer
Material:
FR4
Board Thickness:
0.2-10mm
Surface Finish:
ENIG
Pin Space:
0.25mm
Application:
Energy Systems​​
Highlight:

FR4 pcb box build assembly services

,

OEM pcb box build assembly services

,

full Turnkey box build pcb

Product Description


Turnkey Box Build Assembly For Energy Systems​​



♦ What Is Turnkey Box Build Assembly?


Turnkey Box Build Assembly​​ is a comprehensive ​​end-to-end manufacturing service​​ that transforms raw components into fully functional electronic systems, ready for immediate use. It covers every step from ​​PCB assembly and mechanical integration to final testing and packaging​​—essentially delivering a "plug-and-play" product to your doorstep.



 Key Features of Turnkey Box Build Assembly:

  1. ​​Full-Scope Integration​​

    • Combines ​​PCB assembly (SMT/THT), mechanical enclosure mounting, wire harness/cable assembly, firmware loading, and system testing​​ into one seamless process.
  2. ​​Supply Chain Management​​

    • The vendor ​​sources all components​​ (PCBs, housings, connectors, etc.), eliminating the need for multi-supplier coordination.
  3. ​​Testing & Compliance​​

    • Includes ​​functional testing (FCT), environmental stress testing, and certification support​​ (e.g., UL, CE, FCC) to meet industry standards.
  4. ​​Scalability​​

    • Supports ​​prototyping (NPI), low-volume, or high-volume production​​ with consistent quality.



​​♦ Why Choose Turnkey Box Build?

1. Time & Cost Efficiency​​

    • ​​Single-point responsibility​​ reduces logistical headaches and speeds up time-to-market.
    • Ideal for companies ​​without in-house manufacturing​​ (startups, OEMs, or global brands).

​​2. Risk Mitigation​​

    • ​​Design for Manufacturing (DFM) feedback​​ ensures compatibility between PCBs, enclosures, and cables.
    • Avoids mismatches (e.g., PCB-to-housing fit, thermal management).

​​3. Compliance Ready​​

    • Vendors handle ​​safety, EMC/EMI, and industry-specific certifications​​ (e.g., ISO 13485 for medical devices).

​​4. End-to-End Accountability​​

    • One vendor manages ​​quality control, troubleshooting, and delivery​​, simplifying accountability.


♦ Technical Parameters


 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm





 Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines


     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%


     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production



Turnkey Box Build Assembly​​ is the ultimate solution for companies seeking ​​a hassle-free path from concept to market-ready product​​. By outsourcing full-system integration, businesses can focus on ​​innovation and growth​​ while ensuring quality and compliance.

Need a ​​customized quote​​ or ​​technical consultation​​? Contact us via email : info@dqspcba.com
