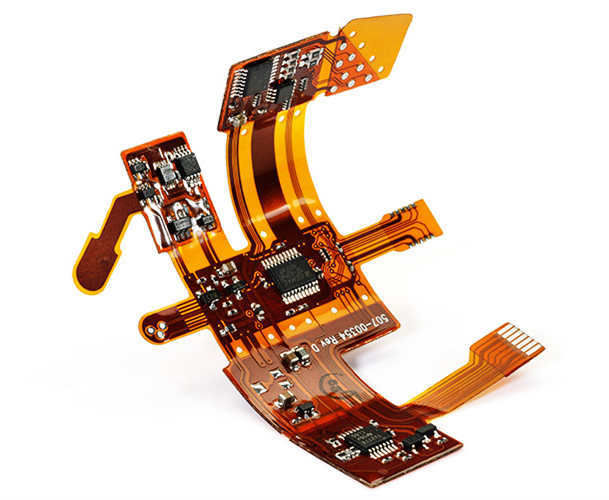

OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices

OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m²PCB per Month
Detail Information
Layer:
16 L
PCB Type:
Rigid-flexible
Material:
FR4
Thickness:
1.8mm
Min. Component Size:
01005
Pin Space:
0.2mm
Surface Finish:
ENIG
PCBA Testing:
X-ray,AOI Test,Functional Test
Application:
Wearable Health Monitoring Devices
Supply Ability:
200,000+ m²PCB per Month
Highlight:

OEM pcba circuit board

,

Flexible pcba circuit board

,

OEM assemble pcbs

Product Description

Flexible Circuit Board Medical PCBA Creates Wearable Health Monitoring Devices



♦ What is Medical PCBA



Medical PCBA (Printed Circuit Board Assembly) serves as the essential core circuit system within medical equipment, playing a critical role in determining the overall performance, reliability, and functionality of the devices. Given its direct influence on operational accuracy and stability, it also significantly impacts patient safety by ensuring precise control, minimizing errors, and supporting compliance with stringent medical standards.





♦ Features of PCBA for Wearable Health Monitoring Equipment

    • ​​Ultra-long battery life: ultra-low power consumption design, supporting standby time of more than 30 days.
    • ​​Flexible wearable structure: using flexible circuit board technology, perfectly adapting to body curves and dynamic bending scenes.
    • ​​Multi-parameter integrated monitoring: supporting simultaneous collection and analysis of multiple physiological indicators such as heart rate, blood oxygen, and body temperature



Typical Application Scenarios

    • Daily health monitoring equipment: smart bracelets, sports trackers and other all-weather wearable devices.
    • Medical-grade vital signs monitoring: wireless body temperature stickers, sleep breathing monitoring belts and other clinical-grade health monitoring products.



 ♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Solution Including:



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices 0

DIP

OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices 2 SMT Technology OEM Flexible PCBA Circuit Board Assemble For Wearable Health Monitoring Devices 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
