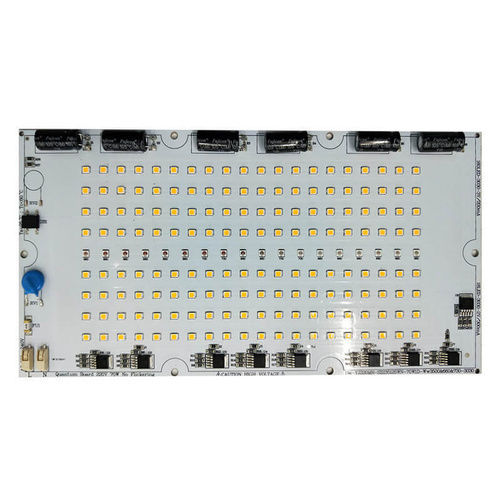

ODM Street Light Led Lamp PCB Assembly Circuit Boards Heat Dissipation

Efficient Heat Dissipation Lighting PCB Assembly Suitable for High-power Lamps

♦ What is Lighting PCB Assembly?

​​Lighting PCB Assembly is a specialized electronic assembly that integrates circuit boards with lighting components (e.g., LEDs, drivers) and control systems. It serves as the core functional unit in diverse lighting applications, combining electrical connectivity, thermal management, and intelligent control to enable efficient, durable, and feature-rich lighting solutions.

♦ Features of Lighting PCBA:

• • ​​Intelligent Control​​: Equipped with smart sensing (e.g., auto on/off via human proximity detection) and remote functionality, including dimming, scheduling, and scene presets. Enables full-home smart control via mobile app or voice commands.

  • ​​Dimming & Speed Regulation​​: Delivers precise light intensity and device speed adjustment for optimal comfort.

  • ​High Sensitivity​​: Advanced sensor PCBAs ensure rapid and accurate human motion detection.

  • ​​Elegant Design​​: Aesthetically optimized to seamlessly integrate with diverse interior environments.

♦ Applications of Lighting PCBA:

• • Precise structure: Contains core components such as LED lights, power cords, and controllers, and the brightness and color of LED lights are precisely controlled by the controller.
  • ​​Various substrates: Common substrate materials include aluminum substrates, copper substrates, iron substrates, and fiberglass substrates. Aluminum substrates have excellent thermal conductivity and are suitable for high-power LED lighting fixtures, which is conducive to efficient heat dissipation and improves the stability and life of the lamps.
  • ​​Excellent performance: SMT (surface mount technology) is used to accurately weld LED lamp beads, which has the characteristics of high brightness, stable performance, long service life, energy saving, and environmental protection

♦ Technical Parameters



PCBA Prototype	Industrial Control PCBA	Telecom PCBA	Medical PCBA
Automotive PCBA	Consumer Electronic PCBA	LED PCBA	Security PCBA





♦ Advantages of DQS Team

1. On-time Delivery:

• • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines



     2. Quality Guaranteed:

• • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%



     3. Premium Service:

• • 24H reply your inquiry
  • Perfect after-sales service system
  • From prototype to mass production
