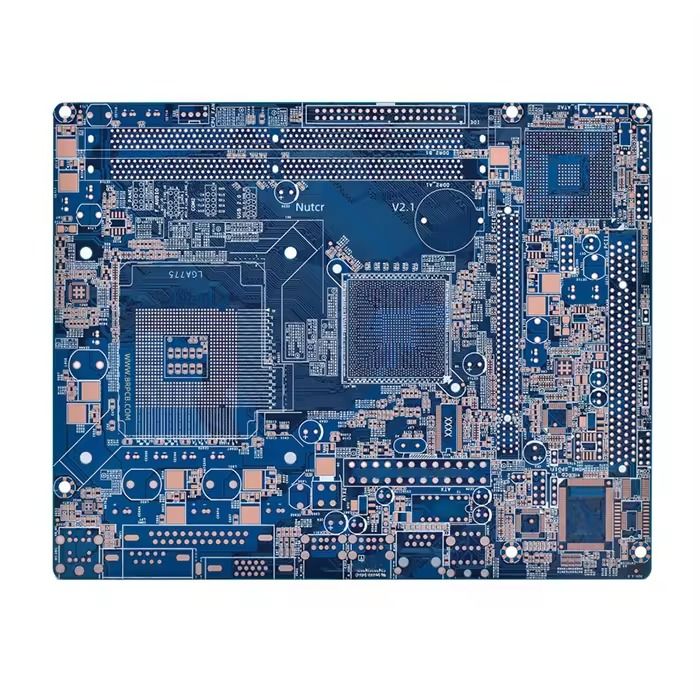

ODM High Density Interconnect HDI PCB Board 18 layer For Consumer Electronics

Multi-level Blind Via HDI PCB AOI Inspection for Consumer Electronics

♦ What is HDI PCB?

HDI (High Density Interconnect) PCB is a high-density circuit board constructed by micro blind buried via technology, and uses a build-up process to achieve three-dimensional interconnection of inner and outer layer circuits. The core of its manufacturing lies in the use of laser drilling and electrochemical hole filling processes to form micron-level conductive paths between layers, so that each layer of circuit can be vertically connected without relying on traditional through holes. Ordinary HDI uses a single-layer structure, while high-end products are stacked through multiple layers, combined with advanced technologies such as stacked holes and laser direct forming, to further improve circuit density and electrical performance.

♦ Characteristics of HDI PCB

• • High-density interconnection: micro vias (<0.15mm), fine lines, and thin-layer structures achieve high integration.

  • Miniaturization and lightweight: Reduce the size of components and wiring to help make equipment lighter and thinner.

  • Excellent signal transmission: short path, low loss, and low latency to ensure signal integrity and high-speed transmission.

♦ Applications of HDI PCB

• • Medical field: used in pacemakers, CT scanners, medical imaging equipment, etc., to meet the requirements of equipment miniaturization, high performance and high reliability. For example, the utilization rate of HDI PCB in high-end medical equipment exceeds 70%.

  • Aerospace: used in aircraft avionics systems, satellite communications, navigation systems, etc., to meet the high performance and high reliability requirements of equipment in extreme environments. For example, the aircraft autopilot system uses HDI PCB to ensure flight safety.

  • Industrial control: used in programmable logic controllers (PLCs), industrial robot control systems, etc., to adapt to complex industrial environments and ensure precise control of industrial production.

♦ Technical Parameters

♦ One-Stop PCBs Solution



PCB Prototype	Felx PCB	Rigid-Flex PCB	Ceramic PCB
Heavy Copper PCB	HDI PCB	High Frequency PCB	High TG PCB







♦ Advantages of DQS Team

1. On-time Delivery:

• • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines



     2. Quality Guaranteed:

• • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%



     3. Premium Service:

• • 24H reply your inquiry
  • Perfect after-sales service system
  • From prototype to mass production
