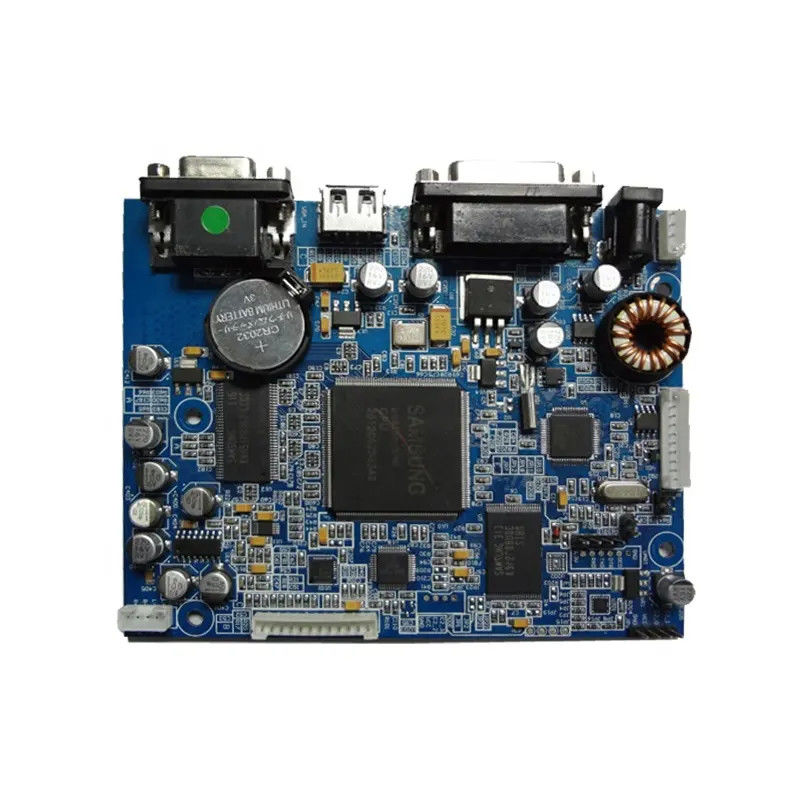

ODM 12 Layer Fast Turnaround PCBA Assy Printed Circuit Board for Automobile

ODM 12 Layer Fast Turnaround PCBA Assy Printed Circuit Board for Automobile

MOQ: 1
Price: Contact our PCB engineer
Payment Terms: T/T
Detail Information
Layer:
12 L
Min. Component Size:
0201
Board Thickness:
2.5mm
Surface Finish:
ENIG
Pin Space:
0.1mm
Application:
EV Battery Management (BMS)​​
Highlight:

12 Layer pcba assy

,

Fast Turnaround pcba assy

,

ODM fast turnaround pcb assembly

Product Description

12 Layer Automotive PCBA for EV Battery Management (BMS)​​





♦ What is Automotive PCBA for EV Battery Management (BMS)?



Automotive PCBA (Printed Circuit Board Assembly) for EV Battery Management Systems (BMS)​​ refers to the specialized electronic assemblies that monitor, control, and optimize the performance, safety, and lifespan of lithium-ion (or other) battery packs in electric vehicles (EVs).





♦ Key Functions of BMS PCBA in EVs:

1. Voltage & Current Monitoring​​

    • Measures individual cell voltages (e.g., 96+ cells in a Tesla pack).
    • Tracks charge/discharge current for ​​State of Charge (SOC)​​ estimation.

​​2. Temperature Sensing & Thermal Management​​

    • Uses ​​NTC/PTC thermistors​​ to detect overheating.
    • Triggers cooling systems (liquid/air) to prevent thermal runaway.

​​3. Cell Balancing (Active/Passive)​​

    • ​​Passive Balancing:​​ Burns excess energy via resistors (cheaper, less efficient).
    • ​​Active Balancing:​​ Transfers energy between cells (higher efficiency).

​​4. Fault Protection & Safety​​

    • Prevents:
      • ​​Overcharge​​ (can cause fire)
      • ​​Over-discharge​​ (reduces battery life)
      • ​​Short circuits​​ (isolates faulty cells)

​​5. Communication & Data Logging​​

      • ​​CAN bus / LIN bus​​ communication with the vehicle’s ECU.
      • Stores historical data for diagnostics (e.g., Tesla’s battery logs).



♦ BMS PCBA Design & Components:

​Component​ ​Role in BMS​ ​Example Parts​
​Microcontroller (MCU)​ Brain of BMS (runs algorithms) NXP S32K, TI Hercules, STM32
​AFE (Analog Front End)​ Measures cell voltages Texas Instruments BQ76PL536, LTC6811
​Isolation ICs​ Protects high-voltage circuits Silicon Labs Si823x, ADuM4160
​Current Sensor​ Measures pack current Hall-effect sensors (Allegro ACS712), Shunt resistors
​MOSFETs/Relays​ Controls charge/discharge Infineon OptiMOS, TE Connectivity relays
​Communication ICs​ CAN/LIN transceivers NXP TJA1042, Microchip MCP2562



♦ Types of Automotive PCB Assemblies:



​​Application​​ ​​PCB Requirements​​ ​​Examples​​
​​Engine Control Unit (ECU)​​ High-temperature resistance, EMI shielding Fuel injection, ignition timing
​​Infotainment System​​ High-speed signal integrity, multilayer Touchscreens, GPS, Bluetooth
​​ADAS (Radar/LiDAR)​​ RF/microwave PCBs, low-loss materials Collision avoidance, adaptive cruise control
​​EV Battery Management (BMS)​​ High-current PCBs, thermal management Cell balancing, charge monitoring
​​LED Lighting​​ Aluminum PCBs for heat dissipation Headlights, interior lightin







♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm
