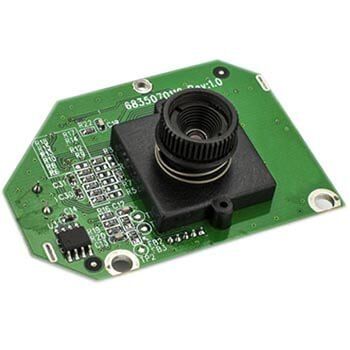

Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized

Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Detail Information
Layer:
4L
Material:
FR-4
Min. Component Size:
0201
Board Thickness:
1.0mm
Pin Space:
0.1mm
Surface Finish:
HASL/ENIG/OSP/Immersion Silver
Testing Method:
Flying Probe, ICT, Functional Test
Application:
Smart Cameras
Highlight:

Multiple communication circuit board

,

communication circuit board PCBA

,

Customized printed circuit board pcba

Product Description

Customizable Support Multiple Communication Protocols Electronic PCBA for Smart Cameras



What is Consumer Electronics PCBA?



Consumer Electronics PCBA (Consumer Electronics Printed Circuit Board Assembly) is the core circuit board of consumer electronic products (such as mobile phones, TVs, headphones, etc.). Components are integrated on the PCB through SMT patch and DIP plug-in processes to achieve device function control and data processing.



Features of Smart Cameras PCBA

    • High-performance computing power: integrated AI chip, supports 4K video processing and face recognition and other intelligent analysis.

    • High-definition image quality: optimize video encoding technology, output clear and delicate monitoring images.

    • Intelligent recognition: AI algorithm empowerment, realize motion detection, abnormal behavior analysis and other functions.

    • Multi-protocol networking: support Wi-Fi/Bluetooth/Ethernet, realize remote monitoring and cloud storage
      Low power design: high-efficiency conversion, extend device life.

    • Stable and reliable: strong anti-interference, adapt to high temperature, humidity and other complex environments
      Flexible expansion: modular design, support function customization and upgrade



Applications of Consumer Electronics PCBA

    • Mobile phones/tablets: integrated chips, communication modules, support high-performance computing and portable design.
    • Computers/laptops: motherboard core, carrying processors, memory and multi-interface functions.
    • Audio-visual equipment: signal processing and interactive control of TVs, game consoles, and speakers.
    • Smart home: communication and logic control of smart speakers, thermostats and other devices.
    • Wearable devices: miniaturized and highly integrated solutions for smart watches and health monitoring equipment.
    • Photographic imaging: image processing and storage control of cameras and camcorders.
    • Home appliances: functional realization of smart home appliances such as microwave ovens and washing machines.



♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Electronic Manufacturing Including



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized 0

DIP

Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized 2 SMT Technology Multiple Communication Circuit Board Electronic Printed Circuit Board PCBA Customized 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
