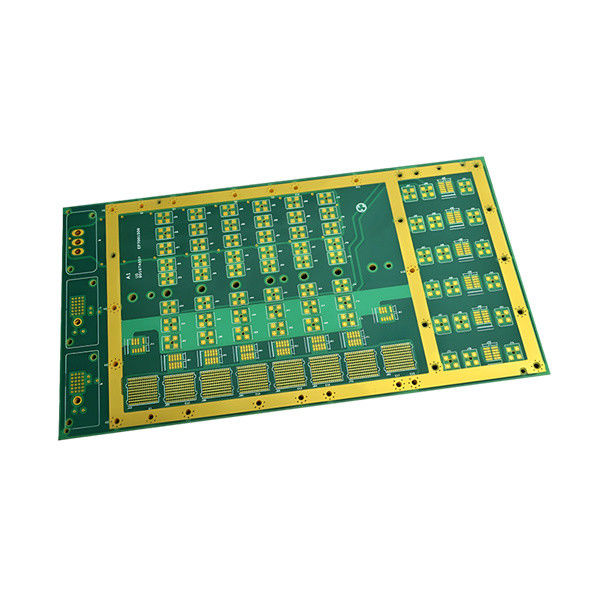

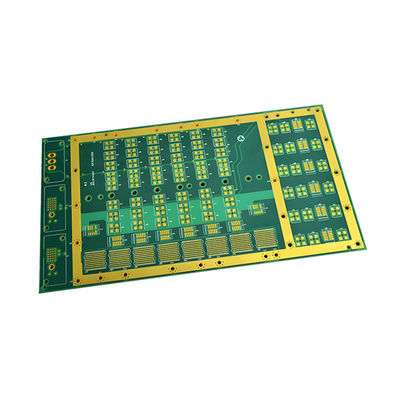

Multilayer Board High Frequency PCB Low Dielectric Constant CT Medical Equipment
♦ What's High-Frequency PCB?
High-frequency PCB is a special circuit board designed for high-frequency electromagnetic scenes, suitable for high-frequency (frequency>300MHz, corresponding to wavelength <1 meter) and microwave (frequency>3GHz, corresponding to wavelength <0.1 meter) fields. It is based on microwave substrate copper clad laminate, combined with some processes of ordinary rigid circuit board manufacturing, or made through special processing.
♦ Features of High-Frequency PCB
Special materials: use low Dk/Df substrates such as PTFE, ceramic filling materials, LCP, etc. to reduce signal attenuation (PTFE is the first choice for 5G).
Precise transmission: impedance control of ±5%, micron-level line accuracy, 30%+ loss reduction in millimeter wave band, and excellent phase stability.
Complex process: laser drilling accuracy of ±3μm, plasma etching instead of pickling, multi-layer board integrated passive devices, and high-yield production in dust-free workshops.
♦ Applications of High-Frequency PCB
♦ Technical Parameters
Item |
Specification |
Laers |
1~32 |
Board thickness |
0.1mm-7.0mm |
Material |
FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size |
32"×48"(800mm×1200mm) |
Min hole size |
0.075mm |
Min line width |
3mil(0.075mm) |
Surface finish |
OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness |
0.5-7.0OZ |
Soldermask |
Green/Yellow/Black/White/Red/Blue |
Silkscreen |
Red/Yellow/Black/White |
Min PAD |
5mil(0.13mm) |
Inter package |
Vacuum |
Outer package |
Carton |
Outline tolerance |
±0.75mm |
Hole tolerance |
PTH:±0.05 NPTH:±0.025 |
Certificate |
UL,ISO 9001,ISO14001,IATF16949 |
Special request |
Blind hole+Gold finger + BGA |
Material Suppilers |
Shengyi, KB, Nanya, ITEQ,etc. |
